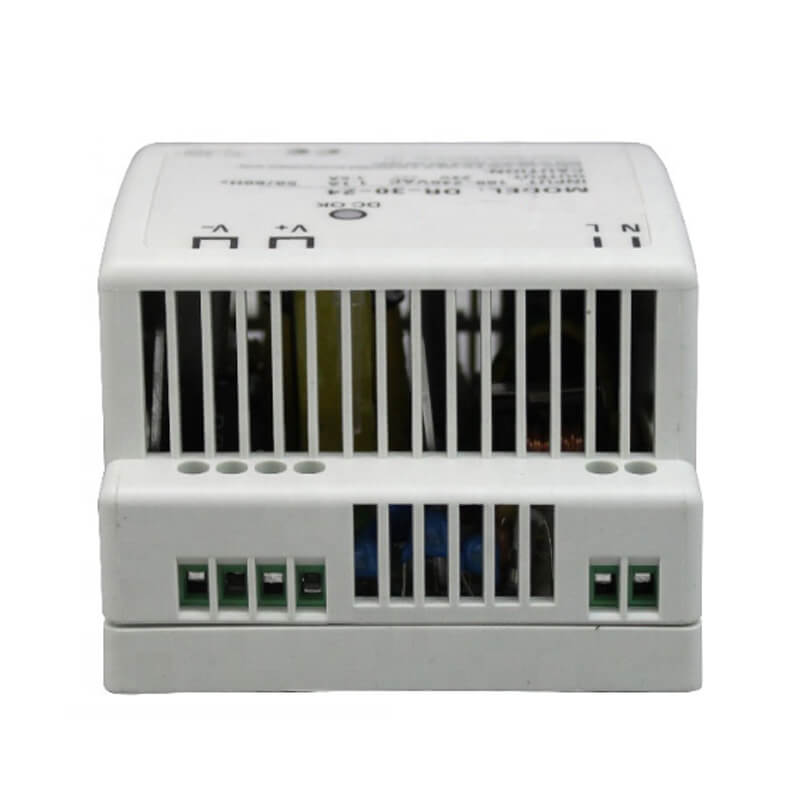

DR-30-24
YUMO
A power supply is an electrical device that takes an incoming electrical current and converts it into the correct voltage, current, and frequency required for industrial equipment. Also known as electric power converters, DIN Rail power supplies are reliable, efficient, and compact.
| MODEL | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 3A | 2A | 2A | 1.5A | |
| CURRENT RANGE | 0 ~ 3A | 0 ~ 2A | 0 ~2A | 0 ~ 1.5A | |
| RATED POWER | 15W | 24W | 30W | 36W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load | ||||
| HOLD TIME(Typ.) | 100ms/230VAC 30ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 74% | 81% | 82% | 83% | |
| AC CURRENT | 0.88A/115VAC 0.48A/230VAC | ||||
| INRUSH CURRENT(max.) | COLD START 15A/115VAC 30A/230VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||
| Protection type : Constant current limiting,recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
| Protection type : Shut down o/p voltage,re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UL60950-1,TUV EN60950-1,EN50178 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | ||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A | ||||
| OTHERS | MTBF | 441.5K hrs min. MIL-HDBK-217F (25°C) | |||

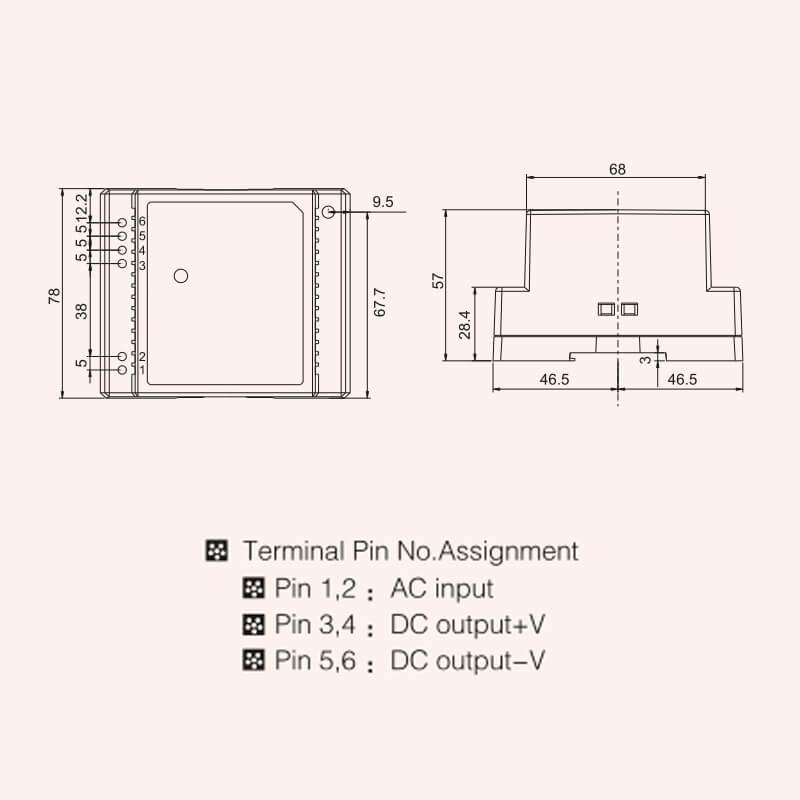

| DIMENSION | 78*93*56mm (L*W*H) | ||||
| PACKING | 0.27Kg; 48pcs/14Kg/1.02CUFT | ||||
