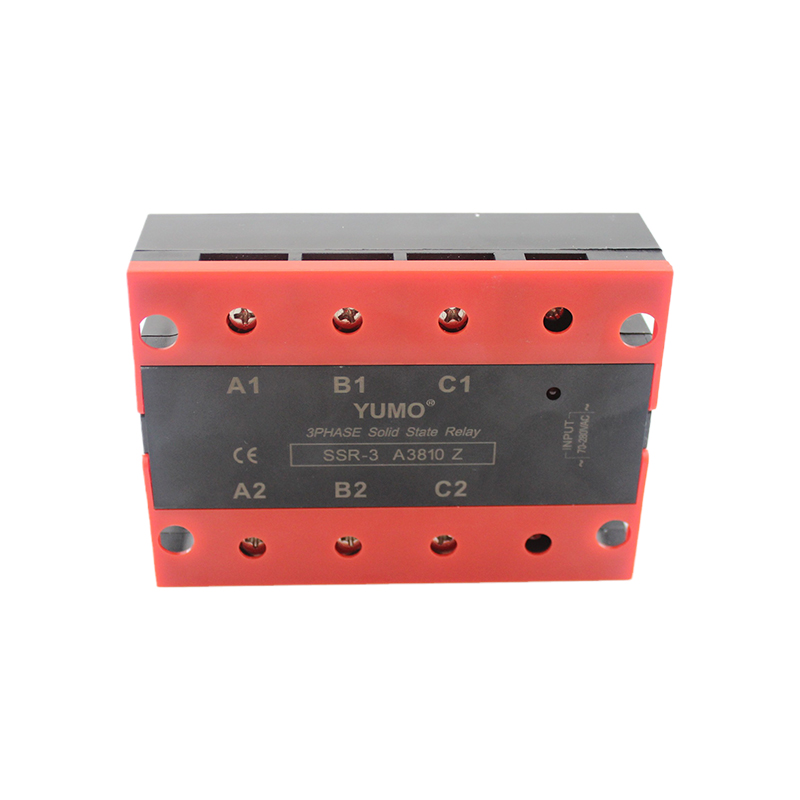

3 Phase Solid State Relay Aluminum Base Black Body with Red Cover

Solid state relay product application: Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines .
  • SSR-3A 3810Z

  • YUMO

  • China

  • 11*3.4*7.6cm

  • AC control AC

  • CE

  • 1000M/500VDC

  • electric furnace heating, thermostat equipment, CNC machinery and etc.

Availability:

3 Phase Solid State Relay Aluminum Base Black Body with Red Cover

Product performance and characteristics

1. Wide input voltage range, small control current, less than or equal to 10mA;

2. No mechanical action parts, long service life and high reliability;

3. Fast switching speed, zero voltage on, zero current off, low RF interference;

4. Built in resistance capacitance absorption to protect the impact of the product on the starting instant current;

5. Photoelectric isolation between input and output circuits, with insulation withstand voltage of 2500V;

6. The product is small in size and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-resistant



Model SSR-3A 3810Z
Control Voltage 90-250VAC
Load Voltage 24-480VAC
Control Current AC≤10mA
Dielectric Strength Input - output - floor ≥2500VAC
Insulation Resistance 1000M/500VDC
Ambient Temperature

-30℃~+75℃

Rated output current 380V
Rated output voltage 10A


ssr-3.1
