SSR-120DA
YUMO
China
Single phase solid state relay
CE
120A
Availability: | |
---|---|

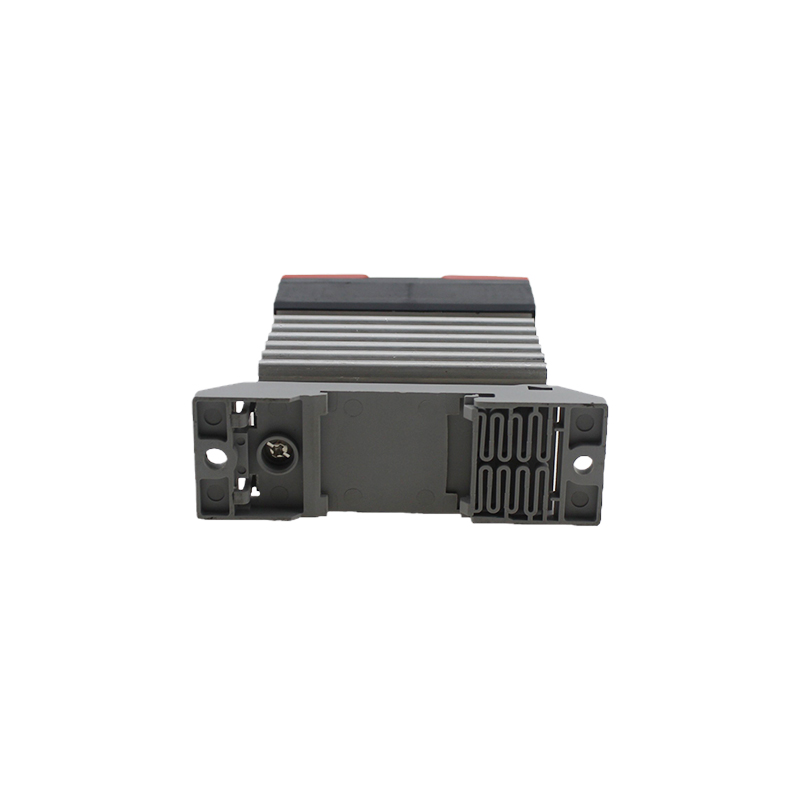

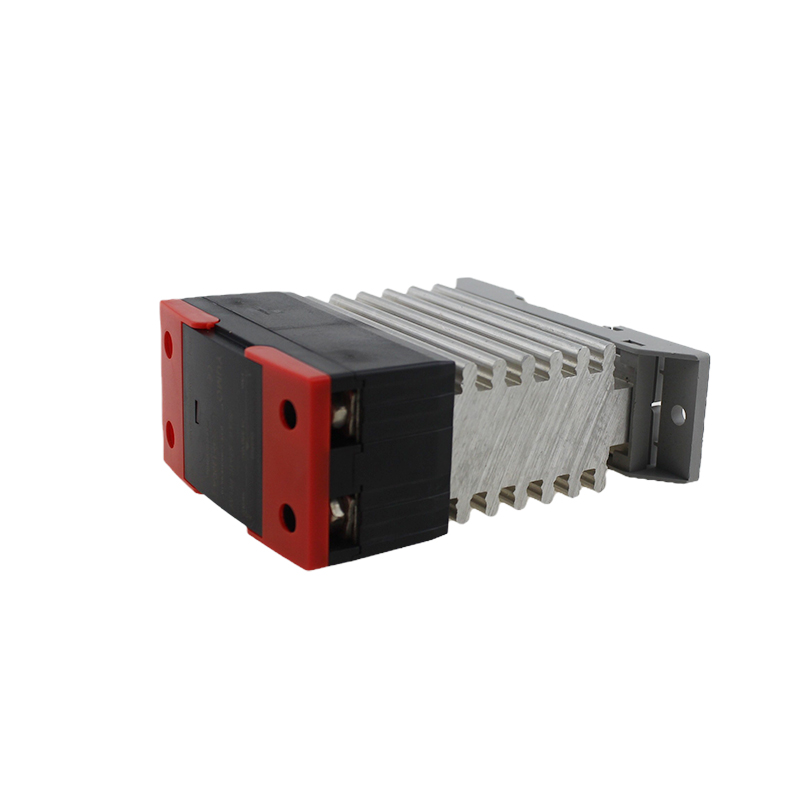

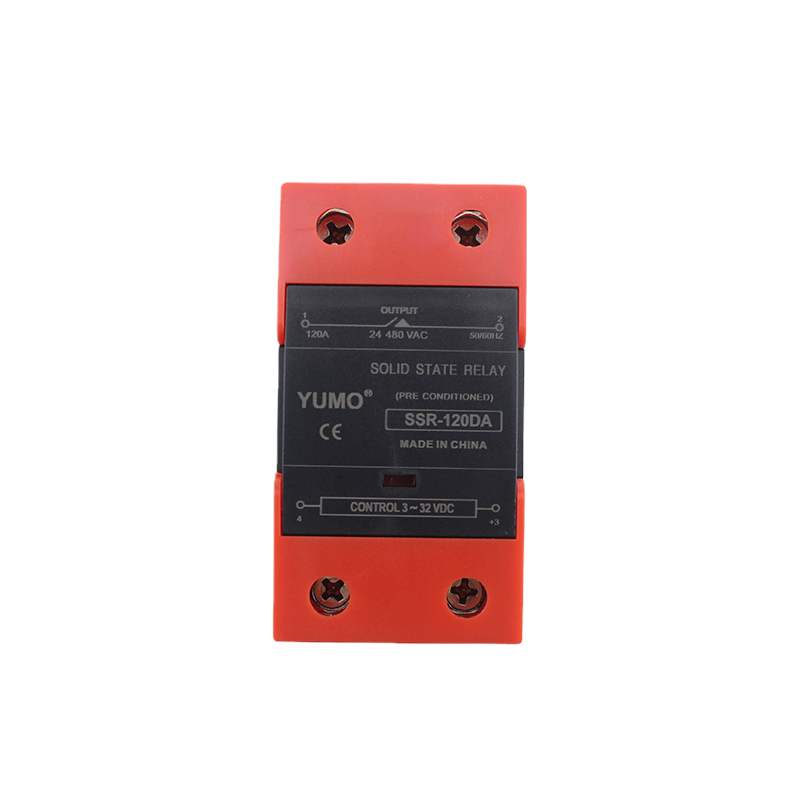

Black and Red SSR-120DA Integrated Single-phase Solid State Relay with Heat Sink
SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation and screw terminal connection. This series solid state relay has high structural strength, impact resistance and strong resistance to vibratility. The low input drive current makes it convenient to connect with computer terminal and various digital programmable interface circuit.
It is widely used in automation control field such as petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine, plastic machinery, fitness equipment, recreational facilities, especially suitable for severe environments like corrosion, moisture, dust prevention, explosive requirements and frequent switch occasions. SSR series solid state relay are update replacement products of a.c. contactor.
Model | SSR-120DA |
Load Current | 120A |
Load Voltage | 24-380VAC |
Control Voltage | 3-32VDC |
Control Current | DC5-15mA (built in constant current circuit) |
On Voltage | ≤1.5V |
Off Leakage Current | ≤2mA |
On-off Time | ≤10mS |
Dielectric Strength | Input - output - floor ≥2500VAC |
Insulation Resistance | 1000M/500VDC |
Ambient Temperature | -30℃~+75℃ |
Mounting Methods | Bolt fixing |
The work instructions | LED |
Black and Red SSR-120DA Integrated Single-phase Solid State Relay with Heat Sink
SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation and screw terminal connection. This series solid state relay has high structural strength, impact resistance and strong resistance to vibratility. The low input drive current makes it convenient to connect with computer terminal and various digital programmable interface circuit.
It is widely used in automation control field such as petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine, plastic machinery, fitness equipment, recreational facilities, especially suitable for severe environments like corrosion, moisture, dust prevention, explosive requirements and frequent switch occasions. SSR series solid state relay are update replacement products of a.c. contactor.
Model | SSR-120DA |
Load Current | 120A |
Load Voltage | 24-380VAC |
Control Voltage | 3-32VDC |
Control Current | DC5-15mA (built in constant current circuit) |
On Voltage | ≤1.5V |
Off Leakage Current | ≤2mA |
On-off Time | ≤10mS |
Dielectric Strength | Input - output - floor ≥2500VAC |
Insulation Resistance | 1000M/500VDC |
Ambient Temperature | -30℃~+75℃ |
Mounting Methods | Bolt fixing |
The work instructions | LED |
