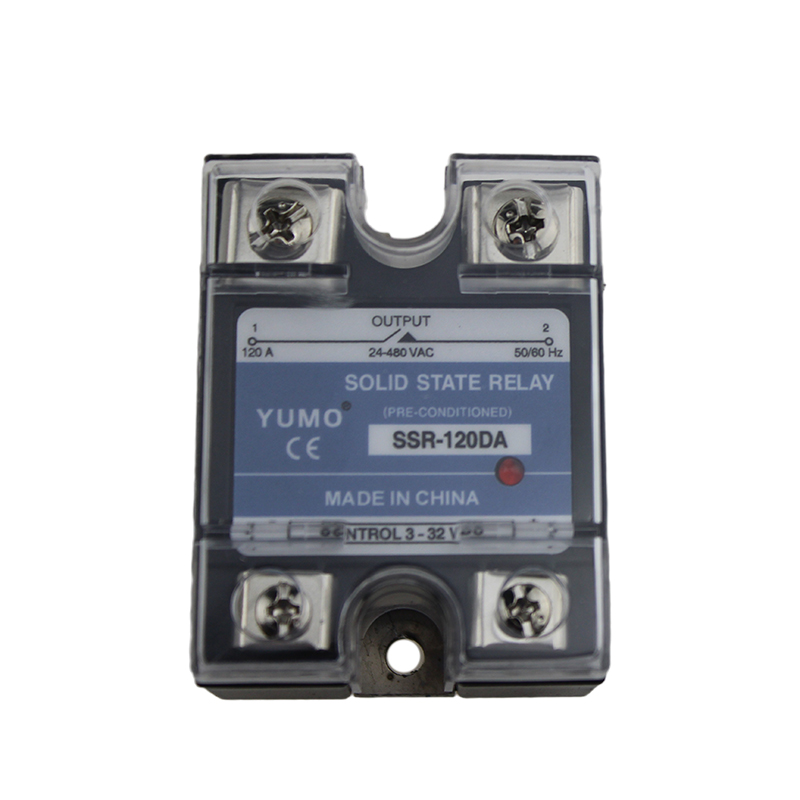

YUMO SSR-120DA DC To AC Solid State Relay

Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion occasions have a large number of use, as a substitute for electromagnetic relay The ideal product for AC contactor
  • SSR-120DA

  • YUMO

Availability:

SSR-120DA YUMO solid state relay


Features:

*Single phase solid state relay, similar to Omron housing

*Input: 3-32Vdc

*Load: 10-120 amps 480Vac,  with maximum load at 24 amps using proper heatsink

*Built-in RC Snubber circuit

*CE comply

*Size 45mm*57mm*31mm

*Mounting, panel mount, DIN rail mount availble with DIN clamps attached to it

*LED status indication. 12 months warranty,

*Private label service avaialble, we have in house laser printing machine ,we can print your logo and item number on the housing.


Technical Parameters:

SSR-120DA
Load Current120A
Load Voltage24-480VAC
Control Voltage3-32VDC
Control CurrentDC3-25mA
On voltage≤1.5V
Off Leakage Current≤2mA
On-off Time≤10ms
Dielectric Strength2500VAC
Insulation Resistance1000M/500VDC
Ambient Temperature-30~+75
Mounting MethodsBolting
The work instructionsLED
Weight100g
