SE-600-5 5V 100A 500w High Switch Power Supply

* AC input active surge current limiting * AC input range selected by switch * Protections:Short circuit / Overload / Over voltage / Over temperature * Forced air cooling by built-in DC fan * High power density 4.9w/inch3 * Built-in remote sense function * UL approved * Low cost * 2 years warranty
  • SE-600-5

  • YUMO

  • 1

  • China

Availability:

SE-600-5 5V 100A 500w high switch power supply

SE-600 series single output power supply

AC DC SWITCHING POWER SUPPLY

*  AC input active surge current limiting
*  AC input range selected by switch
*  Protections:Short circuit / Overload / Over voltage / Over temperature
*  Forced air cooling by built-in DC fan
*  High power density 4.9w/inch3
*  Built-in remote sense function
*  UL approved
*  Low cost
*  2 years warranty




MODEL

SE-600-5

SE-600-12

SE-600-24

SE-600-48

DC output voltage, current

5V 0 ~ 100A

12V 0 ~ 50A

24V 0 ~ 25A

48V 0 ~ 12.5A

Wave and noise

150mVp-P

150mVp-P

150mVp-P

180mVp-P

Inlet wire stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±1%

±0.5%

±0.5%

±0.5%

Efficiency

78%

83%

87%

88%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

Input voltage range

90~132VAC/180~ 264VAC by switch 254~ 370VDC 47-63Hz

lmpact current

lmpact current   30A/115VAC 50A/230VAC

Overlcad protection

105% ~150% cut off the output, automatic recovery

Over voltage protection

120%~ 140% shut down O/P voltage, re- power on to recover

Setup, rise, hold up time

1000ms, 50ms, 1 6ms/230VAC

Withstand voltage

I/P-O/P: 1 5kV I/P- FG:1 5kV O/P- -FG: O.5kV 1minute

Isolation resistance

|/P-O/P I/P-FG O/P-FG: 500VDC/100MO

Working temperature

-10℃~ +50℃

SE-600

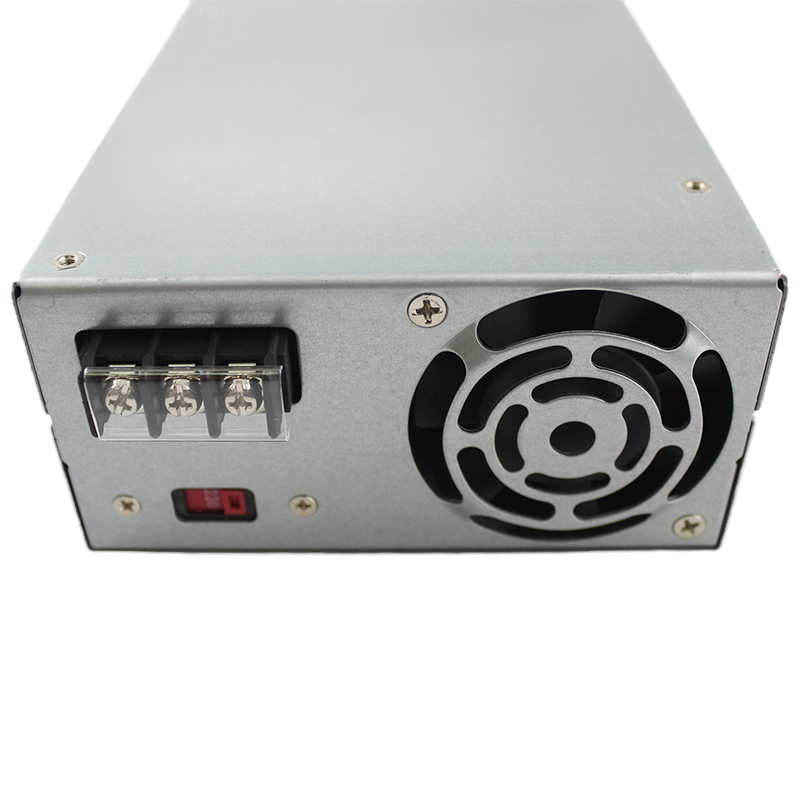

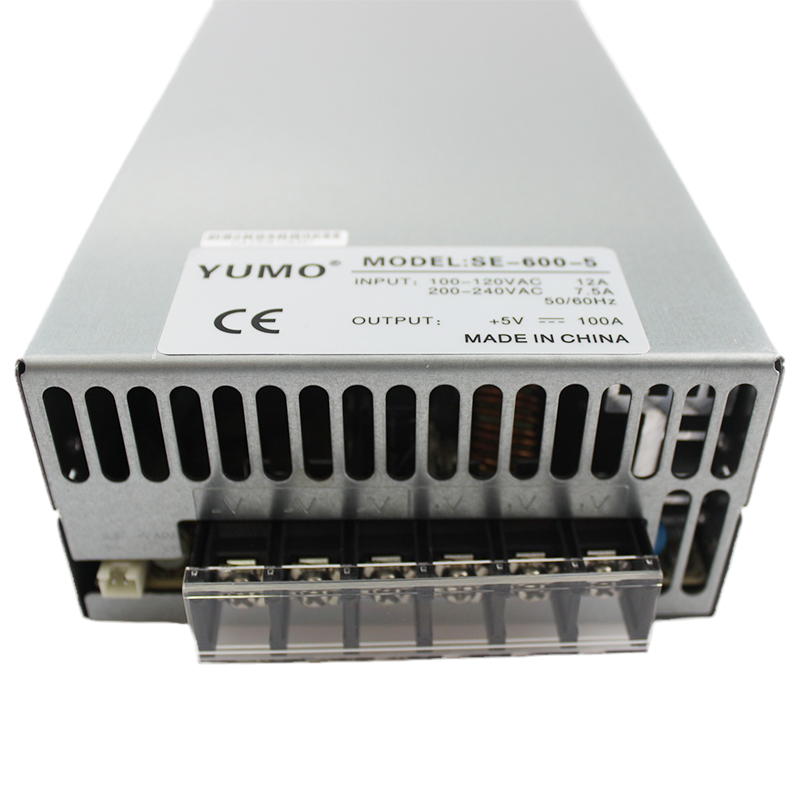

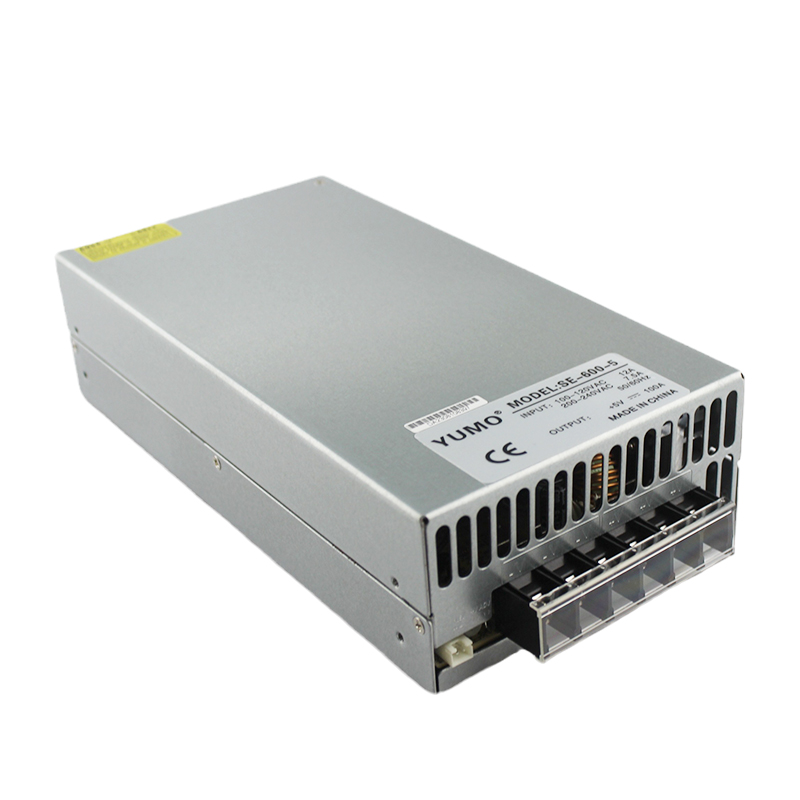

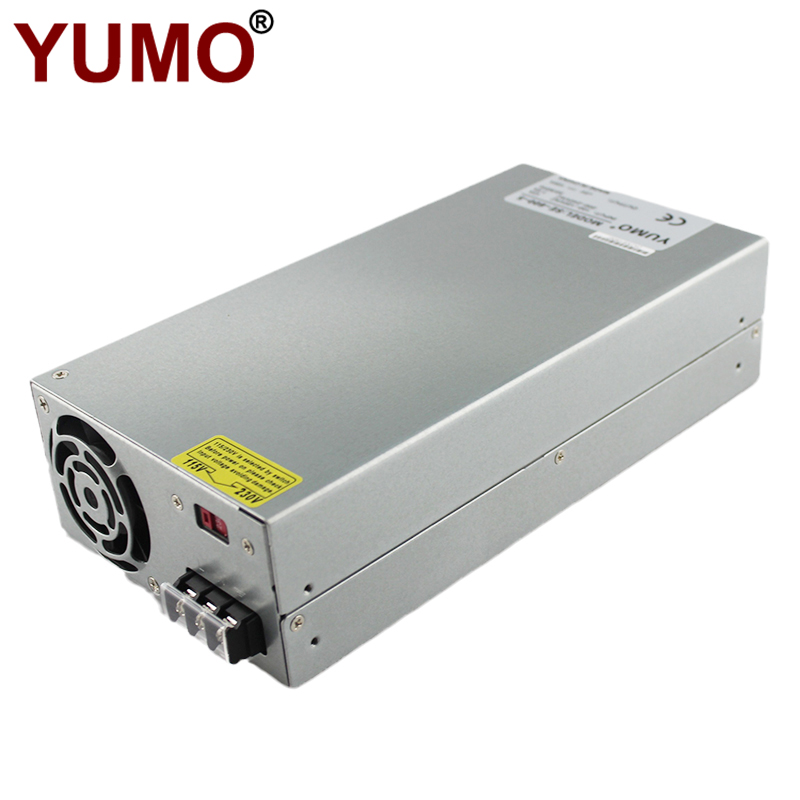

Product Pictures

SE-600-5 size
