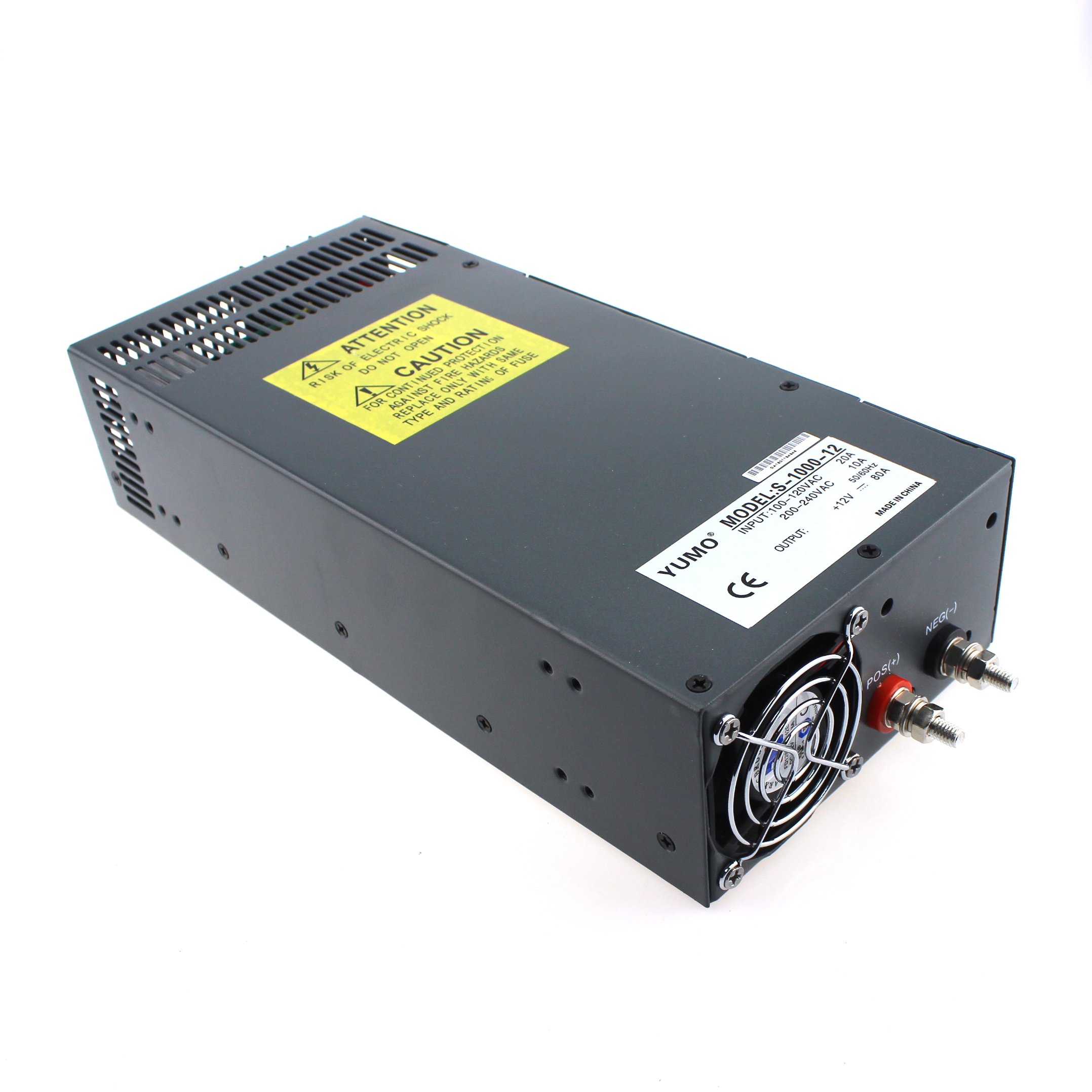

S-1000-12 High Quality 1000W 12VDC SMPS Switching Power Supply

YUMO Switching power supply products are widely used in industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, LED lights belt, computer case, digital products and instruments, etc.
  • S-1000-12

  • YUMO

Availability:

Information

Switching Power Supply 1000W Single phase output S-1000-12
switching power supply,switch power supply,DC power supply
Protection:Over load,over voltage,short circuit
Professional export

Industrail Switching Power Supply

(1) high efficiency and good price.

(2) CE RoHS certification.

(3) good quality and timely delivery.

Industrial switching power supply (s-1000)

Model S - 1000

Ac input voltage range 100-120vac / 200-240vac switch select 50-60hz: 12VDC.

Input current 10A / 20A.

AC surge current cold start current 60A / 230V.

Leakage current <3.5mA / 240VAC.

Overroad protection 105% - 135% type: current limit automatic recovery.

Overload protection 110-135%.

Set the upkeep time 1.5ms.50ms20ms.

Working temperature - 10 ℃ to + 50 ℃ 20% 90% RH

Pressure input/output interval: 1.5VAC input and shell 1.5KVAC output and 0.5KVAC.

Weight/package 3.0Kg.

EMC CISPR22 (EN5022) CLASSB. Iec 801-2.3.4. Iec 555-2.

ModelS-1000-12S-1000-15S-1000-24S-1000-27S-1000-48
 DC output voltage 12V 15V 24V 27V 48V
 Output voltage error ±10% ±10% ±5% ±5% ±5%
 Rated output current 80A 67A 40A 37A 20A
 Output current range 0-80A 0-67A 0-40A 0-37A 0-20A
 Wave and noise 200mVp-p 200mVp-p 240mVp-p 240mVp-p 300mVp-p
 Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
 Load stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
 DC output power 960W 1005W 960W 999W 960W
 Efficiency75%75%78%80.00%84.00%
 Adjustable range for DC voltage  10~13.2V 13.5~18V 20~26.4V 24~30V 41~56V
