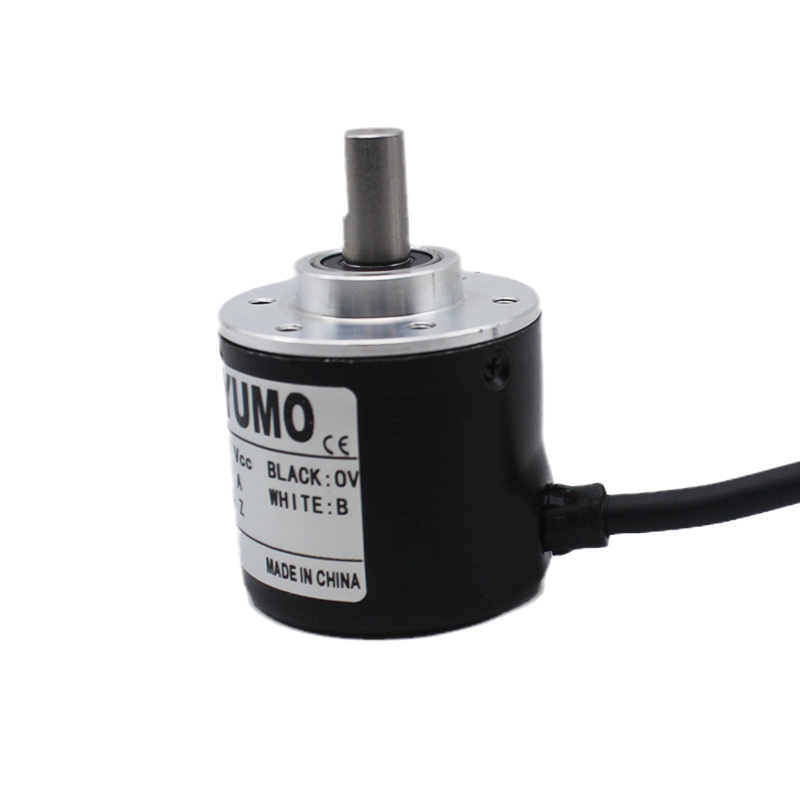

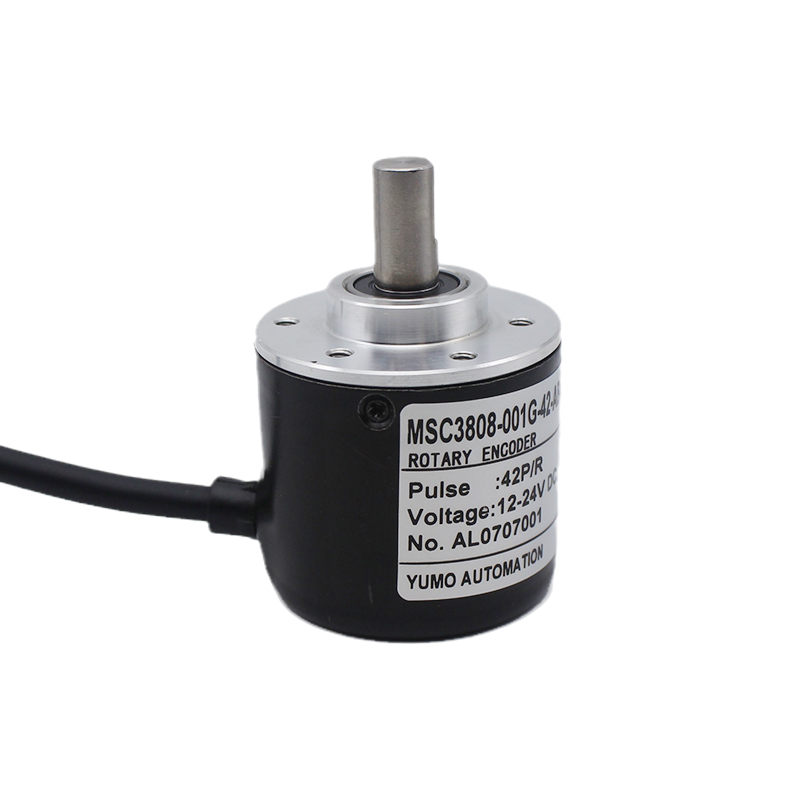

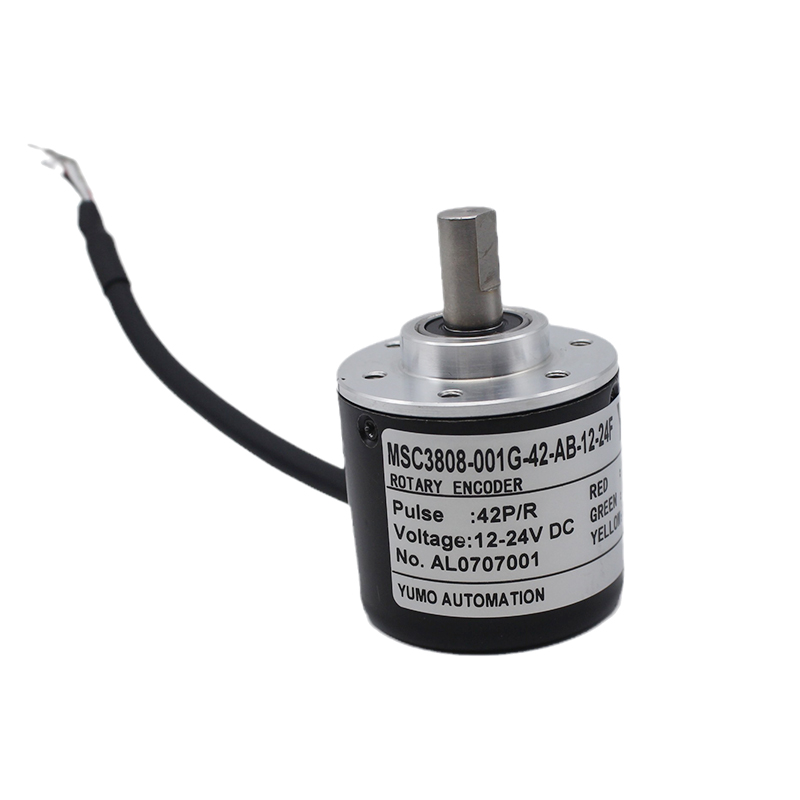

YUMO 42PPR Incremantal Magnetic Rotary Encoder MSC3808-001G-42-AB-12-24F

General-purpose Encoder with External Diameter of 38 mm Incremental model External diameter of 38 mm. Resolution of up to 42 ppr.
  • MSC3808-001G-42-AB-12-24F

  • YUMO

  • 1

  • China

  • Magnetic Encoder

  • 12-24V

  • CE RoHS

Availability:

YUMO 42PPR  Incremantal Magnetic Rotary Encoder MSC3808-001G-42-AB-12-24F

Application
Compared with traditional photoelectric encoders and grating encoders, magnetic encoders have the characteristics of anti-vibration, anti-corrosion, anti-pollution, anti-interference, and wide temperature, which can be applied to the fields that conventional optical encoders cannot adapt to. High-performance magnetic encoder can be widely used in industrial control, machinery manufacturing, shipbuilding, textiles, printing, aviation, aerospace, radar, communications, military and other fields.
Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal


Product Detail

MSC3808-001G-42-AB-12-24F (3)MSC3808-001G-42-AB-12-24F (4)MSC3808-001G-42-AB-12-24F (1)MSC3808-001G-42-AB-12-24F (2)MSC3808-001G-42-AB-12-24F (5)MSC3808-001G-42-AB-12-24F (6)



MSC3808 SERIES
Shaft diameter 6mm or 8mm,clamping flange,housing diameter 38mm.
Low price at high performance,small volume,light weight,easy for installing

Property project

Specific parameter

Out wave & duty ratio

square wave & 0.5T±0.1T

Current Consumption

≤100mA

Response frequency

0-100KHz

Supply voltage

5V DC,5-12V DC,12-24V DC

Max.permissible revolution

2000rpm

Output

ABZ

Pulse

1-1024ppr



IP rating

IP65

Operate & Stock temperature

-20-55ºC / -20-60 ºC

Ambient humidity

30-85%(with no condensation)

Shock resistance

980m/s2,6ms,2 times each in X,Y,Z directions

Vibration resistance

50m/s2,10-200Hz,2 times each in X,Y,Z directions

Operating life

MTBF≥25000h (+25C,2000rpm)

Output voltage

Vh≥85% Vcc,Vi≤0.3V

Weight

0.15kg

Protection class

IP65
