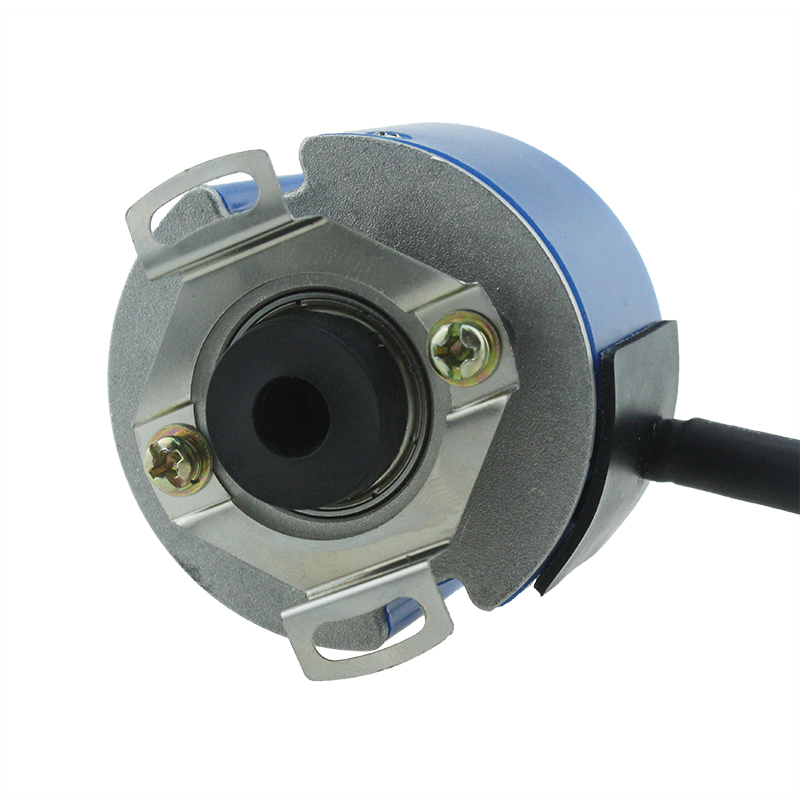

IHU4808 UVW 6 Channels Output Signal Wide Resolution Range Servo Motor Encoder

Feature: 1.Taper shaft design to ensure the firm connection 2.Wide resolution range and no requirement about signal adjustment 3.With ABZ UVW 6channels signal output , and can be connect to Line Drive(26LS31)RS422,offer 12 channels signal , and compatible with TTL
  • IHU48-08-001G-2048-BZU-3P-5L

  • YUMO

  • IHU48.pdf

Availability:

Application

Widely used in servomechanism , especially for servomotor.



Feature

  • Taper shaft design to ensure the firm connection

  • Wide resolution range and no requirement about signal adjustment

  • With ABZ UVW 6channels signal output , and can be connect to Line Drive(26LS31)RS422,offer 12 channels signal , and compatible with TTL



Ordering Information

IHU48

Technical Specifications

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

6000

<0.02Nm

Radial:20N, Axial:10N

50G/11-ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-40~85℃

-40~85℃

IP50

120g



Connection Table

Signal

A

B

Z

A-

B-

Z-

Vcc

Color

Green

White

Yellow

Green/ Black

White/ Black

Yellow/Black

Red

Signal

U

V

W

U-

V-

W-

GND

Color

Brown

Gray

Orange

Brown/Black

Gray/ Black

Orange/ Black

Black




Dimensions(mm)

IHU48
