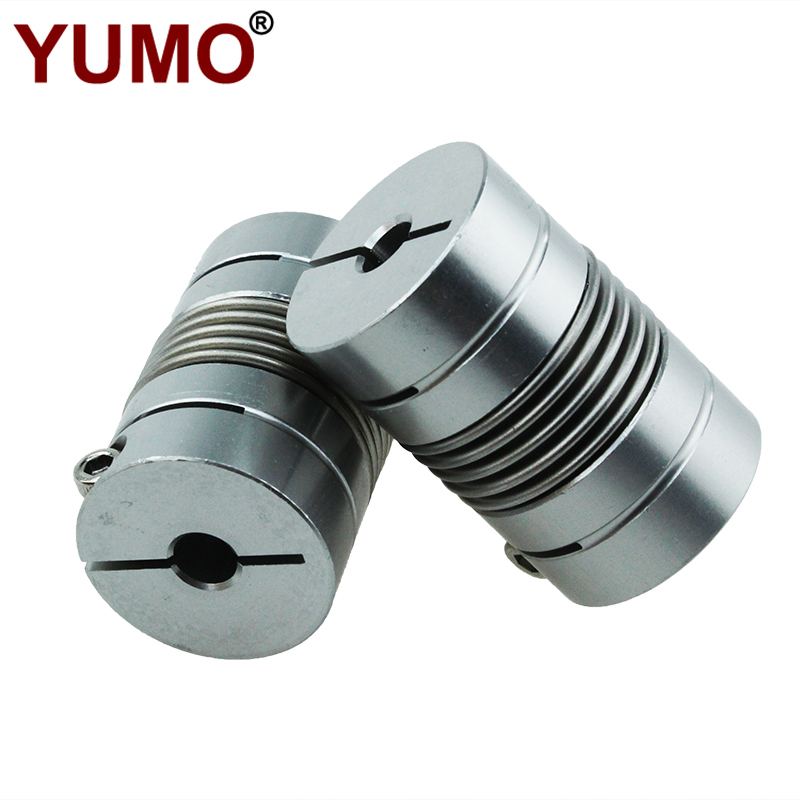

LB-D25L38 6*6
YUMO
Product characteristics
The bushing material is aluminum alloy, and the middle bellows is made of stainless steel, which is corrosion resistant.
The zero-turn gap has the same positive and negative characteristics, effectively compensating for radial, axial and angular deviations.
Dedicated and servo motor and stepper motor design
application
XY axis slide / indexing table / machine tool / injection molding machine / handling equipment / dispensing machine
Product size
Size control table
| Proiect type | D (mm) | L (mm) | D1-D2 (mm) | M (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Screw tightening torque(n.m) |
| LB-B-D16L30 | 16 | 30 | 3-8 | M3.0 | 9.5 | 8 | 3 | 1.2 |
| LB-B-D20L34 | 20 | 34 | 4-10 | M3.0 | 10 | 12 | 3 | 1.2 |
| LB-B-D25L38 | 25 | 38 | 5-12 | M3.0 | 11 | 12 | 4.5 | 1.2 |
| LB-B-D32L48 | 32 | 48 | 6-15 | M4.0 | 12 | 18 | 4.5 | 2.5 |
| LB-B-D40L58 | 40 | 58 | 8-20 | M5.0 | 16 | 20 | 5 | 5 |
| LB-B-D55L72 | 55 | 72 | 10-25 | M6.0 | 22 | 27 | 10 | 8 |
| LB-B-D65L82 | 65 | 82 | 12-38 | M6.0 | 25 | 28 | 10 | 8 |
| LB-B-D82L100 | 82 | 100 | 20-42 | M8.0 | 44 | 36 | 10 | 20 |
Technical parameter
| Proiect type | Rated torque (n.m) | Allow eccentricity (mm) | Allowable declination (°) | Allowable axial deviation (mm) | Maximum speed (rpm) | Moment of inertia (Kg.m²) |
| LB-D-D16L30 | 0.8 | 0.1 | 1.5 | 0.3-1.0 | 8500 | 8.0*10-7 |
| LB-D-D20L34 | 1.8 | 0.15 | 2 | 0.3-1.0 | 7600 | 2.2*10-6 |
| LB-D-D25L38 | 2 | 0.15 | 2 | 0.3-1.0 | 6000 | 6.9*10-6 |
| LB-D-D32L48 | 2.5 | 0.2 | 2 | 0.3-1.0 | 4700 | 6.9*10-5 |
| LB-D-D40L58 | 10 | 0.2 | 2 | 0.3-1.0 | 4200 | 2.1*10-5 |
| LB-D-D55L72 | 22 | 0.2 | 2 | 0.3-1.0 | 3900 | 2.3*10-5 |
| LB-D-D65L82 | 55 | 0.2 | 2 | 0.3-1.0 | 3500 | 3.7*10-5 |
| LB-D-D82L100 | 70 | 0.2 | 2 | 0.3-1.0 | 3200 | 6.0*10-5 |
