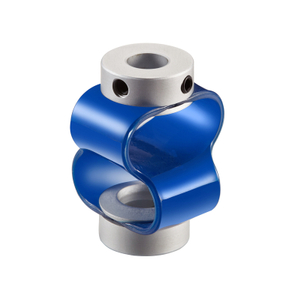

LS-D-D22L31 Encoder coupling 8-shaped coupling stepping servo motor torque Flexible couplings

Steel hubs are zinc plated.
They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.
The hubs fix to sharts by metric set screws.
Maximum operating temperature is 80ºC.
  • LS-D-D22L31
  • YUMO
  • YM0000541
Availability:

Feature:

Steel hubs are zinc plated.They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.The hubs fix to sharts by metric set screws.Maximum operating temperature is 80℃.


Specification:

● High angular misalignment to 15 °

● High axial and parallel misalignments

● Slient in operation,torsionally soft

● Dampens vibrations, increases bearing life

●  Maintenance-free,4000 hour rated life

● Resistant to oils and solvents


Product

type

d1

Bore

d2

Bore

D L M

Rated

torque

Maximum torque

The

eccectric error

work
LS 4-10 4-10 22 31 M3 2 3 1M Synchronous operation
LS 4-15 4-10 44 50 M4 3 4 1M
LS 4-15 4-10 44 60 M4 3 4 1M
Customers can customize according to the table processing
