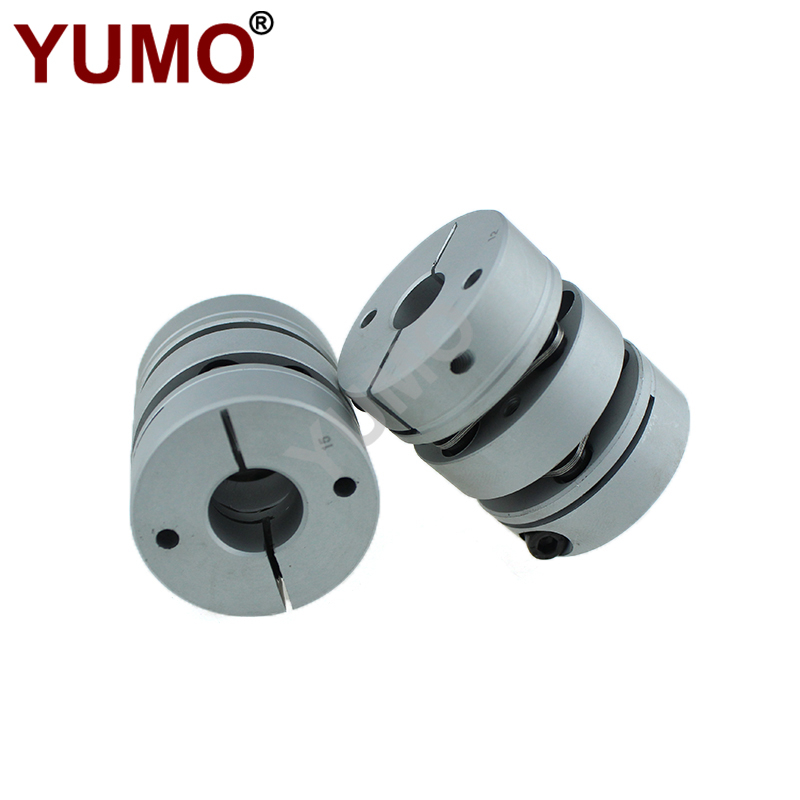

Shaft Coupler Rotary Encoder Coupling Flexible Stainless Steel Encoder Coupling

spring type flexible coupling.
Short length, light volume.
double group of stainless steel shrapnel admissible eccentricity, axial deviation angle and.
clockwise and anticlockwise rotation the same characteristic.
It ends with different aperture product standardization.
  • LD2-B-D40L50 12*15
  • YUMO
  • YM0000541
  • 10
Availability:

Shaft coupler rotary encoder coupling  flexible stainless steel encoder coupling

Features

  • spring type flexible coupling.

  • Short length, light volume.

  • double group of stainless steel shrapnel admissible eccentricity, axial deviation angle and.

  • clockwise and anticlockwise rotation the same characteristic.

  • It ends with different aperture product standardization.



Technical Specifications

选型

Project type

d1

Bore

d2

Bore

D L L1 M Rated torque

Maximum

torque

The eccentric

error

Shaft angle

The highest

speed

Work
LD2 4-12 26 35 3 M2.5 8N.M 15N.M ±0.2mm ≤2.5° 12000 Synchronous operation
5-12 34 45 5 M3-4 10N.M 18N.M ±0.2mm ≤2.5° 12000
6-20 40 50 5.5 M3-4 12N.M 20N.M ±0.2mm ≤2.5° 12000
6-20 45 50 5.5 M3-4 14N.M 22N.M ±0.2mm ≤2.5° 12000
6-22 56 63 6.5 M4-6 15N.M 25N.M ±0.2mm ≤2.5° 12000
10-25 68 74 7.5 M4-6 15N.M 30N.M ±0.2mm ≤2.5° 12000
12-35 84 98 10.5 M4-8 30N.M 50N.M ±0.2mm ≤2.5° 12000



Mechanical Dimensions(mm)

LD2

Product Pictures

LD2-B-D40L50 (3)LD2-B-D40L50 (4)LD2-B-D40L50 (2)
