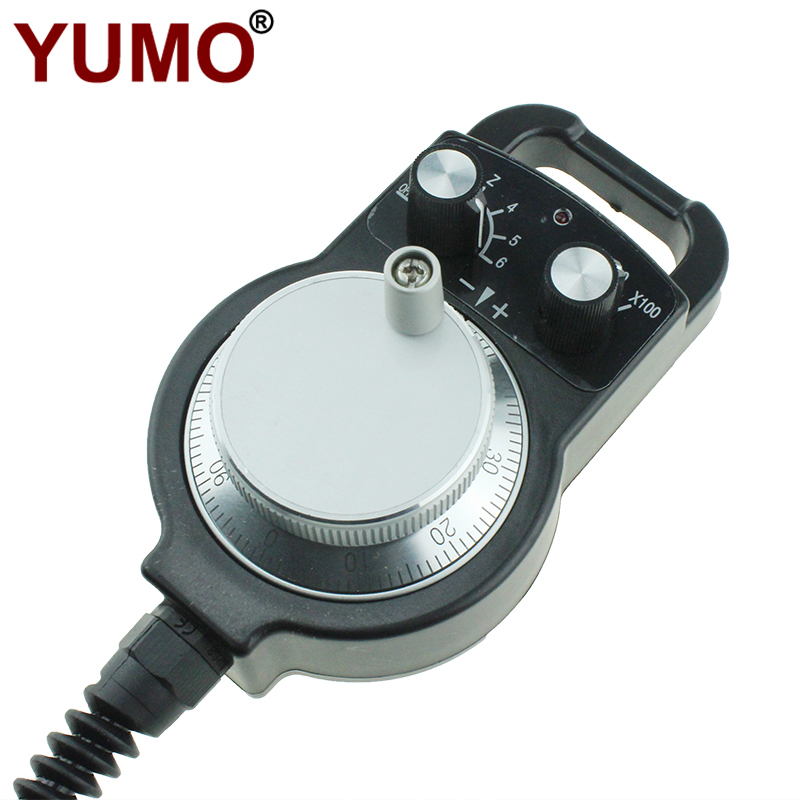

ISMM1274-001E-100B-5L
YUMO
Application
Industrial tolling machinery , zero correction of printing machinery or signal cutting,numerical control machine or signal dividing.
Features
Suitable for manual pulses input type such as CNC or milling machine.
Plastic case, high electrical resistance. Shaft switching trigger, oil sealed design
Ordering Information
Note:
Please contact sales representative to confirm the correctness and availability of the part number
Line Driver is only available with 5V DC, 12VDC option
Technical Specifications
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 12V |
Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
Mechanical Specification | ||||
Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
600 | -25~70℃ | -30~85℃ | IP50 | 750g |
Dimensions(mm)
Connection Table
Item | Wire color | Signal | Note | |
 | 1 | Red | +5v | Pulses generator MPG |
2 | Black | 0v | ||
3 | Yellow | A | ||
4 | White | B | ||
5 | Green | X | Axis selection | |
6 | Brown | Z | ||
| 7 | Light Bule | Com-OFF | ||
