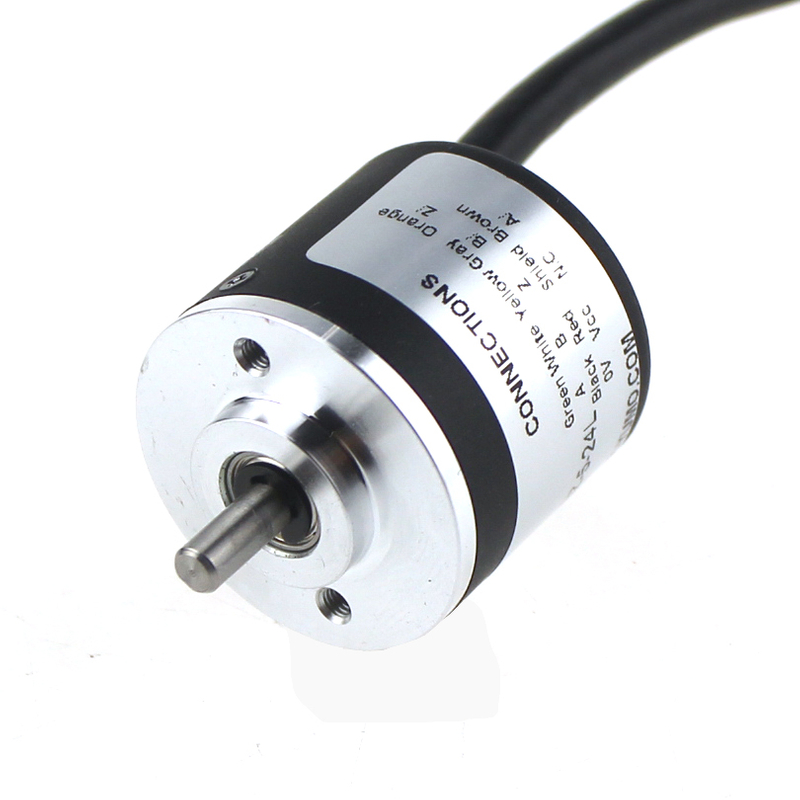

ISC2504 Outer diameter 30mm Solid Shaft Incremental Rotary Encoder

◆ Features ● Miniature size, easy assembling ● 2 quadrature output channel (A&B) ● Housing size 25mm, shaft dia. 4mm
  • ISC2504
  • YUMO
  • YM00000013
Availability:

Ordering information


Note

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option


Technical Specification



Connection Table


Signal

A

B

Z

A(-)

B(-)

Z(-)

Vcc

GND

Color

Green

White

Yellow

Brown

Grey

Orange

Red

Black



Dimension



Output Waveform
