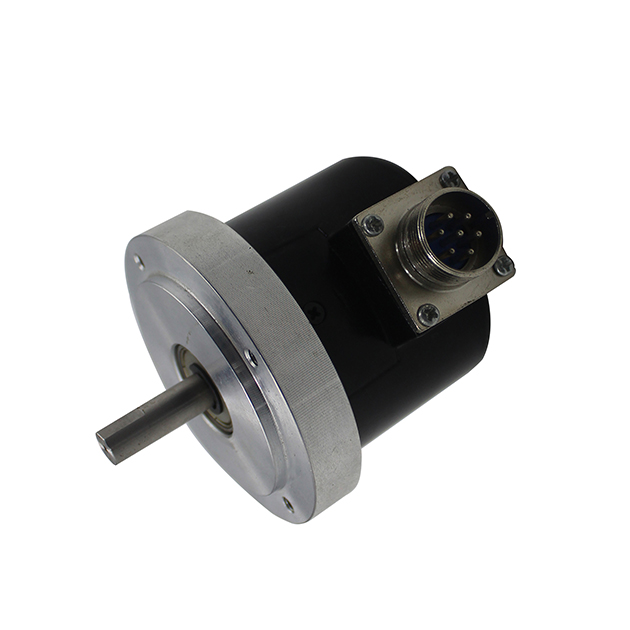

ISC7008 Outer diameter 70mm Solid Shaft Incremental rotary encoder

● Application in heavy duty, especially on CNC machine tools spindle ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 3600cpr
● Housing size 70mm, shaft dia. 8mm
Measure the distance and measure the speed,position at CNC tooling machines, robot, X-Y labor ,printing machine and etc.




  • ISC7008

  • YUMO

  • YM00000020

  • China

  • 5-24V

Availability:













Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2,
Line Driver is only available with 5V DC option

Technical Specifications

Parameter  Value Note
Supply Voltage DC5V / 7~24V (±10%) Max. response frequency is gated by max. rotation speed
Max. Response Frequency 100 kHz
Max. Rotation Speed (*1) 3000 rpm
Max. Current Consumption 120mA (Unloaded)
Max. Rise-Fall Time 200ns (Line Driver)
Max. Rise-Fall Time 1us (Other Output Mode)
Operating Temperature -20 ~ 85° C (unfrozen)
Storage Temperature -20 ~ 85° C (unfrozen)
IP Rating IP54



Connection Table

Color of Lead Wire GN WH YE RD BK Shield BN GY OG
Output-Line Driver A+ B+ Z+ Vcc 0V NC A- B- Z-
Output-Other Output A B Z Vcc 0V NC n/a n/a n/a


Diamensios
8mm encoder

Output Waveform
