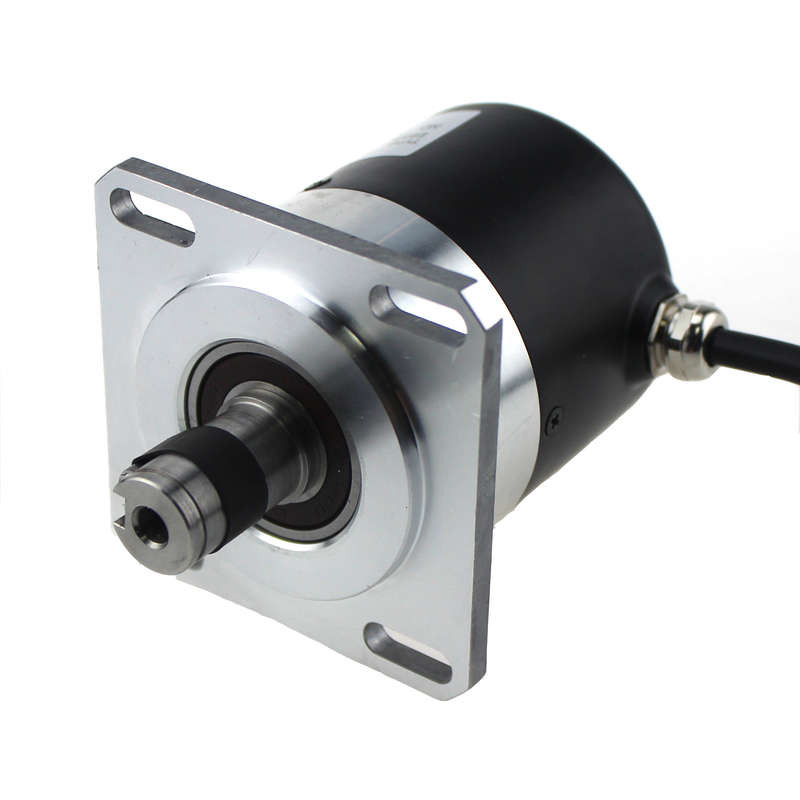

EB58M15K-L5PR-900-9V7000 Outer diameter 58mm 5V DC Shaft Incremental Rotary Encoder

◆ Features
● Application in heavy duty, especially on CNC machine tools spindle
● 2 quadrature output channel (A&B) + index signal
● Resolution up to 900 cpr
● Flange dimension 68*68
  • EB58M15K-L5PR-900-9V7000

  • YUMO

  • YM0000003

Availability:

Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option.
3, 500,600,1024 cpr is not available with index width 1T

Technical Specifications

Parameter  Value Note
Supply Voltage DC5V (±10%) Max. response frequency is gated by max. rotation speed
Max. Response Frequency 150 kHz
Max. Rotation Speed (*1) 3000 rpm
Max. Current Consumption 120mA (Unloaded)
Max. Rise-Fall Time 200ns (Line Driver)
Max. Rise-Fall Time 1us (Other Output Mode)
Operating Temperature -20 ~ 85° C (unfrozen)
Storage Temperature -20 ~ 85° C (unfrozen)
IP Rating IP54


Connection Table

Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Block

Color

Green

White

Yellow

Brown

Gray

Orange

Red

Black

Copper Web

7Pin Plug

3

5

2




1

4

6

9Pin/10Pin Plug

5

3

2

 7

6

 8

1

4



Diamension

EB58M15K-H6PR-500-9V7000 encoder 07.JPGEB58M15K-H6PR-500-9V7000 encoder 08.JPG


Output Waveform
