YUMO hot sales encoder ISC3004-002E-360B-5C Solid-shaft Incremental Rotary Encoder

The Advantage of incremental encoder is simple structure,the average life could reach more than 10000hrs,high anti-interference ability, high reliability, suitable for long-distance transmission.The disadvantage is could not output the absolute position of the shaft rotation.
  • ISC3004-002E-360B-5C
  • YUMO
  • ISC3004 -002E datasheet.pdf
  • China
  • 5VDC
  • 30mm
  • Incremental Rotary Encoder
  • CE
  • ≤80mA
  • AB phase
  • 150kHz
  • Measure the distance, automatic control
Availability:

YUMO hot sales encoder  ISC3004-002E-360B-5C Solid-shaft Incremental Rotary Encoder

Product Description

Application
Measure the distance, automatic control , robot, X-Y labor ,printing,  curtained door, shoe machine , textile machine and etc.
Features
Miniature size,easy assembling

2 quadrature output channel(A&B)

Full impulses under 1024, it is suitable for narrow area application

Property project

Specific parameter

Response frequency

150KHz

Moment of inertia

3.5*10-6Kg.m2

Starting torque

1.5*10-3Nm

Shaft loading

Radical:15N / Axial :10N

Operate & Stock temperature

-25-80ºC / -30-85 ºC

Weight

70g

Protection class

IP51

Output Form Open Collector NPN

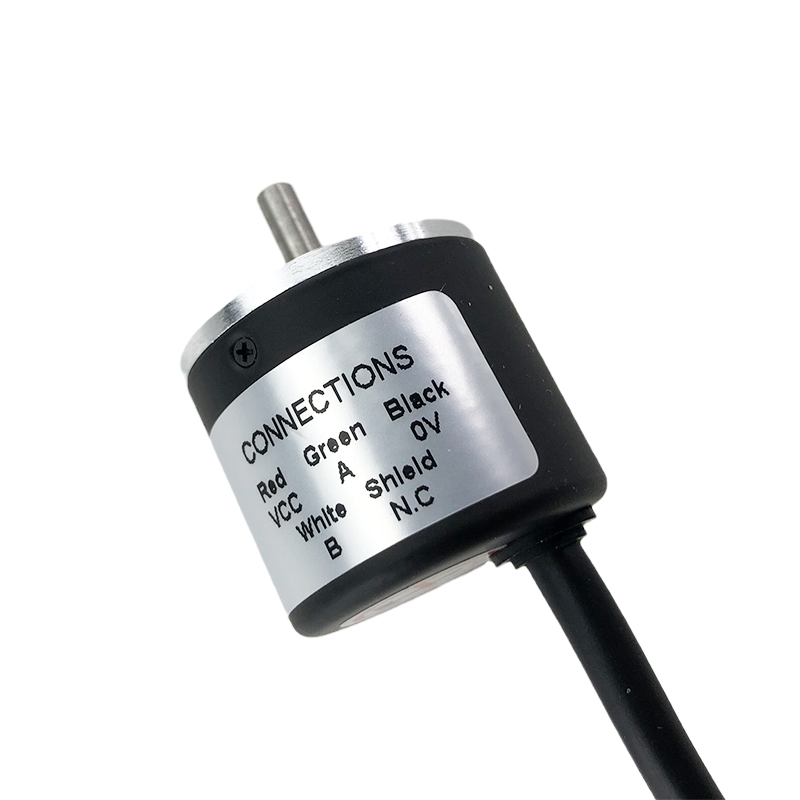

Product Pictures

.jpgISC3004-002E-360B-5C 2.jpgISC3004-002E-360B-5C 7.jpgISC3004-002E-360B-5C 8.jpg

YUMO rotary encoder


Certification

.jpg
