ISC3004-001G100BZ
YUMO
YM00000013
Application
Measure the distance, robot, X-Y working, curtained door, shoe machine , textile machines
Features
Miniature size, easy assembling
2 quadrature output channel (A&B)
Full impulses under 1024, it is suitable for narrow area application
Ordering Information
Note:
Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
Max Responding Frequency | 150kHz | 150kHz | 150kHz | 150kHz |
Mechanical Specification | ||||
Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
6000 | <0.03Nm | Radial:15N, Axial:10N | 50G/11ms | 10G 10-2000Hz |
Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
4*10-8Kgm2 | -25~80℃ | -30~85℃ | IP51 | 70g |
Output Phase Shift
 | Wave Ratio: a+b=0.5T±0.1T C+d=0.5T±0.1T Z signal Width: Tz=1T±0.5T Signal position accuracy : A,B phase absolute angle deviation ≤0.2T | Periodic Deviation ≤0.05T T=360°/N (N is output pulse number of each spin ) |
Connection Table
Signal | A | B | Z | A(-) | B(-) | Z(-) | Vcc | GND |
Color | Green | White | Yellow | Brown | Grey | Orange | Red | Black |
Dimensions(mm)

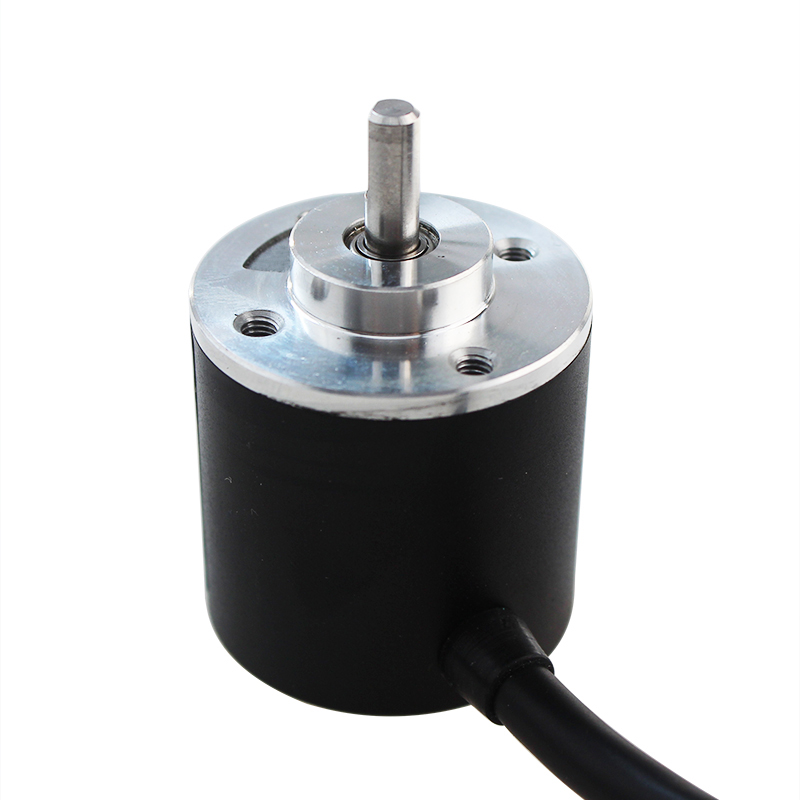

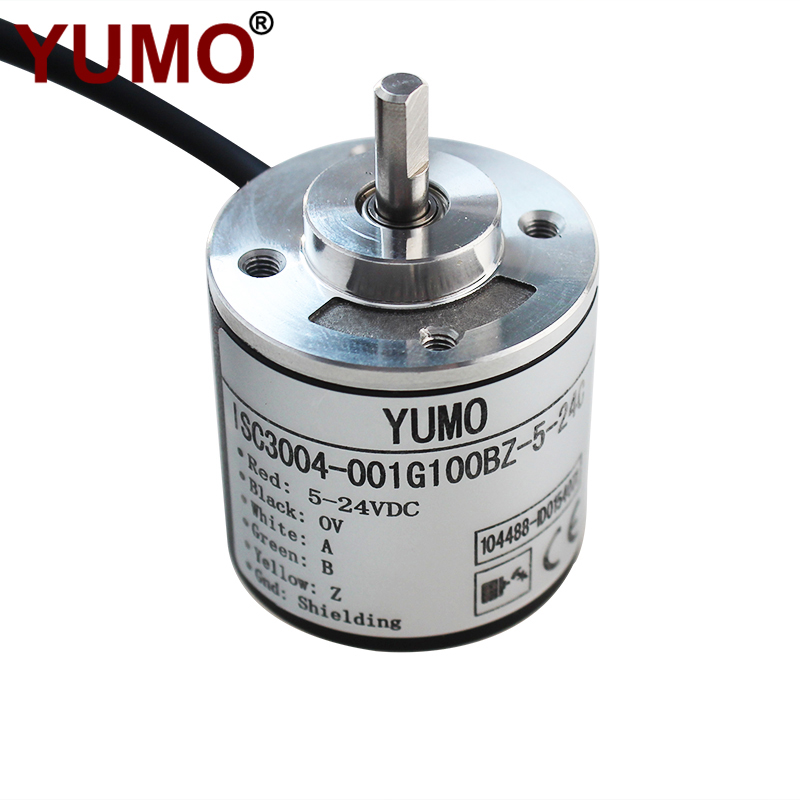

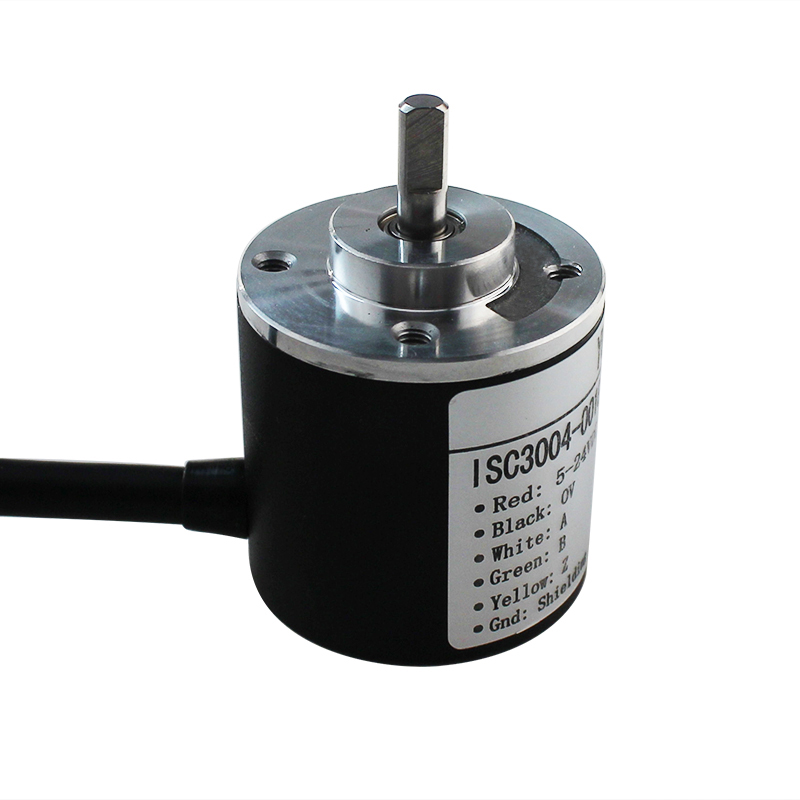

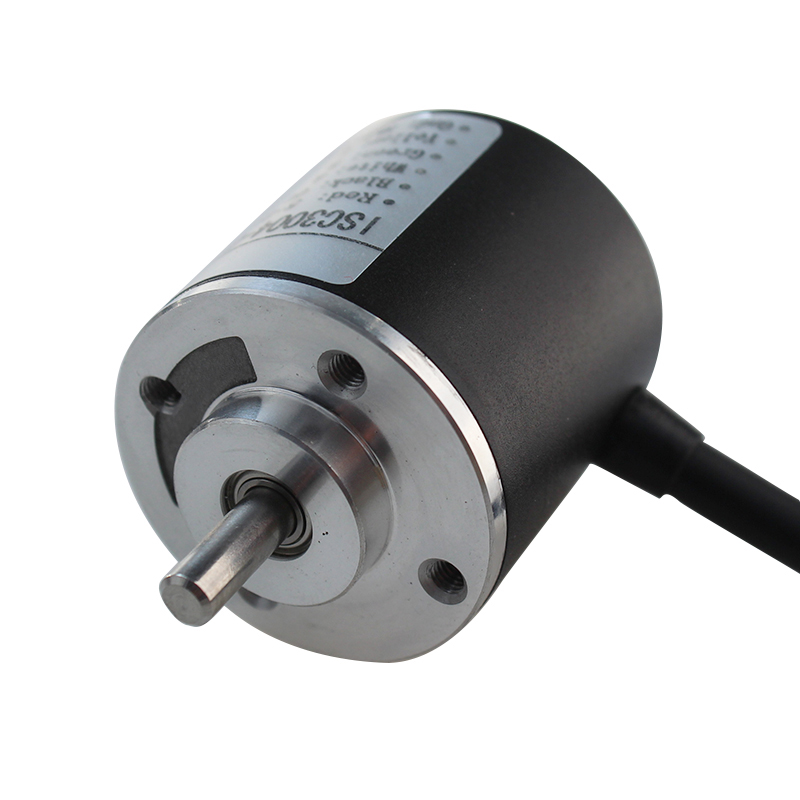

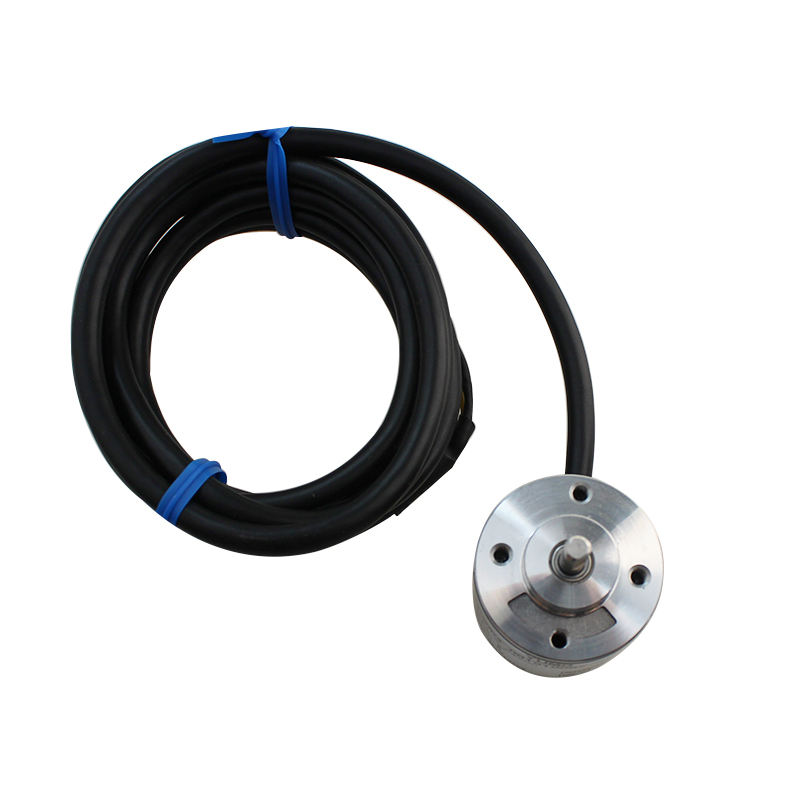

Product Pictures
