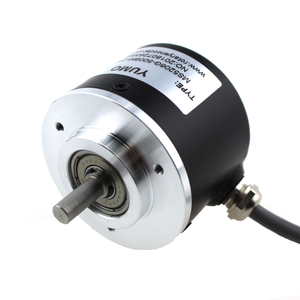

E6C2
YUMO
YM00000052
China
5-24V
Availability: | |
---|---|
Feature
Wide variety of supply voltages and output forms
Easy-to-adjust zero index(phase Z)with orign indicating function High resolution models(2000 pulses per revolution)substantially improves measuring accuracy
Rugged construction:6mm(0.24 inch)diameter shaft with radial load ratings of 3 kgf(21.7 ft*lbs)and axial load rating of 2 kgf(14.5 ft*lbs)
Protected against short-circuit and reversed connections for highly raliable operation avaliable with line driver ouput
Specification
code | voltage | output circuit | output signals | Number of pulses | |
E6C2-CWZ6C | DC 5-24V | Open collector NPN output | NPN | Increment,A,B,Z phase | 10,30,40,50,60,100,120,180,200,256,300360,400,500,512,600 |
E6C2-CWZ5B | DC 12-24V | PNP | |||
E6C2-CWZ3E | DC 5-24V | Voltage output | 720 800 1000 1024 1200 | ||
E6C2-CWZ1X | DC 5V | Line driver output | 1500 1800 2000 2048 2500 | ||
E6C2-CWZ1X | DC 5V | Linear driver output | 4000P/R 5000P/R |
Working Voltage | 10-30V | 5V/8V | Working TEMP | 0°Cto+70°C \ -40°Cto+100°C | |
Current Consumption | ≤100mA | ≤150mA | Storage TEMP | -30°Cto+80°C | |
Power Consumption | ≤3W | Ambient Humidity | 85%(non-condensing) | ||
Output Signal | Complementary | Drive | IP Code | IP 54 | |
Signal Form | AB square wave | AA-BB- square wave | Max RPM | 3000 RPM (max) | |
Output Current | ≤20mA | Axial & Radial Load | Axial 30N ,Radial 20N | ||
Rise & Fall Time | ≤1000nS | Weight | ≈0.3kg | ||
Output Frequency | ≥100kHz | Maximum Angle Acceleration | ≤10 rad/s | ||
Amplitude | VL≤1.5VDC | VL≤0.5VDC | Start torque 20°C | 0.02Ncm | |
VH≥Vcc-2.5 | VH≥2.5 | Vibration Endurance | Vibrating (50-2000Hz) | ≤100m/s (10g) | |
A,B Signal Accuracy | Duration of Signal | 1/2T±1/8T | Impact(11ms) | ≤1000m/s (100g) | |
Signal Phase Difference | 1/4T±1/8T | Case Material | FE | ||
Isolation | ≥10MΩ | Shaft Material | 2Cr13 | ||
Voltage Withstand | 500V 1min | Shaft Diameter | Φ5-8mm | ||
Resolution | 10-2500 PPR | Connection Type | 1MRadial Outlet |
Dimension
