IHU4808-001G-2000BZU-4P5L
YUMO
YM00000020
1
hejiang, China
speed
machine
5V DC

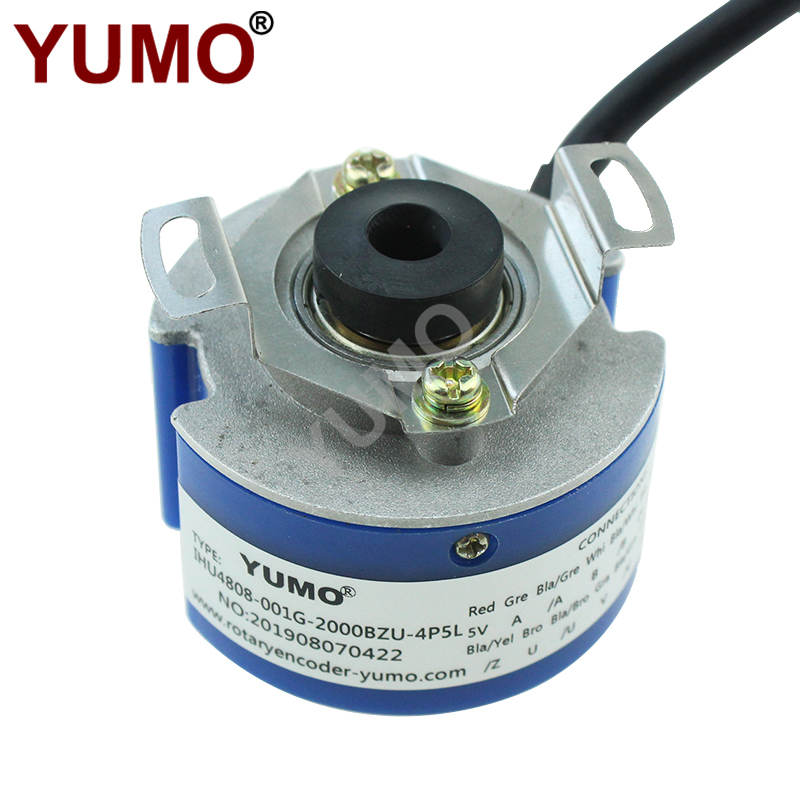

ROTARY ENCODER, IHU4808-001G-2000BZU-4P5L
CE
5-24v
5V DC
Automatic Control
5V
-20-70
Widely used in servomechanism , especially for servomotor.
Feature
With flex bracket flange, easy for installing, high performance.
Taper shaft design to ensure the firm connection
Wide resolution range and no requirement about signal adjustment
With ABZ UVW 6channels signal output , and can be connect to Line Drive(26LS31)RS422,offer 12 channels signal , and compatible with TTL
Ordering Information
Technical Specifications
Mechanical Specification | ||||
Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
6000 | <0.02Nm | Radial:20N, Axial:10N | 50G/11-ms | 10G 10-2000Hz |
Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
4*10-8Kgm2 | -40~85℃ | -40~85℃ | IP50 | 120g |
Connection Table
Signal | A | B | Z | A- | B- | Z- | Vcc |
Color | Green | White | Yellow | Green/ Black | White/ Black | Yellow/Black | Red |
Signal | U | V | W | U- | V- | W- | GND |
Color | Brown | Gray | Orange | Brown/Black | Gray/ Black | Orange/ Black | Black |
Dimensions(mm)
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
