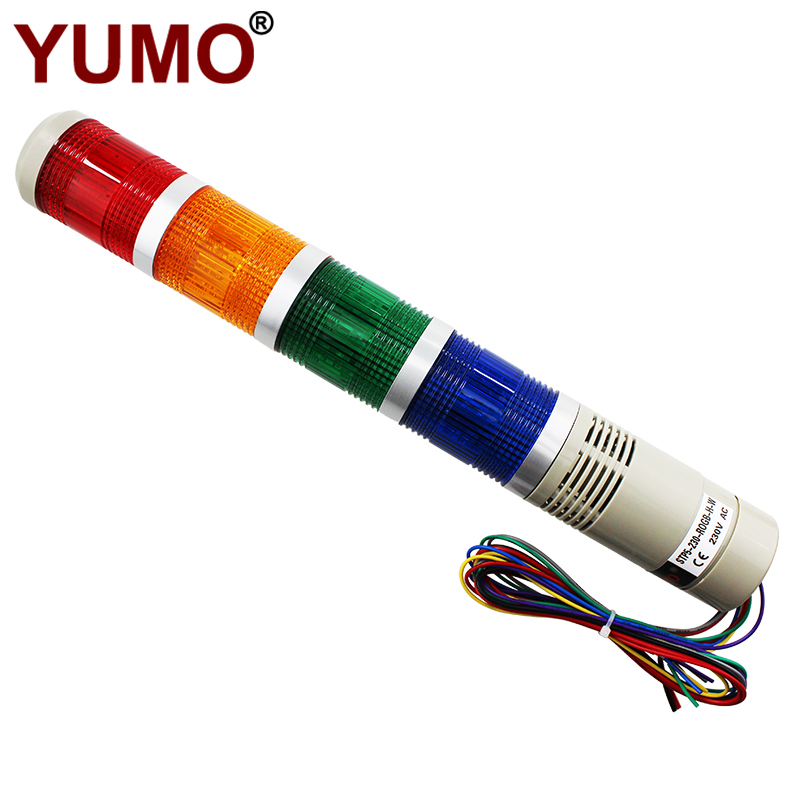

STP5-230-ROGB-H-W
YUMO
China
Emergency vehicles, engineering vehicles, fire police vehicles
The classification of warning lights includes single warning lights and combined warning lights. Generally, the warning light can produce products of different lengths according to different types of vehicles. The warning lamp is composed of a lamp and a lampshade, and the color of the lampshade can be changed according to the purpose.
High brightness LED type
Enhancing visibility by employms the special Light diffusion globe
LED Light source with a high degree of Wusi long Life bulbs
using various types of brackets with practicality and brilliant appearance
Flashes:60-80/min
Built-in buzzer type Volume:85dB
Material:lens-PC,Body-ABS
Certification:CE
Protection class:IP30
| STP5 | - | 230 | - | G | - | H |
| Model | Voltage | Color | Sound | |||
| STP5 | 12V | R-Red | ||||
| 24V | O-Orange | |||||
| 110V | G-Green | |||||
| 220V | B-Blue |
| Voltage | Signal Line Curent | Rush Current | Extemal CintactCapacity | Buzzer Line Current |
| AC/DC 12V | 0.357A | atb.4.8A | over 5A | 0.025A |
| AC/DC 24V | 0.185A | atb.2.4A | over 3A | 0.012A |
| AC 110V | 0.042A | aatb.0.6A | over 1A | 0.038A |
| AC 220V | 0.021A | aatb.0.4A | over 1A | 0.004A |
