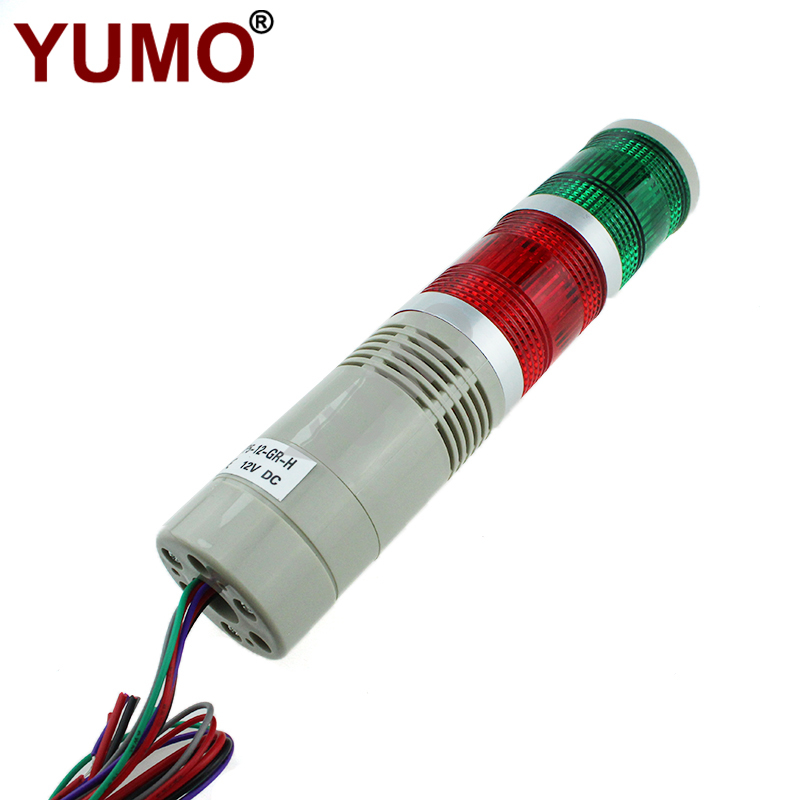

STP5-12-GR-H
YUMO
China
Emergency vehicles, engineering vehicles, fire police vehicles
High brightness LED type
Enhancing visibility by employms the special Light diffusion globe
LED Light source with a high degree of Wusi long Life bulbs
using various types of brackets with practicality and brilliant appearance
Flashes:60-80/min
Built-in buzzer type Volume:85dB
Material:lens-PC,Body-ABS
Certification:CE
Protection class:IP30
| STP5 | - | 12 | - | G | - | H |
| Model | Voltage | Color | Sound | |||
| STP5 | 12V | R-Red | ||||
| 24V | O-Orange | |||||
| 110V | G-Green | |||||
| 220V | B-Blue |
| Voltage | Signal Line Curent | Rush Current | Extemal CintactCapacity | Buzzer Line Current |
| AC/DC 12V | 0.357A | atb.4.8A | over 5A | 0.025A |
| AC/DC 24V | 0.185A | atb.2.4A | over 3A | 0.012A |
| AC 110V | 0.042A | aatb.0.6A | over 1A | 0.038A |
| AC 220V | 0.021A | aatb.0.4A | over 1A | 0.004A |
