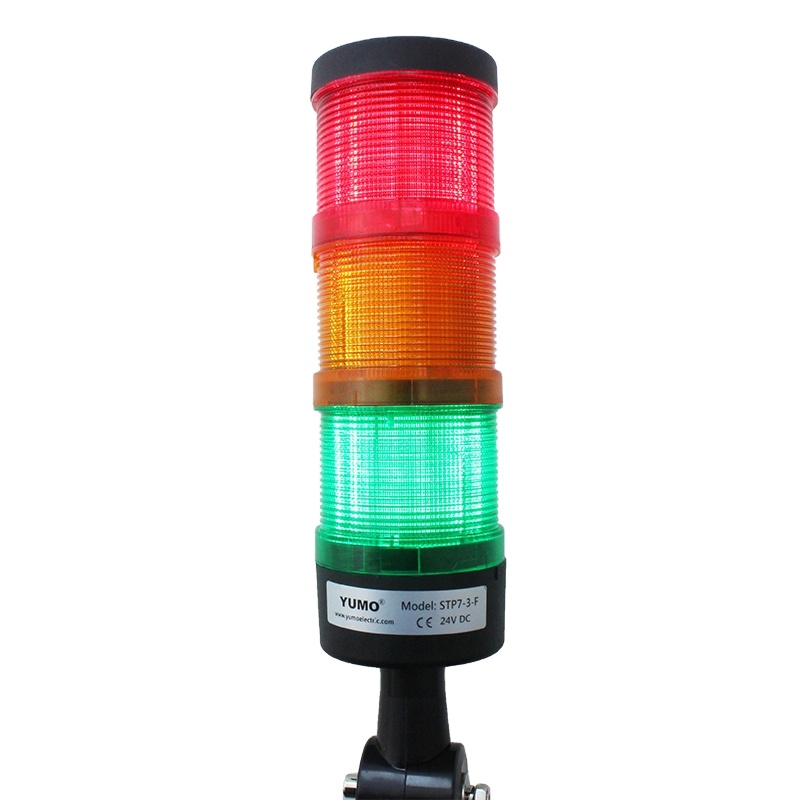

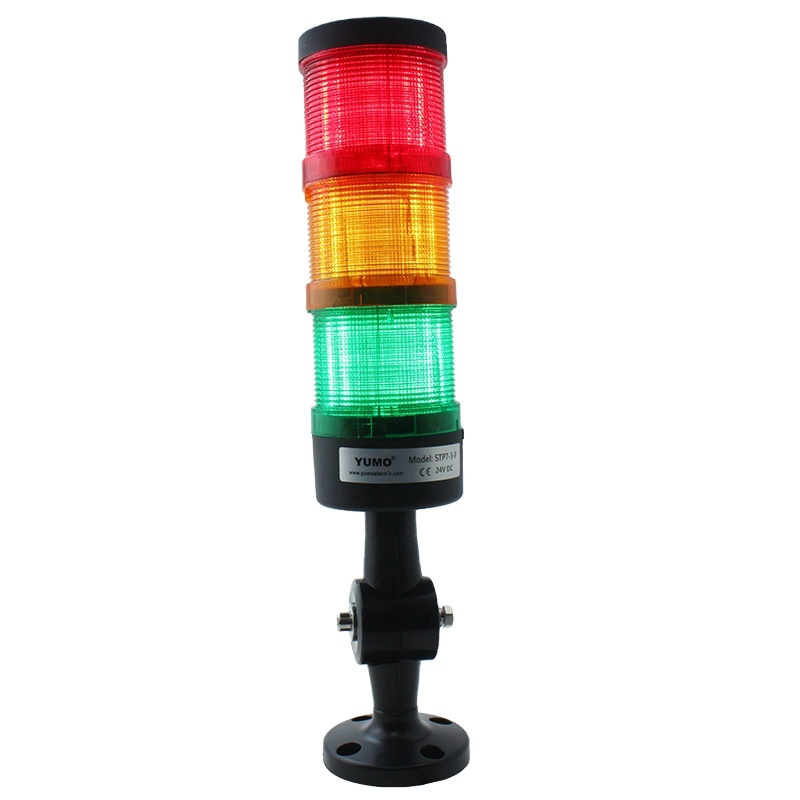

LTP-70-W3J 24V
YUMO
operating Voltage:AC/DC 24V
CE
Automation
STP5. STP7 and STP9 series multi-level warning tower lights can be equipped with all kinds of machinery.The light warn by light and buzzing alert for variety of unexpected situations. These warning lamps have : Stead light , Flash light ,changeable and with buzzer types . New technology with aseismic design,can significantly reduce of damage due to severe vibration of the machine. Fashionable design and mult-function of the YUMO waring light , is the preferred supporting for different types of mechanical equipment and lighting acoustic feel.
Features
The shell is made of Imported polycarbonate plastic Bright color, high strength;
The lighting element utilizes imported LED chip, integrated design, reliable performance, with built-in
switching model for changing between steady light . flash light and turn to ligh;
Installation and wiring is simple, diversifed installation, can be applied to any application environment,
Buzzer type sound with high-decibel alarm, the volume can be adjusted between 70-90 decibels (in one meter);
Operating temperature: 30C-60C (AC/DC 24V)1 -25C-60c (AC 90-250V);
Protection dlass: IP65.
Parameter
| Mode | Operating Voltage | Light Type/ Power | Luminous Forms |
| STP7 | AC/DC12V | LED/2W | Steady light/flashlight/turnto light |
| AC/DC24V | |||
| AC110V | |||
| AC220V |
Connection base
Wiring diagram
Installation
Certification
