XC series PLC as the controllers accept the signal and execute the program in the controller, to fulfill the requirements from the users. In this chapter, we start with the program forms, then introduce the main features, the supported two program languages etc.

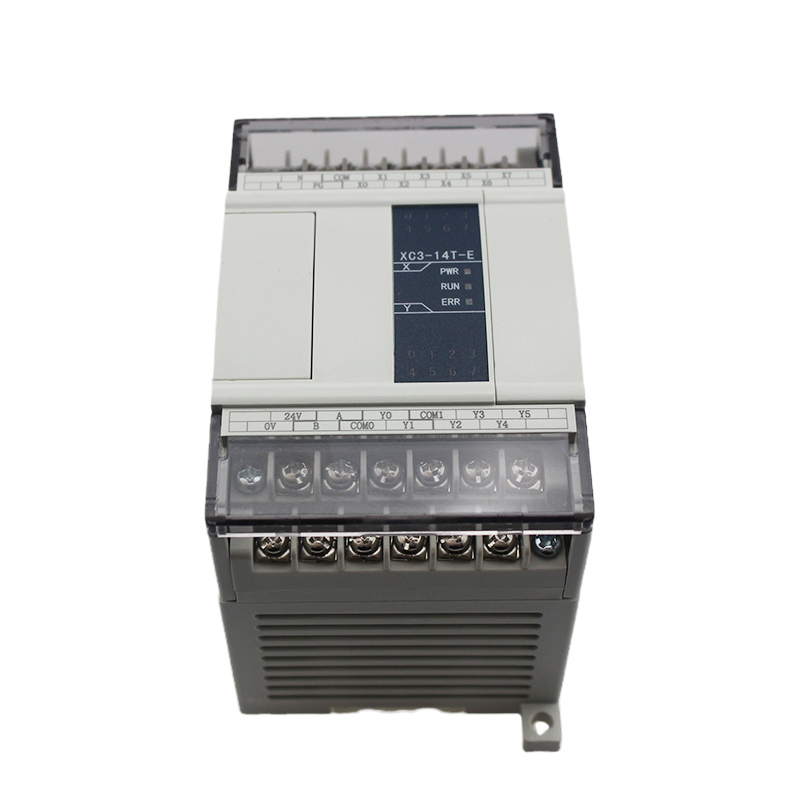

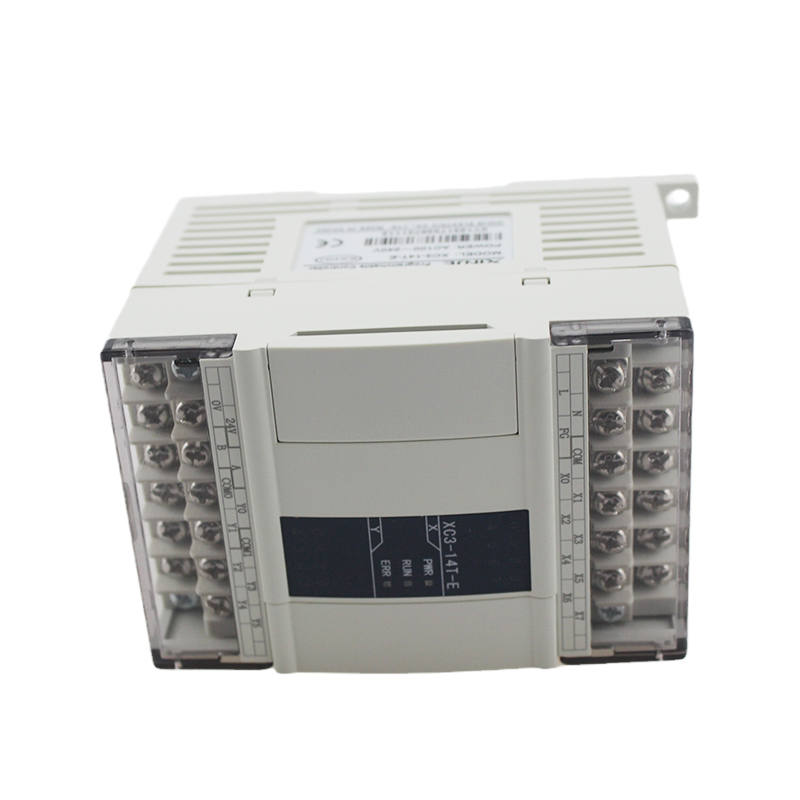

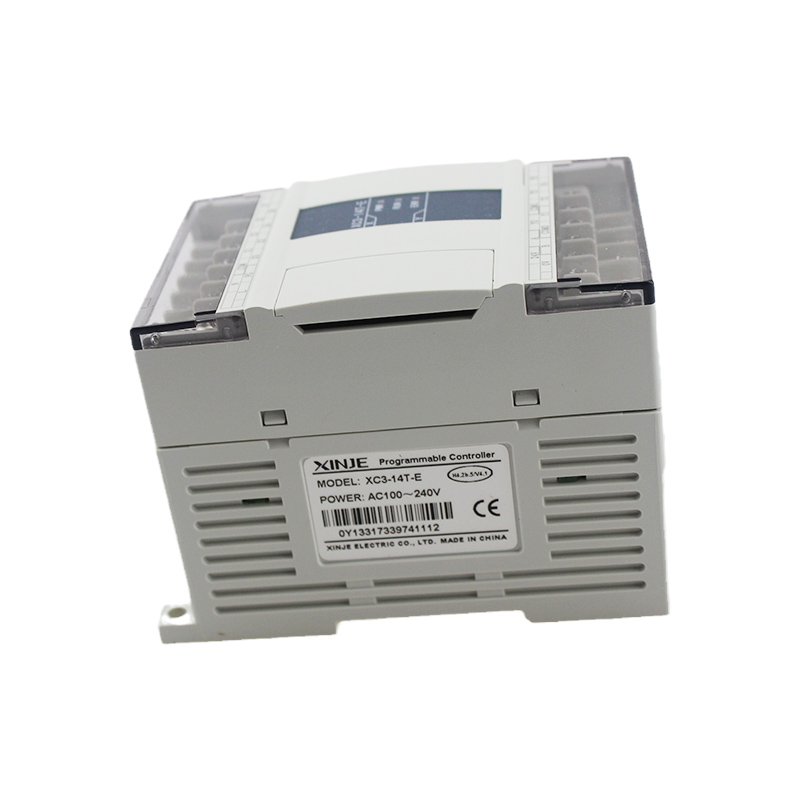

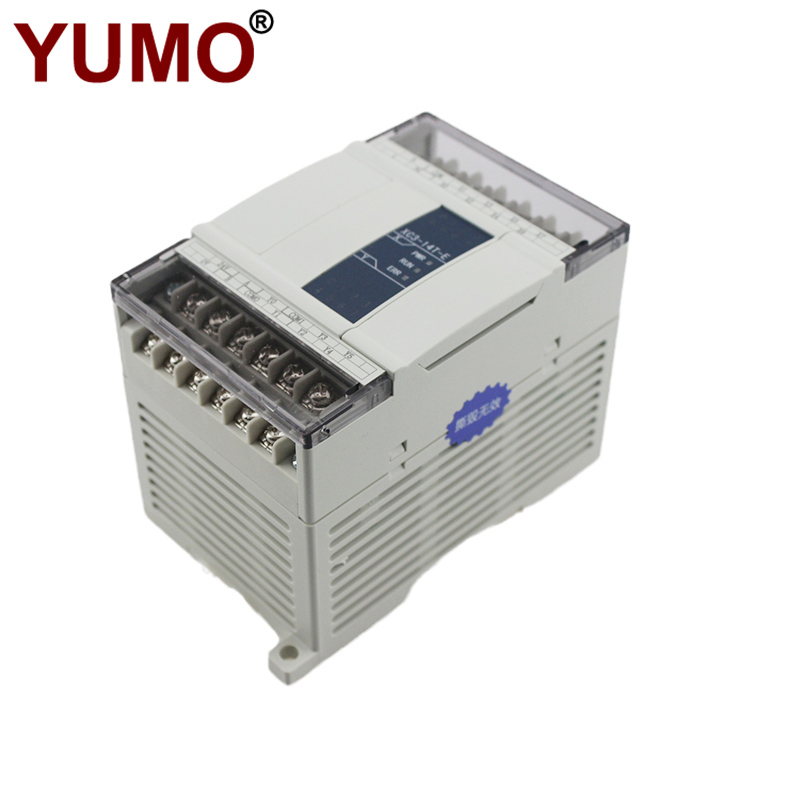

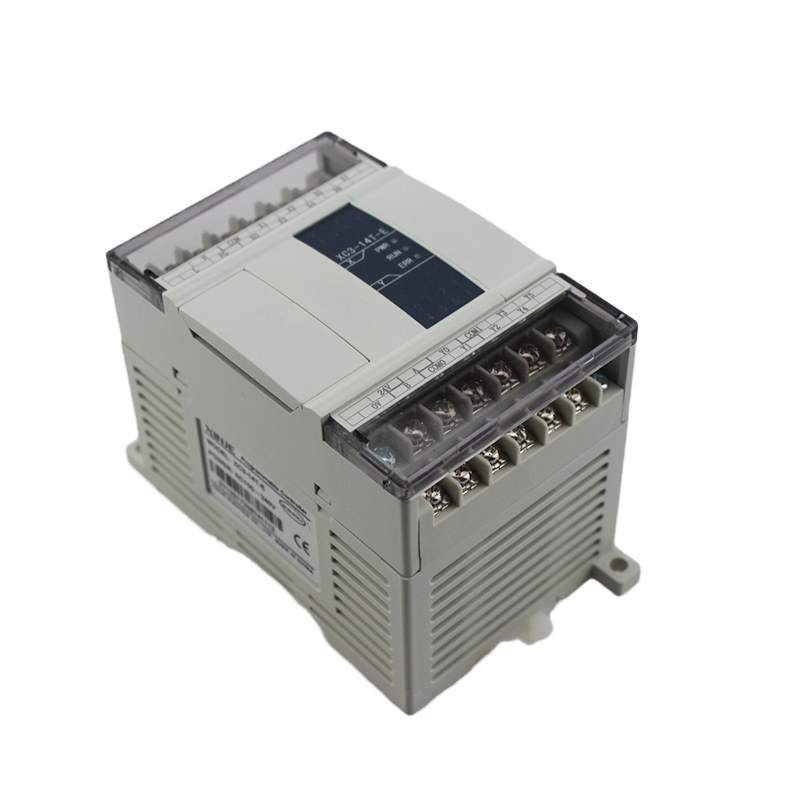

XC3-14T-E
Xinjie
1
ZHEJIANG
Automation controller
8 input+4 output
DC12V-DC24V
35mm-DIN rail or screw for installation
PLC
CE
10A,250V AC/DC30V
Relay output
47-63Hz
XC series PLC as the controllers accept the signal and execute the program in the controller, to fulfill the requirements from the users. In this chapter, we start with the program forms, then introduce the main features, the supported two program languages etc.
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks:64
Operation temp. :-20℃-55℃
Storage :-40℃-70℃
Protection: IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Dimensions: 72*90*58 (Unit, mm）
Certificate: CE,C-UL,ROSH,REACH
Installation: 35mm-DIN rail or screw for installation
Modify parameters via keypad LCD：no
Password protection : 4-digit number password protection or disable program upload function
Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII
Technical Index
Power supply: | |
Nominal voltage | DC 12-24V |
Operating limits | DC 10.8-28.8V |
Immunity from micro power cuts | Typ.5 ms |
Max. Startup current | Max. 0.25A |
Max. absorbed power | 3.2 W (10.8V dc) ; 3.8 W (28.8V dc) |
Protection against polarity inversions | Yes |
Input parameters: | |
Input No | 8 ( I1-I8 ) |
Digital input | 8 ( I1-I8 ) |
Analogue input | 4 ( I1-I4)(0..10V DC) |
Digital inputs( I5-I8 ) | |
Input voltage | DC0-28.8V |
Input signal0 | < 5V DC; <1mA |
Input signal1 | > 8 V DC;>1.7mA |
Input current | 2.3mA @ 10.8V dc |
Response time | 0 to 1 ：<1 ms ；1 to 0 ：<1 ms |
Maximum counting frequency | Typ.：4 HZ |
Sensor type | Contact or 3-wire PNP |
Input type | Resistive |
Isolation between power supply and inputs | None |
Isolation between inputs | None |
Inputs used as digital inputs( I1-I4 ) | |
Input voltage | DC0-28.8V |
Input signal0 | < 5V DC;<0.1mA |
Input signal1 | > 8 V DC;>0.3mA |
Input current | 0.4mA @ 10.8V dc |
Response time | 0 to 1 ：Typ. 1.5 ms ；1 to 0 ：Typ. 1.5 ms |
Maximum counting frequency | Typ.：4 HZ |
Sensor type | Contact or 3-wire PNP |
Input type | Resistive |
Isolation between power supply and inputs | None |
Isolation between inputs | None |
Inputs used as analog inputs( I1-I4 ) | |
Measurement range | DC 0---10V |
Input impedance | Min, 24KΩ ; Max. 72KΩ |
Input voltage | 28.8 V DC max |
Resolution | 9bit ,0.015V |
Accuracy at 25 °C | ± (Max.0.03)V |
Accuracy at 55 °C | ± (Max.0.06)V |
Isolation between analog channel and power supply | None |
Cable length | 10 m max. shielded and twisted |
Output parameters: | |
Output No. | 4 (Q1-Q4) |
Output type | Relay output |
Max. Allowable Power Force(Resistive) | CE: 10A,250V AC/DC30V |
Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
Mechanical life | 107 Operations at No Load condition |
Response time | Operate Time : 15 mSec. Max. |
Built-in protections | Against short-circuits: None |
Switch frequency: | |
Mechanism | 10Hz |
Resistor/light load | 2Hz |
Sensitive load | 0.5Hz |
Other parameters: | |
Weight | Approx.300g |
Installation Dimensions
Wiring Diagram
Input&Output
