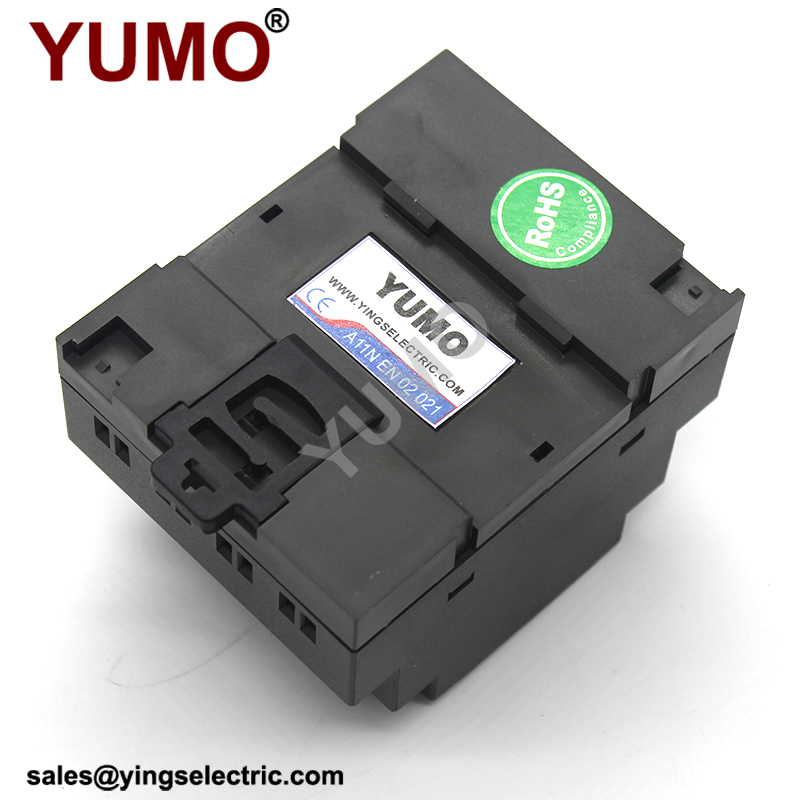

APB-12MTDL YUMO PLC Programmable Logic Controller

APB-12MTDL DC12V-24V, 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports, 4 points NPN transistor output,Q2、Q3 can be high-speed output ports, with LCD
  • APB-12MTDL

  • YUMO

Availability:

APB Series PLC,

APB-12MTDL

DC12V-24V, 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports, 4 points NPN transistor output,Q2、Q3 can be high-speed output ports, with LCD


Features:

1,Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal max. configuration: 7 I/O
    extension modules, 1 voice module, and 1 SMS module;
2,Program memory capacity: 320 FBDs, EEPROM;
3,It is allowed to place a Li-ion battery to power the clock;
4,Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs
    4-20mA and 2 analog outputs 4-20mA;
5,High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;
6,MODBUS protocol, and can be connected to SH-300 (Text Panel);
7,New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.;

Technical Parameters:
Item APB-12MRD(L) APB-12MTD(L) APB-12MGD(L) APB-22MRA(L) APB-24MRDL
APB-22MRD(L) APB-22MTD(L) APB-22MGD(L) APB-12MRA(L)
Surge Immunity   2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing)   ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature  -10℃~+55℃
Storage Temperature  -40℃~+70℃
Ambient Humidity  5%~95%RH
Degree of Protection   IP20(Non-waterproof)
Installation   Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm)   71*99*58.5(12 points);126*99*58.5(22 points);126*99*58.5(24 points)
Programming Language  FBD
Points   12 points/22 points/24 points/can support 7 I/O extension modules
Memory Capacity   320 FBDs
Filtering Duration of Input Signal   It can be set to improve the stability of signal
Real-time Clock   160h,can place a Li-ion battery if it is necessary
Password Protection   Multiple passwords protection
High-speed Operation   At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz
Analog Operation   At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection   Yes
Simulate Monitoring   Yes
Communication Interface   TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate  9600bps
Communication Protocol  MODBUS RTU

Power Supply
Rated Voltage DC12-24V DC12-24V DC12-24V AC110-220V DC12-24V
Permissible Range DC11-28V DC11-28V DC11-28V AC85V-265V DC11-28V
Power Consumption 3.5w -- -- -- --
Digital Input
Input Type NPN/PNP NPN/PNP NPN/PNP NPN/PNP NPN/PNP
Input Signal 0 DC0-5V DC0-5V DC0-5V AC0-70V DC0-5V
Input Signal 1 DC8.5-28V DC8.5-28V DC8.5-28V AC85-265V DC8.5-28V
Isolation Non-isolation Non-isolation Non-isolation Photoelectric isolation Non-isolation
Isolated Group -- -- -- 14 --
Isolated Voltage -- -- -- 2500/5000Vr.m.s --
Digital Output
Output Type Relay Transistor(NPN) Transistor(PNP) Relay Relay
Rated Voltage 24VDC/220VAC 24VDC 24VDC 24VDC/220VAC 24VDC/220VAC
Isolation Method Relay isolation - - Relay isolation Relay isolation
Analog Input
Input Type (DC0-10V)/8 inputs (DC0-10V)/8 inputs (DC0-10V)/8 inputs -- (4-20mA)/2 inputs
(DC0-10V)/12 inputs (DC0-10V)/12 inputs (DC0-10V)/12 inputs (DC0-10V)/12 inputs
Analog Output
Output Type -- -- -- -- 4-20mA/2inputs
A/D Conversion -- -- -- -- 12 bits
Isolation Non-isolation Non-isolation Non-isolation Non-isolation Non-isolation
High-speed Operation

4 inputs /10KHz 4 inputs /10KHz 4 inputs /10KHz -- 4 inputs /10KHz

Input Type Support single-phase counter and two-phase counter Support single-phase counter and two-phase counter Support single-phase counter and two-phase counter -- Support single-phase counter and two-phase counter


2 outputs / 10KHZ 2 outputs /10KHZ





Output Type -- Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse -- --

Type
Note: The economical type is supplied without LCD panel, and the basic type is supplied with LCD panel.
APB-12MRD(L) DC12V-24V 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports 4 points relay output
APB-12MTD(L) DC12V-24V 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports 4 points NPN transistor output
Q2、Q3 can be high-speed output ports
APB-12MGD(L) DC12V-24V 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports 4 points PNP transistor output
Q2、Q3 can be high-speed output ports
APB-22MRA(L) AC100V-240V 14 points input 8 points relay output
APB-22MRD(L) DC12V-24V 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports 8 points relay output
APB-22MTD(L) DC12V-24V 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports 8 points NPN transistor output
Q2、Q3 can be high-speed output ports
APB-22MGD(L) DC12V-24V 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports 8 points PNP transistor output
Q2、Q3 can be high-speed output ports
APB-24MRDL DC12V-24V 2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports 6 points relay output + 2 analog outputs
APB-22ERA AC100V-240V 14 points digital input 8 points relay output
APB-22ERD DC12V-24V 14 points digital input 8 points relay output
APB-22ETD DC12V-24V 14 points digital input 8 point NPN transistor output
APB-22EGD DC12V-24V 14 points digital input 8 point NPN transistor output

Auxiliary Module
APB-SMS supports I/O control and SMS alarm, as well as receives and sends short message in another mode
APB-EXPMC applied in the long-distance signal transmission interface and constitutes a nerwork with 485 bus
APB-EXNET use cable network and TCP/IP protocol to link the remote netw
