TGA63-MT
YUMO
YM00000022
1
China
Touch screen
Human Machine Interface
CE RoHS
| TGA63 | Screen size | 10.1 |
| Resolution | 1024*600 | |
| LCD | TFT LCD display, LED backlight | |
| Display color | 16.77 million colors | |
| Brightness (cd/m2) | 200 | |
| Touch panel | 4-wire resistor mode touch screen | |
| LCD life | More than 50000 hours, ambient temperature 25 ℃, 24-hour operation | |
| Memory | 128MB | |

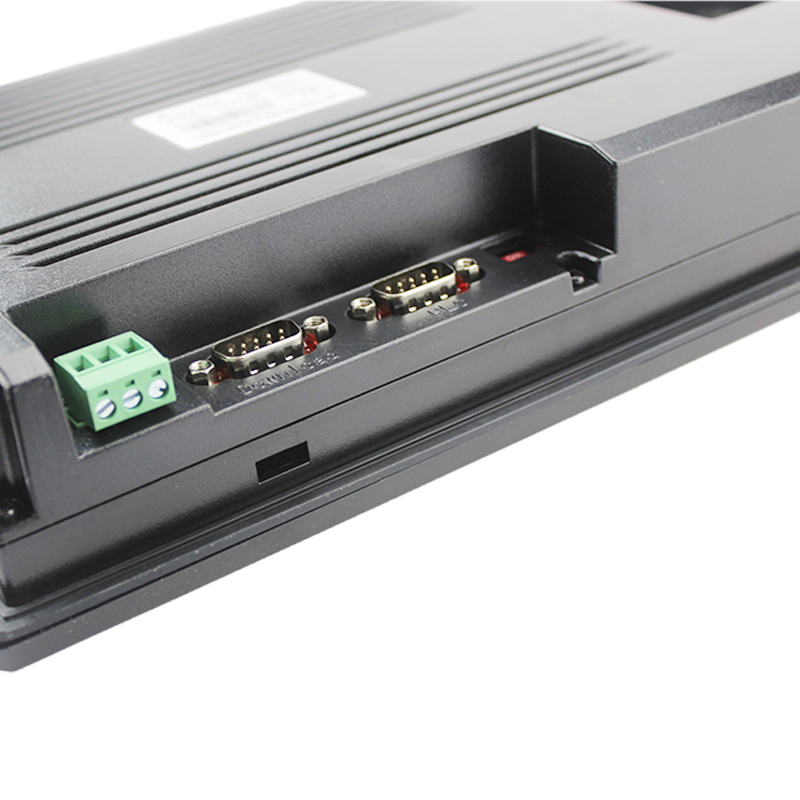

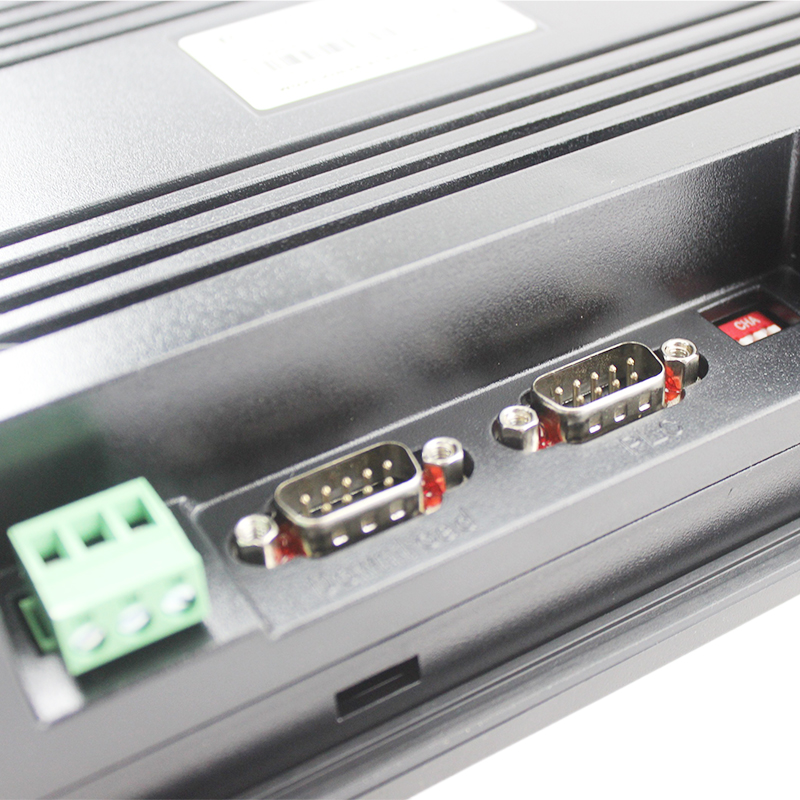

| PLC port | RS232/RS422/RS485 (TG765-XT-C: RS232. TG465-XT: RS232/RS485) | |
| Download port | RS232/RS485 (TG765-XT-C, TG465-MT/UT/ET/XT don’t have this port) | |
| USB port 1 | USB-B (accord with USB2.0), USB download port | |
| USB port 2 | USB-A (accord with USB2.0), flash disk port, UT/ET model supported | |
| Ethernet port | -ET model supported | |
| Input voltage | DC24V (voltage range: DC22V~DC26V) | |
| Consumption current | 270mA | |
| Allowable power loss | Below 10ms (actual power loss less than 1s) | |
| Voltage impulse resistance | AC1000V, 10mA, less than 1 minute (signal and ground) | |
| Insulation resistance | Above DC500V, 10MΩ (signal and ground) | |
| Operation temperature | ||
| Storage temperature | -20℃~60℃ | |
| Operation humidity | 10%RH~90%RH (no condensation) | |
| Anti interference ability | Interference voltage: 1500Vp-p pulse period, duration 1us: 1 minute) | |
| Air | No corrosive gas | |
| Cooling method | Natural air cooling | |
| Protection level | The front cover accords with IP65 | |
| Product dimension (mm) | 272.2*191.7*51.2 | |
| Open hole dimension (mm) | 260.2*179.7 | |
| Open hole dimension (mm) | 260.2*179.7 |
