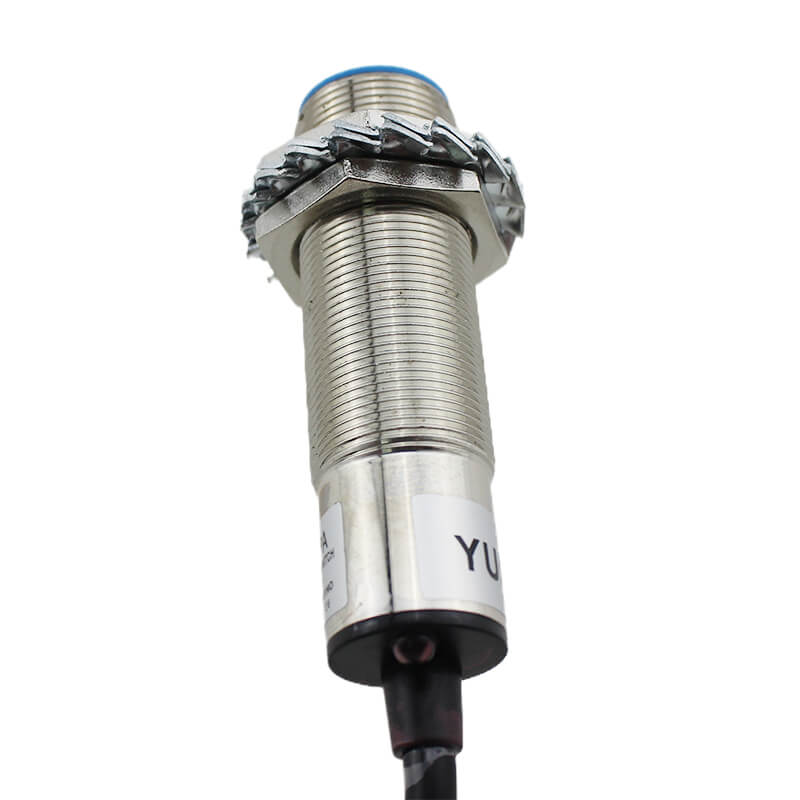

Proximity Sensor Switch M18 Flush Type PNP NO Contact IP67 LM18-3005PAT

  • LM18-3005PAT

  • YUMO

  • 2

  • China

  • Sensing

  • 6-36V

  • Inductive proximity sensor

  • CE RoHS

Availability:



LM18 Inductive proximity switch
Structural category Connector type
Detecting range  5mm
Overall dimensions LM18-T
Flush

10-30VDC









90-250VAC

  NPN NO LM18-3005NAT
NC LM18-3005NBT
NO+NC LM18-3005NCT
  PNP NO LM18-3005PAT
NC LM18-3005PBT
NO+NC LM18-3005PCT
2 Wires NO LM18-3005LAT
NC LM18-3005LBT
SCR NO LM18-2005AT
NC LM18-2005BT
NO+NC
Relay output
                          Detecting rang 8mm
Non-flush

10-30VDC









90-250VAC

NPN NO LM18-3008NAT
NC LM18-3008NBT
NO+NC LM18-3008NCT
PNP NO LM18-3008PAT
NC LM18-3008PBT
NO+NC LM18-3008PCT
2 Wires NO LM18-3008LAT
NC LM18-3008LBT
SCR NO LM18-2008AT
NC LM18-2008BT
NO+NC
Relay output



Specifications:

Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC< 3V; AC< 10V
Consumption current DC<15mA; AC<10mA
Standard detected object 18×18×1(A3 Iron)
Repeated precision 0.02
Response Frequency 200Hz/10Hz
Working environment temperature  -25℃~+65℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
