Understanding the Basics of Rotary Encoders

Views: 469     Author: Kevin     Publish Time: 2023-07-27      Origin: Site

Understanding the Basics of Rotary Encoders

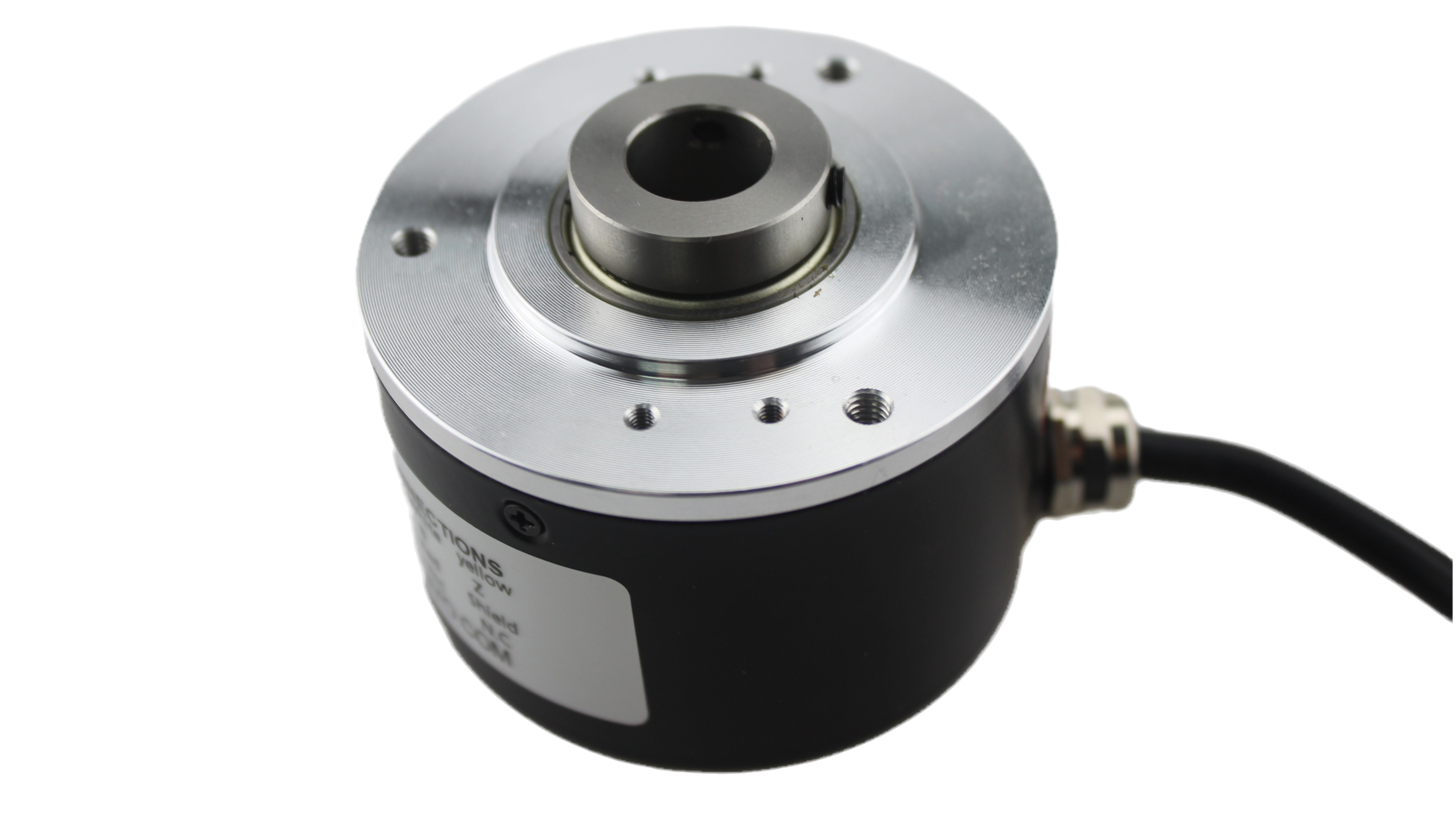

Rotary encoders, often referred to as rotary encoders, are electromechanical devices used to convert the angular position or motion of a shaft into an analog or digital signal. These devices are widely used in various industries, including industrial automation, robotics, manufacturing, and motion control systems. In this article, we will delve into the working principles of rotary encoders and explore their applications.

Rotary encoders consist of a rotating disk, which is connected to the shaft whose position or motion needs to be monitored, and a stationary sensor. The disk typically has evenly spaced slits or holes, while the sensor is designed to detect the changes in the light or magnetic field passing through the disk. This detection process allows the rotary encoder to accurately measure the rotation angle and speed of the shaft.

There are two main types of rotary encoders: incremental and absolute encoders. Incremental encoders provide information about changes in position or motion, while absolute encoders provide the exact angle or position of the shaft.

Let us now discuss the working principles of these two types of rotary encoders individually.

Incremental encoders produce a train of pulses as the shaft rotates. These pulses are generated when the slits or holes on the disk pass through the sensor. The number of pulses generated per revolution is defined by the resolution of the encoder. By counting these pulses, the position and speed of the shaft can be determined accurately. However, incremental encoders do not provide the absolute position of the shaft, which means that the counting needs to start from a known reference point.

On the other hand, absolute encoders provide a unique digital code for each shaft position. These encoders use a binary or gray code system to represent the position of the shaft accurately. The disk of the absolute encoder has multiple concentric circles, each with different patterns of slits or holes. The sensor detects these patterns and converts them into a digital code. The advantage of absolute encoders is that they do not require a reference point, and the exact position of the shaft can be determined immediately.

Rotary encoders have a wide range of applications. In industrial automation, they are used in motor control systems to accurately monitor the speed and position of rotating machinery. Rotary encoders are also crucial components in robotics, where they provide feedback for the control of robotic arms and joints. They are extensively used in CNC machines for precise positioning of cutting tools. Additionally, rotary encoders find their applications in aerospace, medical equipment, and numerous other industries where accurate motion control is essential.

In conclusion, rotary encoders are vital components in various industries, helping to measure the angular position and speed of rotating shafts accurately. They can be divided into incremental and absolute encoders, each serving different purposes. Incremental encoders provide information about changes in position or motion, while absolute encoders provide the exact angle or position of the shaft. With their precise measurements, rotary encoders contribute to the efficiency, accuracy, and safety of industrial systems.
