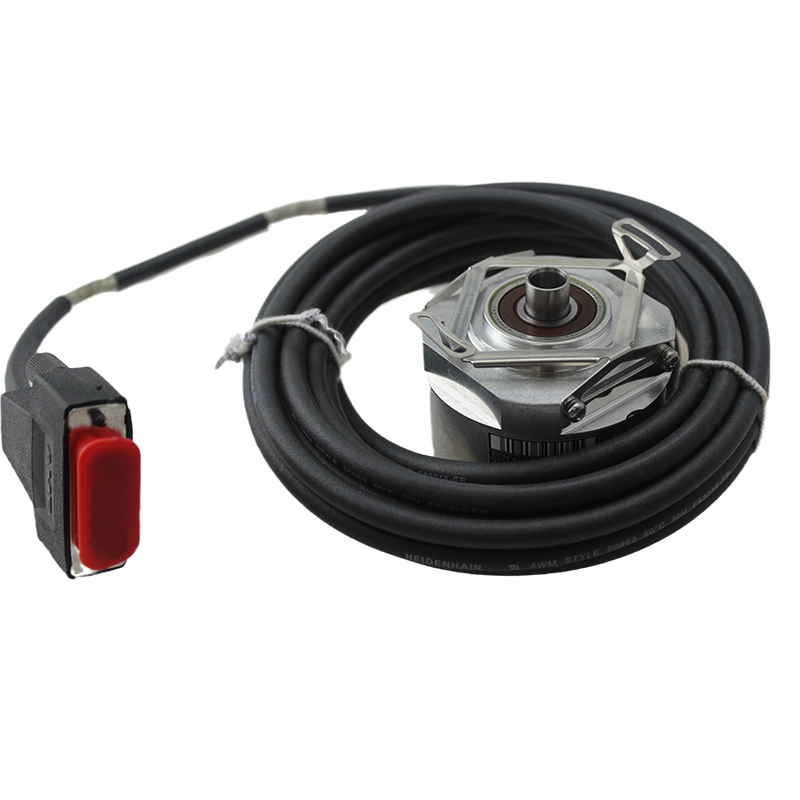

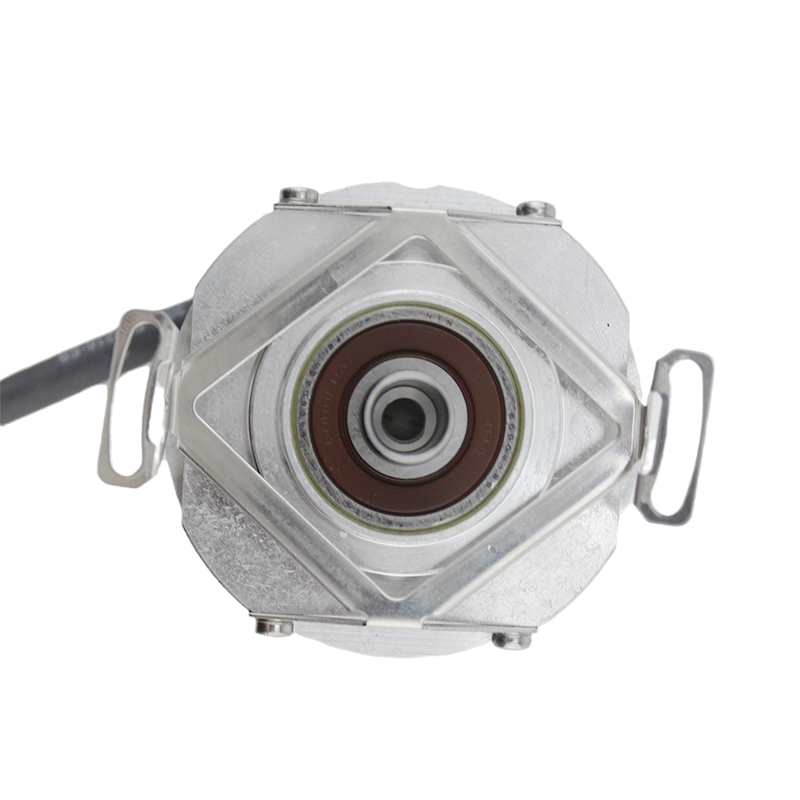

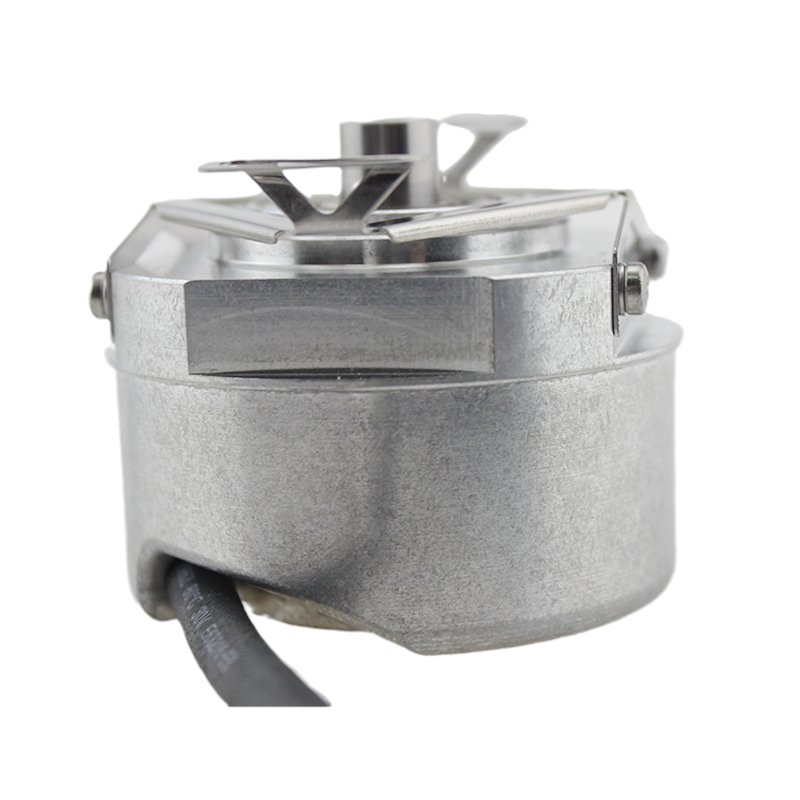

Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder

• Absolute rotary encoders for operating temperatures up to 115 °C, incremental rotary encoders for operating temperatures up to 120 °C
• Rotary encoders with mounted stator coupling with high natural frequency—virtually eliminating any limits on the bandwidth of the drive
• Absolute rotary encoders with purely digital data transfer— suited for the HMC 6 single-cable solutions—or complementary sinusoidal incremental signals
• Incremental rotary encoders for digital speed control with sinusoidal output signals of high quality—even at high operating temperatures
• Incremental rotary encoders with additional commutation signal for synchronous motors
• Incremental rotary encoders with TTL-compatible output signals
  • ECN 413 2048 16S15-2K

  • HEIDENHAIN

  • 1

  • China

  • encoder

  • DC 3.6V to 14V

Availability:

 Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder

Technical Specifications

ECN 413 Interface Ordering designation  Position values/revolution  Elec. permissible speed/Deviations Line count Cutoff frequency –3 dB  Voltage supply
EnDat 2.2

EnDat01 8192 (13 bits)

1500 rpm/±1 LSB 12 000 rpm/±50 LSB

2048  ≥400 kHz DC 3.6 V to 14 V
Power consumption (max.)  Current consumption (typical)  Mech. permiss. speed n  Starting torque Max. operating temp.  Min. operating temp.  Mass
3.6V:0.6W 14V:0.7W 5V:85mA (without load)  ≤15000rpm  0.01Nm(at20°C)  100°C

Fixed cable: –40°C

Moving cable: -10°C

0.25 kg





Dimensions(mm)

parameter




ECN 413 2048 16S15-2K (3)ECN 413 2048 16S15-2K (7)ECN 413 2048 16S15-2K (8)ECN 413 2048 16S15-2K (11)ECN 413 2048 16S15-2K (12)ECN 413 2048 16S15-2K (1)
