General Push Button Connector for 19mm Switch

This connector is a universal 19mm metal button connector.
The plug-in is used for electrical safety when a single button is used
  • P-19-2
  • YUMO
  • 5
  • China
  • connect
  • connect switch and power
Availability:
Inquire Add to Basket

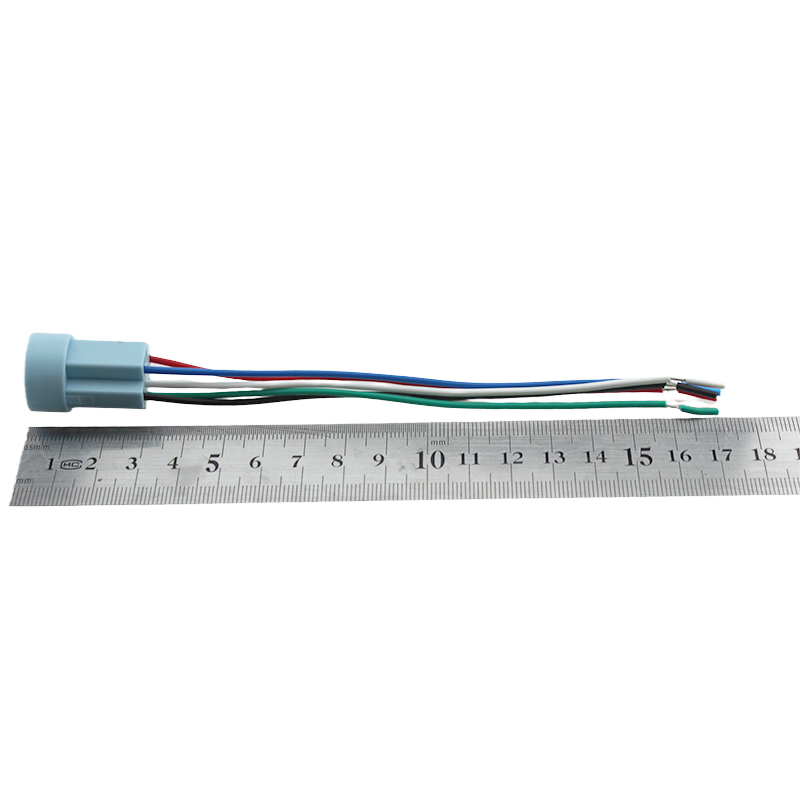

General Push Button Connector for 19mm Switch

整体 (4)

This connector is a universal 19mm metal button connector.

The plug-in is used for electrical safety when a single button is used

Product Image

P-19-2 (1)P-19-2 (2)P-19-2 (3)

Specification

Type P-19-2
Length
 17(±0.5)cm
Diameter 19(±0.5)mm
Number of the wires of each connector
 5
Number of holes
 8 (3 fo them are without spring sheet holder)

整体 (6)

Application

ABS19S-P11 (1)
