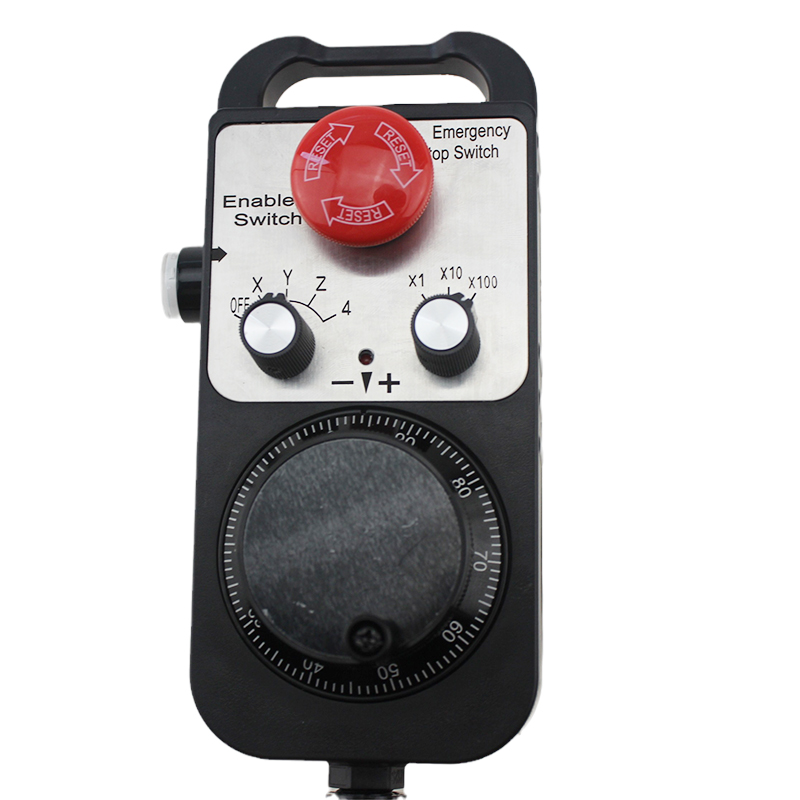

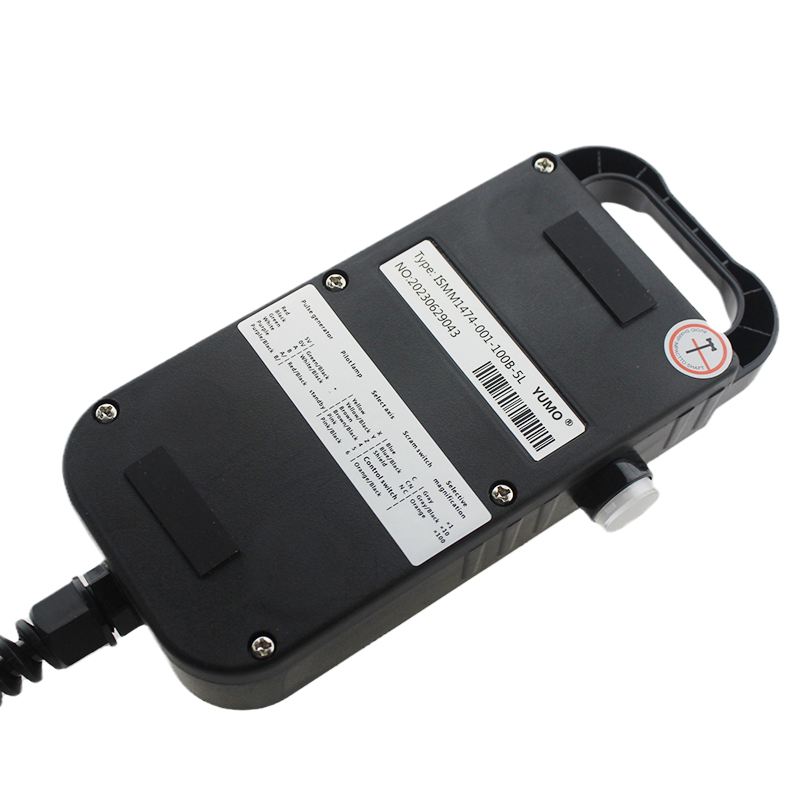

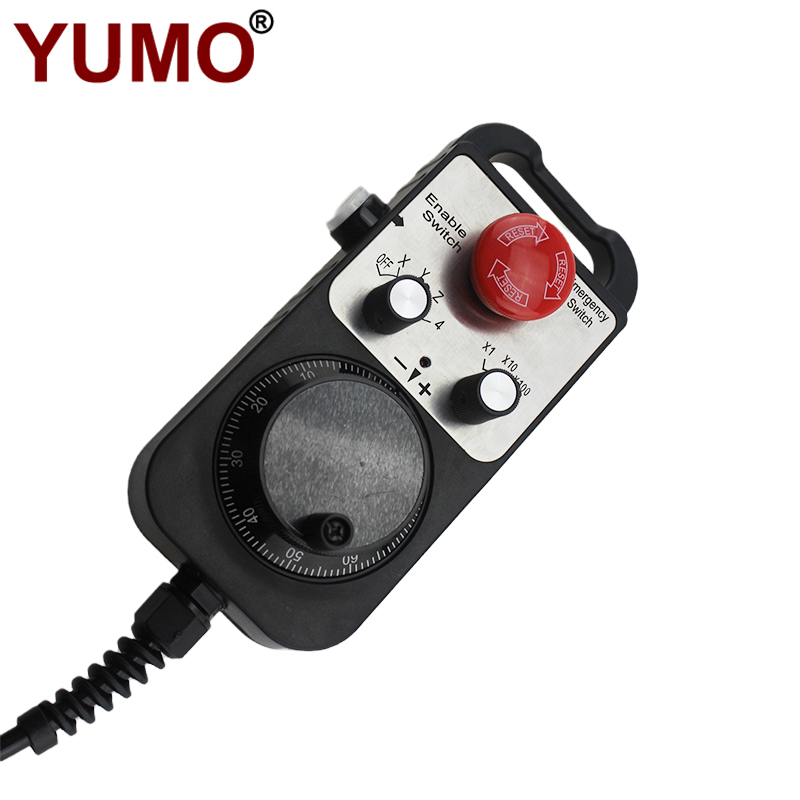

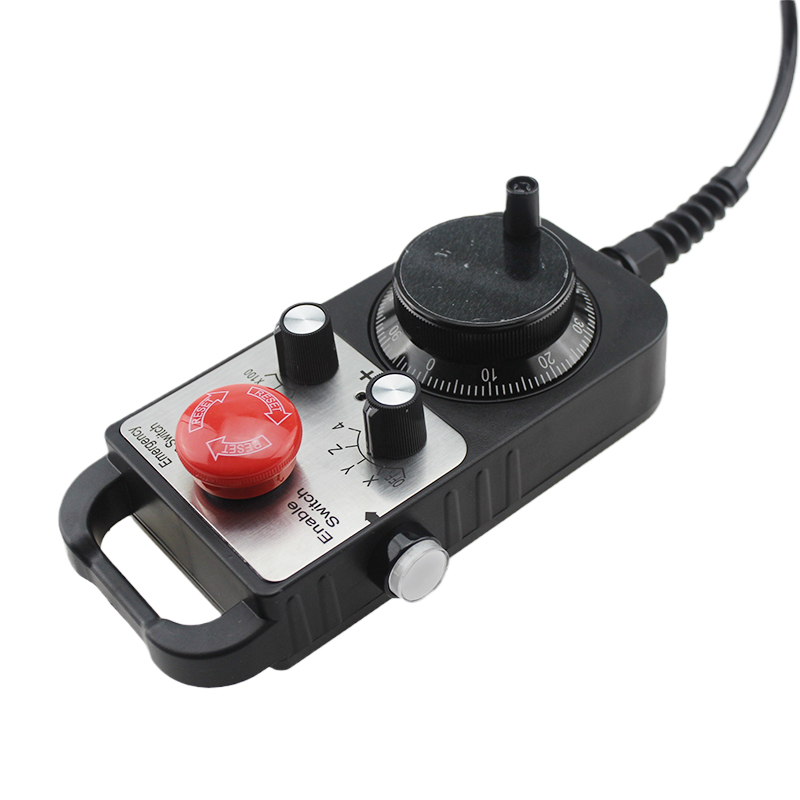

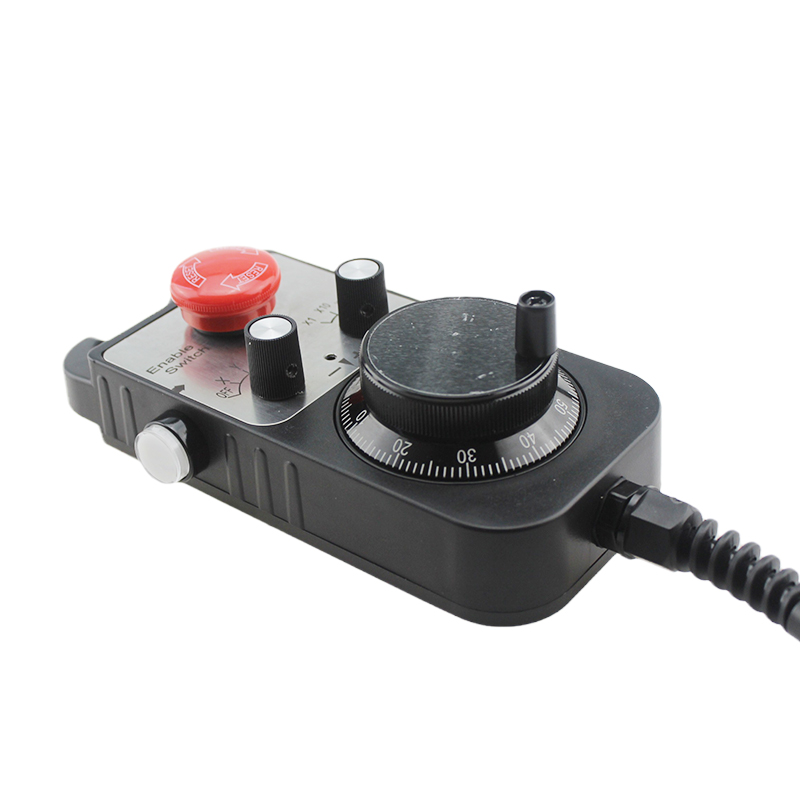

ISMM1474-001-100B-5L
YUMO
1
China
genereally
Note:
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5VDC,12VDC option
Technical Specifications
Electrical Specification | ||||
Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.2512V |
Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
Load current | 40mA | 40mA | 40mA | 60mA |
High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 20ns |
Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
Mechanical Specification | ||||
Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
600 | -25~70℃ | -30~85℃ | IP50 | 750g |
Dimensions(mm)
Connection Table
Item | Wire color | Signal | Note |
1 | Red | +5v | Pulses generator MPG |
2 | Black | 0v | |
3 | Green | A | |
4 | White | B | |
3*(or 17) | Purple | A- | When Line driver |
4*(or 18) | Purple/black | B- | |
5 | Green/black | + | Indicator |
6 | White/black | - | |
OFF | Axis selection | ||
7 | Yellow | X | |
8 | Yellow/black | Y | |
9 | Brown | Z | |
10 | Brown/black | 4 | |
9*(or 15) | Pink | 5 | select the 5th, 6th axis |
10*(or 16) | Pink/black | 6 | |
11 | Grey | X1 | Select multiple |
12 | Grey/black | X10 | |
13 | Orange | X100 | |
14 | Orange/black | COM | Control switch |
19 | Red/Black | Back up | |
Shielding |
Product Description:
The Machine Manual Pulse Generator is an essential tool for any business looking to improve the accuracy and precision of their machines. With its intuitive design and easy-to-use interface, this versatile device provides precise and reliable control of machine movements, ensuring maximum efficiency and productivity.
Features:
- Available in a variety of sizes and configurations
- Intuitive design for easy installation and use
- Suitable for a wide range of applications
- Robust construction for long-lasting performance
- Provides precise and reliable control of machine movements
Benefits:
- Improves accuracy and precision
- Reduces downtime and maintenance costs
- Ensures safety for employees and equipment
- Increases productivity and profitability
- Provides real-time data for informed decision-making
Applications:
- CNC machines and machine tools
- Robotics and automation systems
- Material handling and conveyors
- Printing presses and paper converting equipment
- And more!
Upgrade your business and take control of your operations with the Machine Manual Pulse Generator. Our versatile device is designed to provide precise and reliable control of machine movements, ensuring maximum efficiency and productivity. Contact us today to learn more about our wide range of Machine Manual Pulse Generator solutions.
