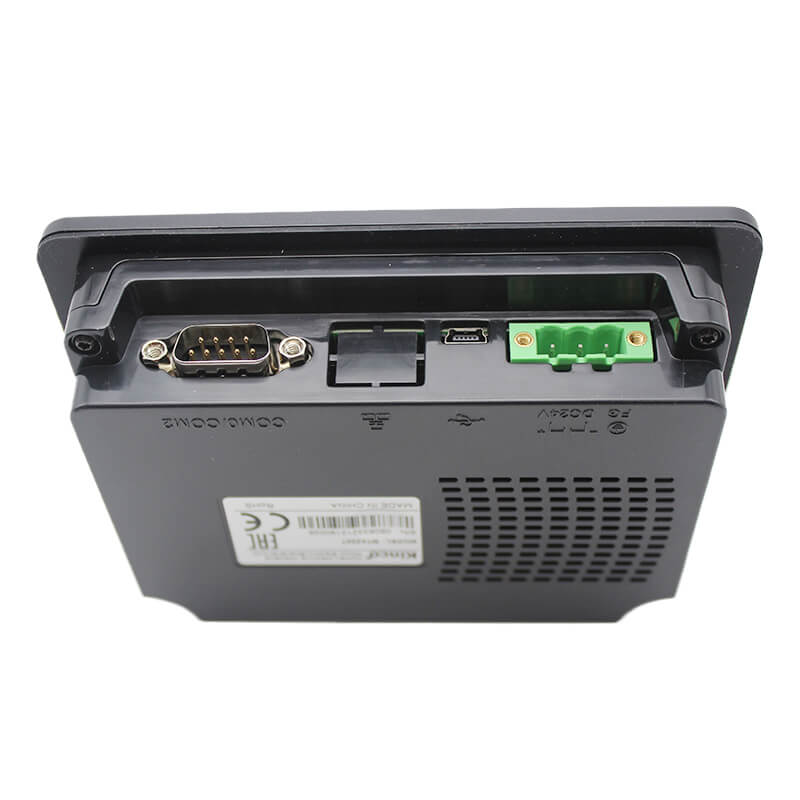

HMI Human Machine Interface touch screen 4.3" MT4230TE

Product Description MT4000 series HMI use 32-bit RISC CPU and streamlined LINUX kernel, you can display a variety of true-color graphics format, and its superior processing speed and software to meet the needs of most users. Support and the vast majority of the PLC to communicate directly, and can easily exchange data between their connected devices. MT4000 series has a direct line simulation, indirect line simulation, high-capacity user configuration program memory space, compatible with the standard C language macro functions fit the customer needs quickly and effectively complete the field data collection, computing, control.
  • MT4230TE

  • kinco HMI

  • 1

  • China

  • Touch screen

  • Human Machine Interface

  • CE RoHS

Availability:

Model

MT4220T

MT4230TE

Performance specification

Display

4.3" TFT

Resolution

480*272

Color

65536

Backlight

LED

Brightness

300cd/ m²

Backlight life

50000 hours

Touch Panel

4-wire precision resistance network

Processor

32-bit 400MHz RISC

32-bit 800MHz RISC

Memory

128M FLASH + 64M SDRAM

U Disk

None

1USB host

SD Card

None

 1 SD card

Recipe memory & RTC

512KB + RTC

Printer port

Serial port

Serial port/USB port

Ethernet

None

Support

Program download

USB SLAVE/Serial port

USB SLAVE/Serial port/Ethernet port

COM port

COM0:RS232/RS485-2/RS485-4,COM2:RS232

Function Key

None

Software

EV5000 V1.6

Electrical specification

Rated power

3.5W

Rated voltage

DC24V

Input range

12~28VDC

Power down allowed

<3ms

Insulation resistance

Greater than 50MΩ@ 500V DC

Dielectric strength test

500 VAC 1 minute

Structure specification

Shell color

Black

Shell material

ABS

Dimensions(mm)

154×89×59.8mm

Cutout size(mm)

145×81mm

Weight

0.34 Kg

Environment specification

Operating temperature

 -20~55 ° C

Operating humidity

10~90% non-condensing

Storage temperature

 -25~60 ° C

Storage humidity

10~90% non-condensing

Shockproof test

10~25Hz (X, Y, Z direction, 2G, 30 minutes)

Cooling method

Natural air cooling

Certification

Degree of protection

IP65 (front panel)

CE certification

Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards

FCC compatibility

Complies with FCC Class A
