YUMO LF-B-D30L35 8*8 universal coupling shaft coupling quick coupling

Product characteristics:
   Slotted and fully integrated metal wound coupling in the bar
   Using super-hard aluminum with the highest strength among aluminum alloys
   Slotted leaf springs allow eccentricity, eccentricity, and axial deviation
  • LF-B-D30L35 8*8

  • YUMO

  • 20

Availability:

 YUMO LF-B-D30L35 8*8 universal coupling shaft coupling quick coupling


Product characteristics



  • Slotted and fully integrated metal wound coupling in the bar

  • Using super-hard aluminum with the highest strength among aluminum alloys

  • Slotted leaf springs allow eccentricity, eccentricity, and axial deviation



YUMO LF-B-D-D20L25 6X6 Torx type flexible coupling rotary encoder coupling

Proiect type d1       d2 D L L1 M Rated torque Max eccentric shaft angle highest Work
 more       more torque error angle speed
LF 2-8 14 22 7 M2.5 1.1N.m 2.2N.m +0.6mm 1.0° 19000 Synchronous
operation
4-10 20 30 10 M3 2.8N.m 5.6N.m +0.6mm 1.0° 17000
4-12 25 34 11 M4 6.0N.m 12N.m +0.6mm 1.0° 16000
8-16 30 40 11 M4 6.5N.m 13N.m +0.6mm 1.0° 12000
14-24 40 55 19.5 M6 32N.m 64N.m +0.8mm 1.0° 10000
14-24 40 66 25 M6 32N.m 34N.m +0.8mm 1.0° 10000
14-28 55 78 30 M6 46N.m 92N.m +0.8mm 1.0° 8000
19-38 65 90 35 M8 109N.m 218N.m +0.8mm 1.0° 6000
24-45 80 114 45 M8 135N.m 270N.m +1.0mm 1.0° 4600
30-55 98 126 55 M10 260N.m 520N.m +1.0mm 1.0° 3800
35-60 135 135 56 M12 430N.m 860N.m +1.0mm 1.0° 3400

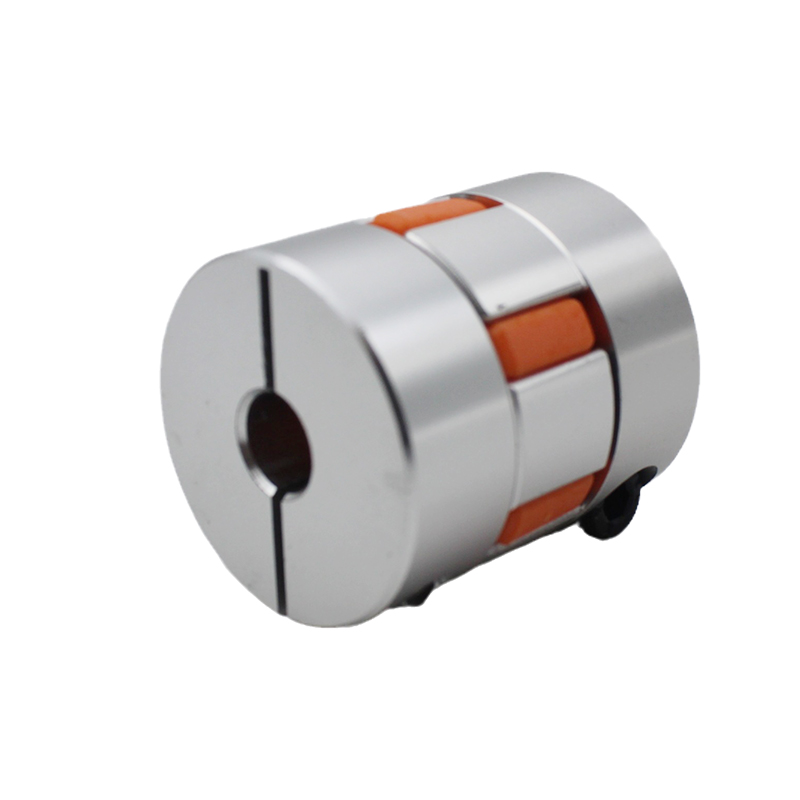

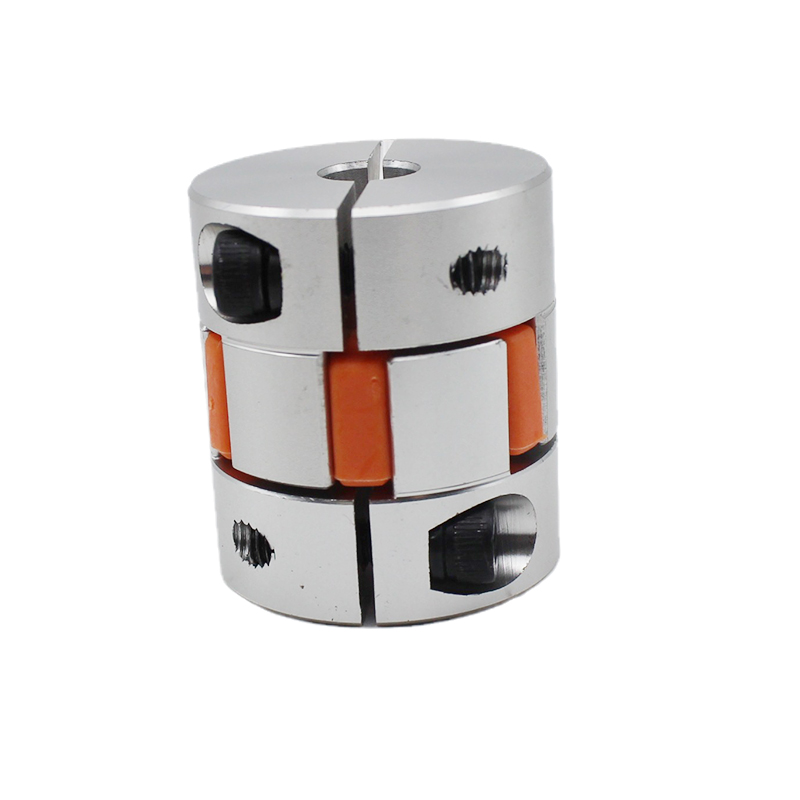

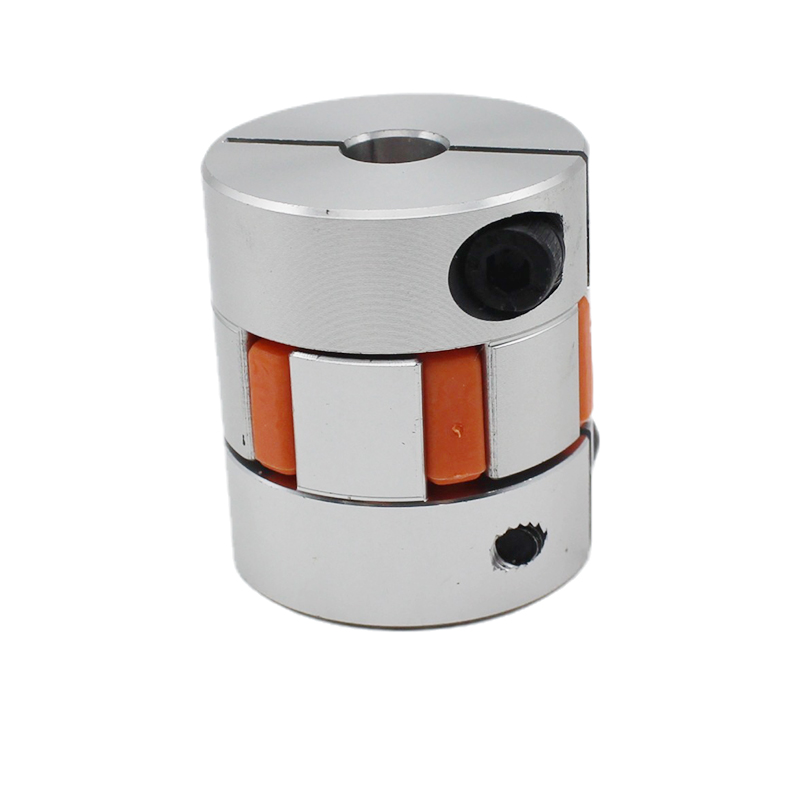

 Product Pictures

 LF-B-D30L35 8 8 (2)LF-B-D30L35 8 8 (3)
