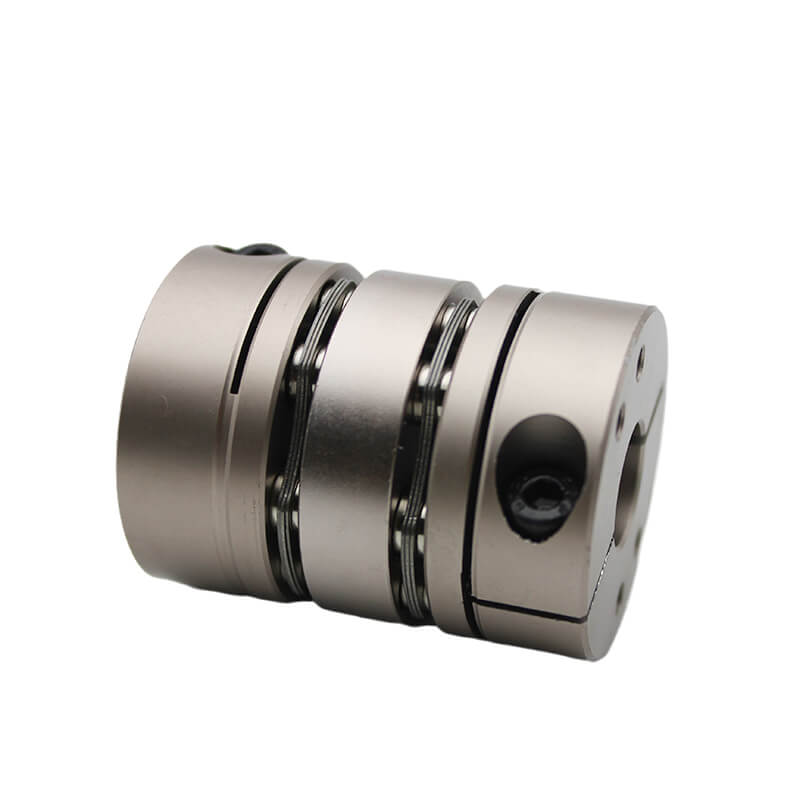

1.Product Introduction of the LDG High Rigidity Diaphragm Stepping Motor Coupling
lt has strong rigidity, strong torsion, long installation life
There is no gap, the rotation characteristics of forward and reverse rotation are the same,and the radial, axial and angular deviation compensation ability is strong
Purpose:
Servo motor / stepping motor
2.Product Parameter（Specification）of the LDG High Rigidity Diaphragm Stepping Motor Coupling
| Model | D(mm) | L(mm) | D1-D2(mm) | M(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | Screw tightening torque(n.m) | |
| LDG 2-B-D26L35 | 26 | 35 | 4-12 | M3.0 | 11.5 | 3 | 3.5 | 6 | 1.2 | |
| LDG 2-B-D32L41 | 32 | 41 | 5-14 | M3.0 | 13.5 | 3.5 | 4.5 | 7.5 | 1.2 | |
| LDG 2-B-D34L45 | 34 | 45 | 6-16 | M3.0 | 14.8 | 3.5 | 4.5 | 8.5 | 1.2 | |
| LDG 2-B-D40L50 | 40 | 50 | 8-22 | M4.0 | 15.8 | 3.5 | 5 | 11.4 | 2.5 | |
| LDG 2-B-D45L55 | 45 | 55 | 10-24 | M4.0 | 15.2 | 4.6 | 5 | 10.4 | 2.5 | |
| LDG 2-B-D50L60 | 50 | 60 | 12-25 | M5.0 | 19.7 | 4.6 | 6 | 11.4 | 5 | |
| LDG 2-B-D56L68 | 56 | 68 | 14-30 | M5.0 | 120 | 5 | 6 | 14 | 5 | |
| LDG 2-B-D65L78 | 65 | 78 | 16-35 | M6.0 | 24.5 | 5 | 9 | 15 | 8 | |
| LDG 2-B-D87L98 | 87 | 98 | 18-45 | M8.0 | 30.5 | 6.5 | 10 | 23.5 | 20 |
| Model | Maximum shaft hole(mm) | Rated torque(n.m) | Allowable eccentricity(mm) | Allowable deflection angle() | Maximum speed(rpm) | Material of shaft sleeve | Shrapnel material | Weight(g) |
| LDG 2-B-D26L35 | 12 | 2.2 | 0.1 | 1 | 10000 | High strength aluminum alloy | 304 stainless steel | 40 |
| LDG 2-B-D32L41 | 14 | 3 | 0.1 | 1 | 10000 | 75 | ||
| LDG 2-B-D34L45 | 16 | 4.4 | 0.1 | 1 | 10000 | 90 | ||
| LDG 2-B-D40L50 | 22 | 8.7 | 0.1 | 1 | 10000 | 140 | ||
| LDG 2-B-D45L55 | 24 | 13.3 | 0.1 | 1 | 10000 | 180 | ||
| LDG 2-B-D50L60 | 25 | 27 | 0.2 | 1 | 10000 | 320 | ||
| LDG 2-B-D56L68 | 30 | 37 | 0.2 | 1 | 8000 | 350 | ||
| LDG 2-B-D65L78 | 35 | 85 | 0.2 | 1 | 6000 | 500 | ||
| LDG 2-B-D87L98 | 45 | 180 | 0.2 | 1 | 5000 | 1000 |

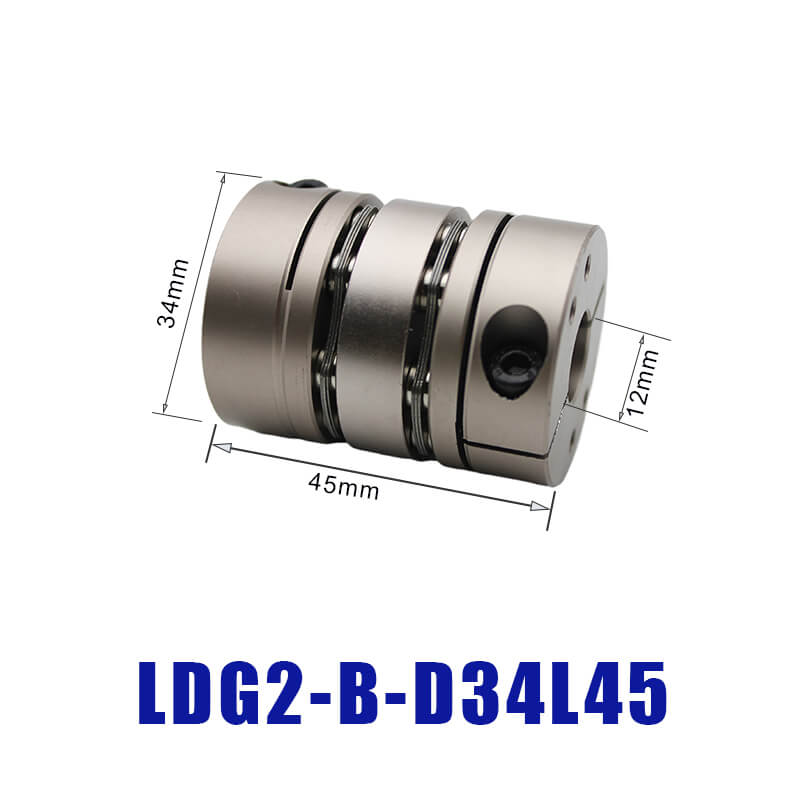

Overall dimensions (mm)
3. Production Details of the LDG High Rigidity Diaphragm Stepping Motor Coupling
Q 1.How quickly do you respond to the customer?
For before-sales and during-sales, customers will be responded within 1 hour;
for after-sales, 12 hours.
Q 2. What is your terms of payment? A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.
Q 3. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost andthe courier cost.
Q4.Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
