PR- 24 range(Micro PLC) is advanced level model, incorporating a good mix of digital and Analogue IO, Integrated High Speed inputs
and PWM output,clock with calendar, counters , timers , integrated keypad display, serial communications and an expansion port.
Available in 120V/240VAC or 12V/24VDC versions ; Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software.Program capacity has been enlarged to 1024 function blocks as well, also high-speed count reaches 60KHZ.
PR-24 range offers 4-line*16 characters LCD display and keypad for program modification or display and control whilst program is running.
An expansion port allows the connection of up to 16 expansion modules, extending the I/O channel count. Now it is also possible to use the analog output module to solve simple closed-loop control tasks.
Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control,ramp response and
analog multiplexer.

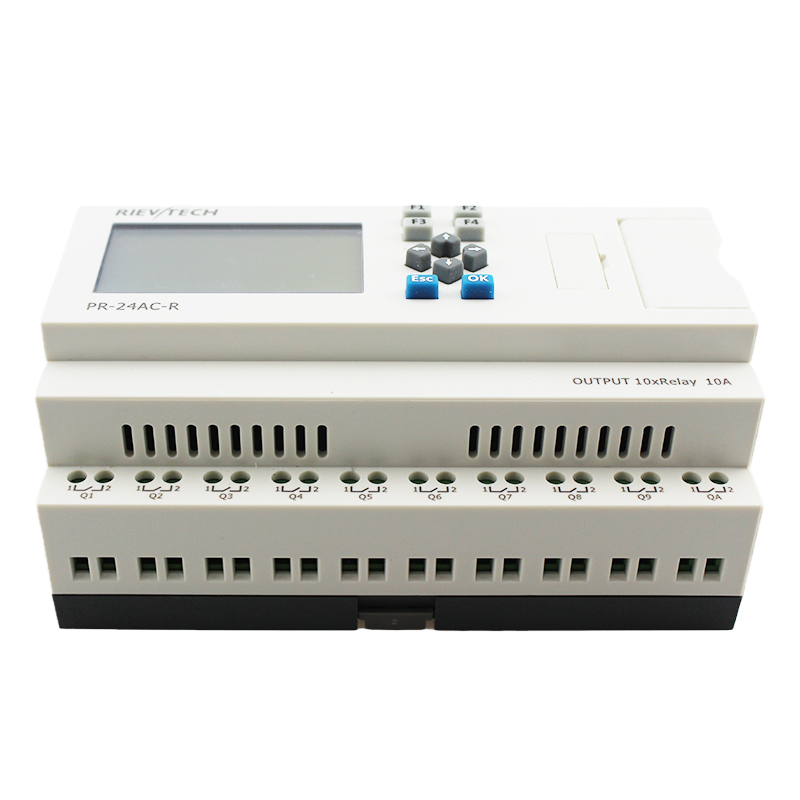

PR-24AC-R
RIEVTECH
1
ZHEJIANG
Automation controller
140 DI+10 relay
AC110~240V
35-DIN rail or screw for installation
PLC
CE
10A,250V AC/DC30V
Relay output
47-63Hz
Availability: | |
---|---|
Highlight of PR-24 Series
◆70 ready-to use functions integrated-no additional devices such as operating hours counter required.
◆Extremely large program capacity:up to 1024 functions possible.
◆12 digital inputs(incl 6AI with 12/24V DC)and 6 digital outputs on board.
◆Flexibly expandable up to 142DI,138DO,72AI,and 32AO.
◆Display of message texts,actual and set-point values and direct modification of the values on the display(not on pure variants).
◆Integrated data retentivity-ensures backup of the current values in the event of a power failure.
◆Customizable Start-up page/screen.
◆Bool function,multiple timers,counters,PWM,PI controller,Ramp.Analog math supported.
◆Can be modularly expanded up to 280 I/Os.
◆230V units can be expanded with analog modules.
◆Datalogging:Data from the production process can be saved in SD card of the external accessory called ELC-MEMORY to
either read it with a PC or evaluate it from the SD card at the workstation.
◆Extremely simple software
◆Display of up to 128 messages.
◆Multiple kinds of registers can be accessed.
◆Parameters setting menu in LCD panel.
◆Parameters can be modified in the alarming message.
◆Modbus RTU/ASCII protocol supported.
◆Retentive memory capability.
◆Powerful communication capability(1RS232 port,2 RS485 ports(1 built-in&1 need RS485 extension ,and 1 IO expansion port)
◆Password protection.
◆It’s optional for xLogic to act as salve or master in certain Modbus communication network.
◆Backup at Real Time Clock(RTC) at 25 ℃:20 days.
◆2 PWM channels optional.
◆Communicate with third party device which supports Modbus network.
PR-24 Series CPU | ||||||||
Model | Supply volt | Inputs | Outputs | High-speed count | PWM | HMI | RTC | G.W(g) |
PR-24AC-R | AC110~240V | 14 Digital | 10relays(10A) | None | NO | YES | YES | 400g |
PR-24DC-DA-R | DC12V-DC24V | 6 digital/(0-10V) | 10 relays(10A) | 4 routes | NO | YES | YES | 400g |
PR-24DC-DAI-RTA | DC12V-DC24V | 4 digital/(0-10V) | 6relay(10A)+2Transistor(0.3A)+1(0..10V)/ | 4 routes | YES | YES | YES | 400g |
GENERAL SPECIFICATIONS
Timers : 1024
Counters : 1024
Function Blocks : 1024
Operation temp. : -20℃-55℃
Storage :-40℃-70℃
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : 10 years
Modify parameters via keypad LCD: yes
Dimensions : 133*90*61(Unit:mm)
Certificate : CE
Installation : 35-DIN rail or screw for installation
Expansion capacity: 16 modules (PR-E-16)
Password protection : 4-digit number password protection or disable program upload function
Communication interface :1 RS232 port & 2 RS485 ports(1 buit-in& 1need RS485 extension)
Communication protocol : Modbus RTU/ASCII
Technical Index
Power supply: | |
Nominal voltage | AC110V-240V |
Operating limits | AC85 - 265 V |
The main frequency range | 47-63Hz |
Max. absorbed power | 49mA (85V ac) ; 37mA (265V ac) |
Isolation voltage | 1780V AC |
Protection against polarity inversions | Yes |
Input parameters: | |
Input No | 14( I1-IE) |
Digital input | 14 ( I1-IE) |
Analogue input | None |
Input voltage | AC110-240V |
Input signal0 | AC0-40V;<0.03mA |
Input signal1 | AC79-240V; >0.06mA |
Input Response Time | Delay time at 0 to 1: |
Maximum counting frequency | Typ. 4Hz |
Sensor type | Contact or 3-wire PNP |
Isolation between power supply and inputs | None |
Isolation between inputs | None |
Protection against polarity inversions | Yes |
Output parameters: | |
Output No. | 10 (Q1-QA) |
Output type | Relay output |
Max. Allowable Power Force(Resistive) | CE: 10A,250V AC/DC30V |
Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
Mechanical life | 107 Operations at No Load condition |
Response time | Operate Time : 15 mSec. Max. |
Built-in protections | Against short-circuits: None |
Switch frequency: | |
Mechanism | 10Hz |
Resistor/light load | 2Hz |
Sensitive load | 0.5Hz |
Other parameters: | |
Weight | Approx.500g |
Program language | FBD & Ladder |
Installation Dimensions
Wiring Diagram
Input&Output
