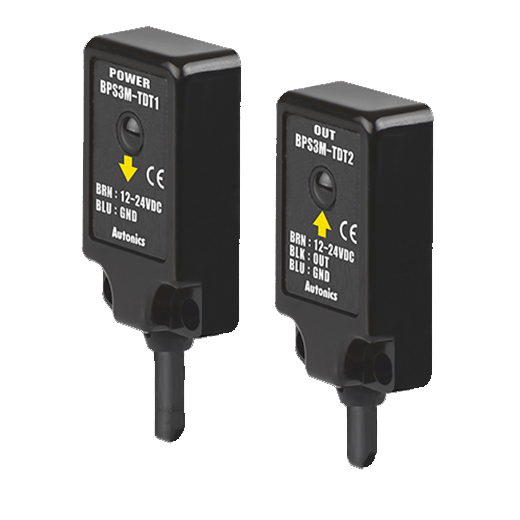

BPS3M-TDT
Autonics
1
KOREA
BPS3M-TDT Autonics Sensor Photoelectric Sensor Compact Sensor 3M Sensing Distance Dark On NPN Output
Detection type: opposite type
Detection distance: 3m
Detection object: opaque object Min.Ø5mm
Light Source: Infrared LED(850nm)
Response time: Max.1ms
Power supply voltage: 12-24VDC±10%(Ripple P-P: Max.10%)
Action mode: Dark ON
Control output: NPN collector open
| Detection type | opposite type |
|---|---|
| Detection distance | 3m |
| Detection object Opaque object | Min.Ø5mm |
| Light Source | Infrared LED(850nm) |
| Response time | Max.1ms |
| Power supply voltage | 12-24VDC±10%(Ripple P-P: Max.10%) |
| Ambient temperature | -25~65 ° C |
| storage | -25~70 ° C |
| Material shell | Shell: PC, bolt: SCM, nut: SCM |
| Protection level | IP66 |
| Weight | Approx. 66g |
