Seamless integration: rotary encoder and microcontroller

Views: 396     Author: Kevin     Publish Time: 2023-08-26      Origin: Site

Seamless integration: rotary encoder and microcontroller

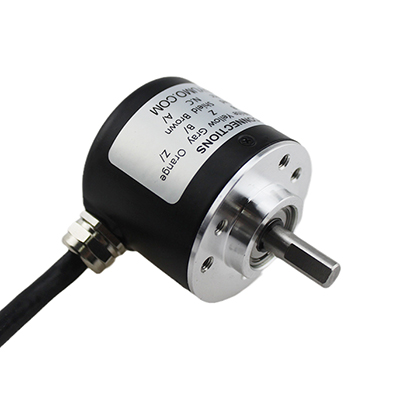

Rotary encoders are important components in a variety of applications requiring precise position sensing or motion control. These devices provide feedback by converting rotational motion into a digital or analog signal. When combined with a microcontroller, rotary encoders provide seamless integration, enabling accurate and efficient detection of position or speed.


To interface a rotary encoder with a microcontroller, there are a few steps to follow. First, it is important to understand the different types of rotary encoders on the market. The two main types are absolute encoders and incremental encoders. Absolute encoders provide a unique output code for each position, while incremental encoders generate pulses based on the angle of rotation. Each type has its advantages and suits different applications.


After selecting the appropriate type of rotary encoder, the next step is to establish the connection between the encoder and the microcontroller. This usually involves connecting the encoder outputs (such as the A, B and Z channels) to the microcontroller's GPIO pins.  The A and B channels are used to determine the direction of rotation, while the Z channel provides a reference point or reset signal.


An important consideration when interfacing a rotary encoder with a microcontroller is the choice of pull-up or pull-down resistors. These resistors are used to ensure a stable voltage level at the encoder output, preventing false readings. The exact resistor value depends on the electrical characteristics of the encoder and microcontroller.


Once the hardware connections are made, the next step is to write the software code to read and process the encoder signals. This can be done using an interrupt driven or polling based approach. Interrupts are often used when precise position or speed monitoring is required, as they allow real-time response to changes in the encoder signal. Polling, on the other hand, is a simpler approach that involves periodically checking the encoder output within the main program loop.


To interpret the encoder signal, a decoding algorithm is implemented in software code. These algorithms determine the direction and magnitude of rotation based on the transitions and timing of the encoder pulses. By tracking the encoder position or velocity, the microcontroller can perform the desired control operation, such as adjusting the position of a motor or updating a display.


The integration of rotary encoders with microcontrollers offers many benefits in a variety of applications. For example, in robotics and automation, rotary encoders enable precise positioning of joints or end effectors, increasing overall accuracy and repeatability. In machine tools, encoders help monitor spindle speed and position to ensure optimum machining performance. In consumer electronics, encoders are used for volume control or menu navigation.


Additionally, the seamless integration of the rotary encoder and microcontroller enables greater flexibility and scalability. The microcontroller can easily handle multiple encoders simultaneously, making it suitable for applications involving multiple shafts or rotating parts. In addition, software-based functions can be implemented to customize the behavior of the rotary encoder system, such as sensitivity adjustment or hysteresis settings.


In summary, the seamless integration of rotary encoders and microcontrollers is a powerful combination that enables precise position sensing and motion control in a variety of applications. By understanding the different types of encoders, establishing the correct hardware connections, and implementing software decoding algorithms, engineers can ensure accurate and efficient operation. The versatility and flexibility offered by this integration make rotary encoders an indispensable tool in modern control systems.
