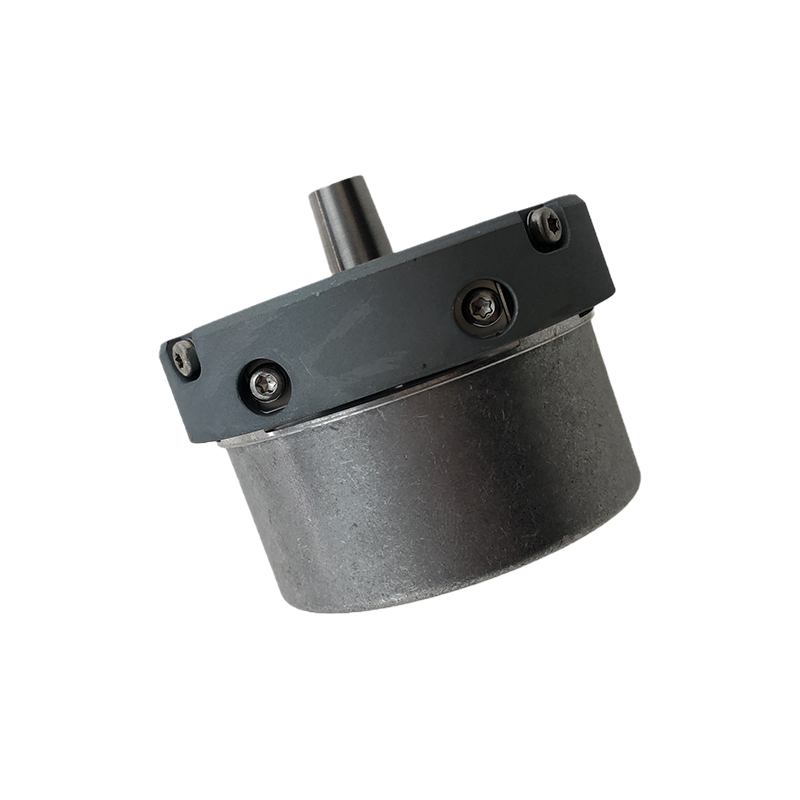

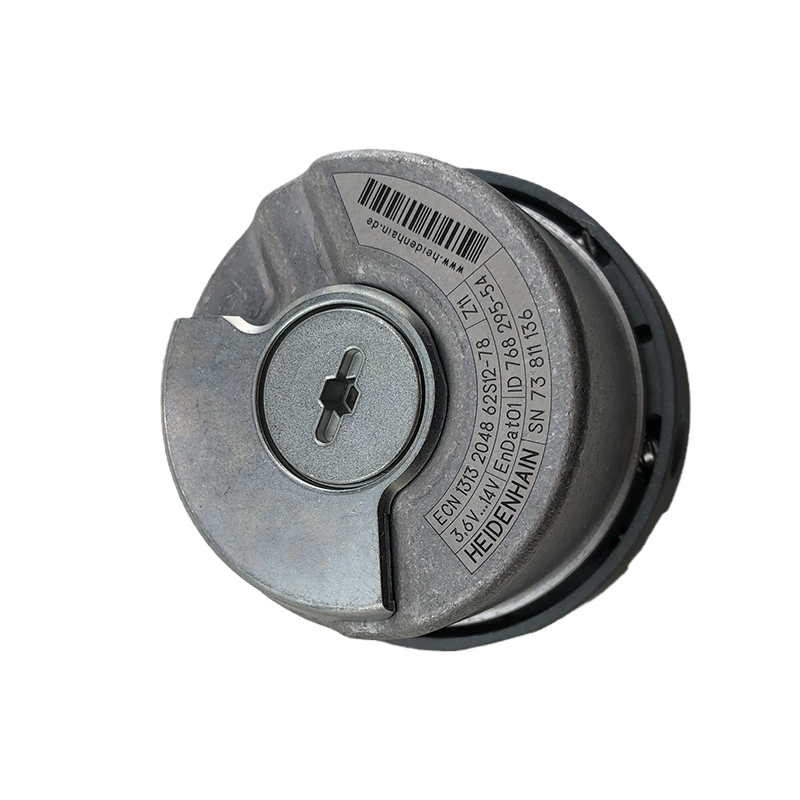

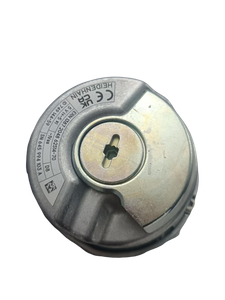

Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder

It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output
  • ECN 1313 2048 62S12-78

  • YUMO

  • YM001234

  • 1

  • China

  • for elevator, Position Sensor

  • photovoltaic conversion, Optical sensor

  • DC 3.6 V to 14 V

  • ROTARY ENCODER

  • 5 V: 85 mA

Availability:

Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder

Code

ECN1313

Position values/revolution

8192 (13 bits)

Electtically permissible speed/error

1500 rpm/±1 LSB
12 000 rpm/±50 LSB

Calculation time
Clock frequency

9 µs
2MHz MHz

Incremental signals

1Vpp

Line count/system accuracy

2048/±20“

Reference mark

Cutoff frequencu -3dB

400 kHz

Electrical connection
Via PCB connector

12-pin

Voltage supply

DC 3.6V to 14V

Power consumption (maximum)

3.6 V:600 mW
14 V:
700 mW

Current consumption

5 V: 85 mA (typical, without load)

Stator coupling

Plane-surface coupling

Shaft

Taper shaft φ9.25mm;taper 1:10

Mech. permiss. speed n

2000 rpm

Starting torque

0.01 Nm(at 20)

Moment of inertia of rotor

2.6·10–6 kgm^2

Permissible axial motion of measured shaft

±1.5 mm

Radial runout of the measured shaft

0.13 mm

Vibration 55 Hz to 2000 Hz
Shock 6 ms

300 m/s^2
2000 m/s^2

Operating temperature

–40 to +115

Protection EN 60 529

IP40 when mounted

1ECN 1313 2048 62S12-78 (2)ECN 1313 2048 62S12-78 (1)ECN 1313 2048 62S12-78 (3)ECN 1313 2048 62S12-78 (4)ECN 1313 2048 62S12-78 (5)
