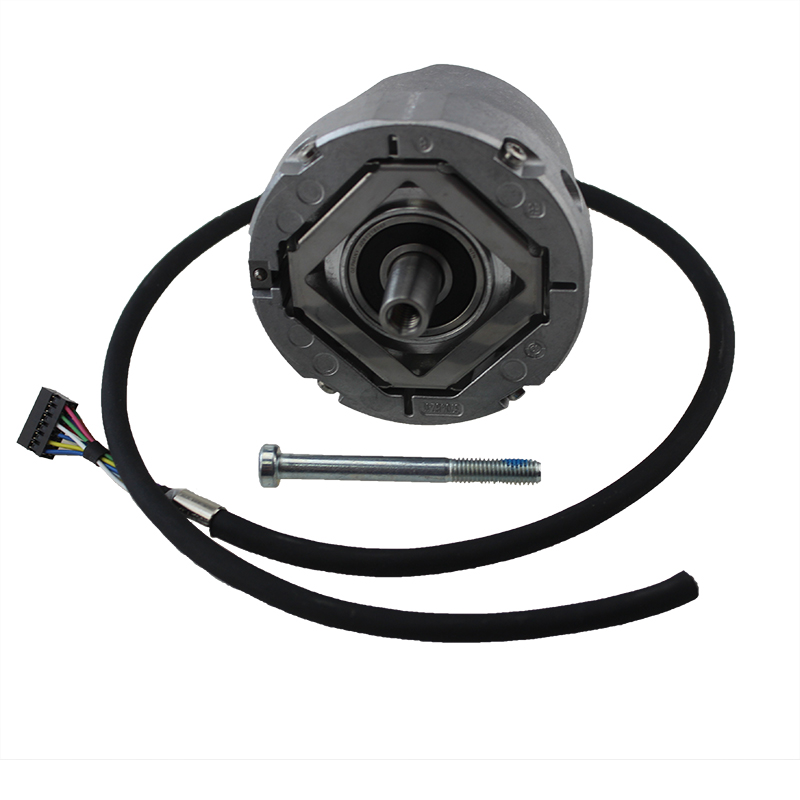

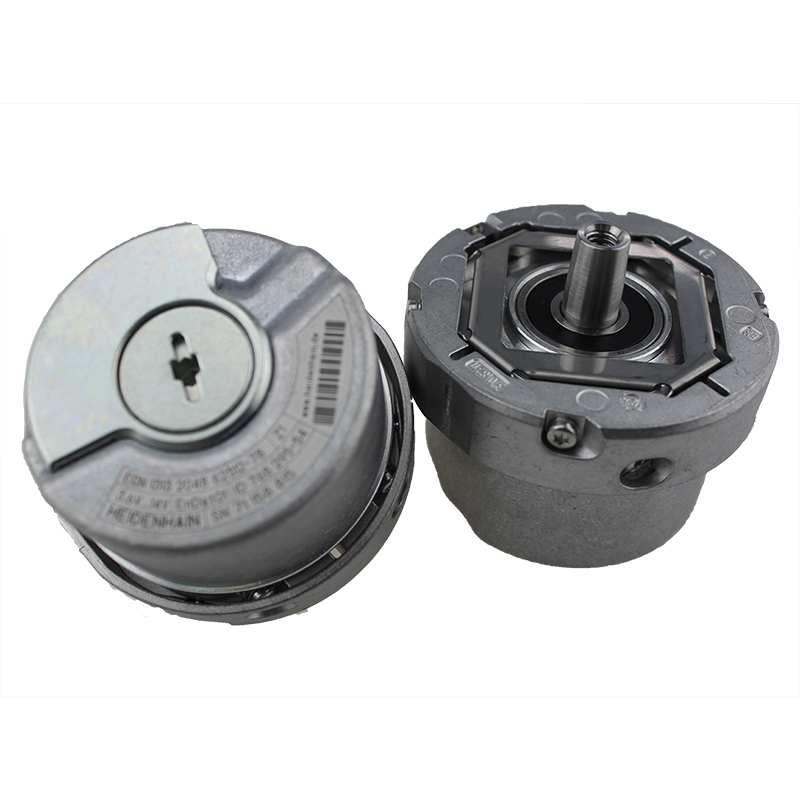

ECN13 HEIDENHAIN Safety Digital Data Transfer Rotary Encoder with Anti-rotation Element

• 07B stator coupling with anti-rotation element for axial mounting • 65B taper shaft • Encoders available with functional safety • Fault exclusion for rotor and stator coupling as per EN 61 800-5-2 possible
  • ECN1313204862S12-78

  • HEIDENHAIN

Availability:

Application

• 07B stator coupling with anti-rotation element for axial mounting

• 65B taper shaft

• Encoders available with functional safety

• Fault exclusion for rotor and stator coupling as per EN 61 800-5-2 possible



Technical Specifications

ECN1313 Interface Ordering designation  Position values/revolution  Elec. permissible speed/Deviations Line count Cutoff frequency –3 dB  Voltage supply
EnDat 2.2

EnDat01 8192 (13 bits)

512 lines: 5000 rpm/±1 LSB 12 000 rpm/±100 LSB

2048 lines: 1500 rpm/±1 LSB 12 000 rpm/±50 LSB

512    2048  2048 lines:≥400 kHz 512 lines:130 kHz DC 3.6 V to 14 V
Power consumption (max.)  Current consumption (typical)  Mech. permiss. speed n  Starting torque Max. operating temp.  Min. operating temp.  Mass
3.6V:0.6W 14V:0.7W 5V:85mA (without load)  ≤15000rpm  0.01Nm(at20°C)  115°C –40°C 0.25 kg





Dimensions(mm)

ECN13 HEIDENHAIN safety digital data transfer rotary encoder with anti-rotation element


ECN1313204862S12-78 (6)

ECN1313204862S12-78 (3)

ECN1313204862S12-78 (9)
