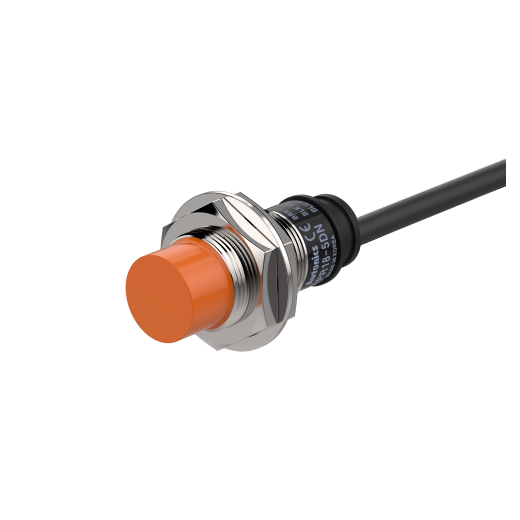

Autonics Sensor PR18-8DP PNP Normally Open

Sensor, Inductive Prox, M18 Round, Non-Shielded, 8mm Sensing, PNP NO, 3 Wire, 10-30 VDC

Sensing side diameter : M18
Sensing distance : 8mm
Installation : Non-flush
Standard sensing target : 25×25×1mm(iron)
Response frequency : 350Hz
  • PR18-8DP

  • Autonics

Availability:

Sensor, Inductive Prox, M18 Round, Non-Shielded, 8mm Sensing, PNP NO, 3 Wire, 10-30 VDC

Description


Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M18
Sensing distance 8mm
Installation Non-shield(non-flush)
Standard sensing target 25×25×1mm(iron)
Response frequency 350Hz
Current specification Current consumption: Max. 10mA
Control output PNP Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Approval
Body length Standard type
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 1.5V
Weight Approx. 122g(approx. 110g)
