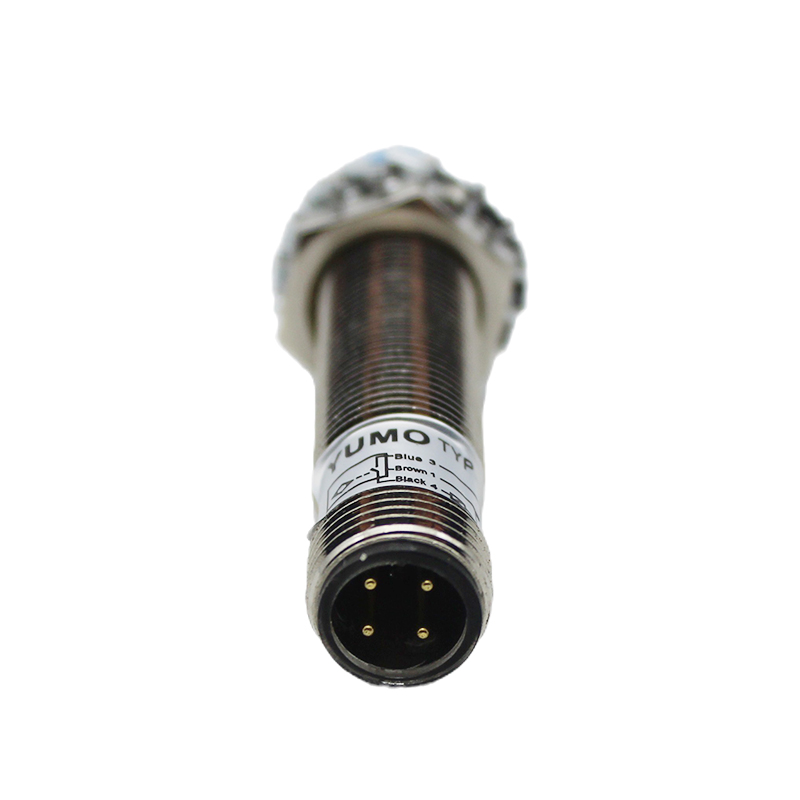

YUMO Sensor LM12-3004NAT DC6-36V 4mm NPN NO Inductive Sensor with Plastic Sensing Head
Working principle inductive proximity switch
Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop. The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign, triggering driving con-contact detection.
Pictures of proximity sensor
Technical Specifications of Inductive Proximity Sensor Switch
| Structural category | Connector type | |||
| Overall dimensions |  | |||
| Outward Appearance code | LM12 | |||
| DETECTION DISTANCE | 2mm | |||
| Flush | 10-30 VDC
90-250 VAC | NPN | NO | LM12 3002NAT |
| NC | LM12-3002NBT | |||
| NO+NC | LM12-3002NCT | |||
| PNP | NO | LM12-3002PAT | ||
| NC | LM12-3002PBT | |||
| NO+NC | LM12-3002PCT | |||
| two wiresystem | NO | LM12-3002LAT | ||
| NC | LM12-3002LBT | |||
| SCR | NO | LM12-2002AT | ||
| NC | LM12-2002BT | |||
| DETECTION DISTANCE | 4mm | |||
| Non-Flush |
10-30 VDC
90-250 VAC | NPN | NO | LM12 3004NAT |
| NC | LM12-3004NBT | |||
| NO+NC | LM12-3004NCT | |||
| PNP | NO | LM12-3004PAT | ||
| NC | LM12-3004PBT | |||
| NO+NC | LM12-3004PCT | |||
| two wiresystem | NO | LM12-3004LAT | ||
| NC | LM12-3004LBT | |||
| SCR | NO | LM12-2004AT | ||
| NC | LM12-2004BT | |||
| Output current | 200mA | |||
| Output voltage dropDC/AC | DC≤3V AC≤10V | |||
| Consumption current | DC≤15mA AC≤10mA | |||
| Standard detected object | 12*12*1(A3 iron) | |||
| Repeated precision | 0.01 | |||
| DC/AC Response frequency | 400Hz/10Hz | |||
| Working environment temperature | –25℃~70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
