Product Description

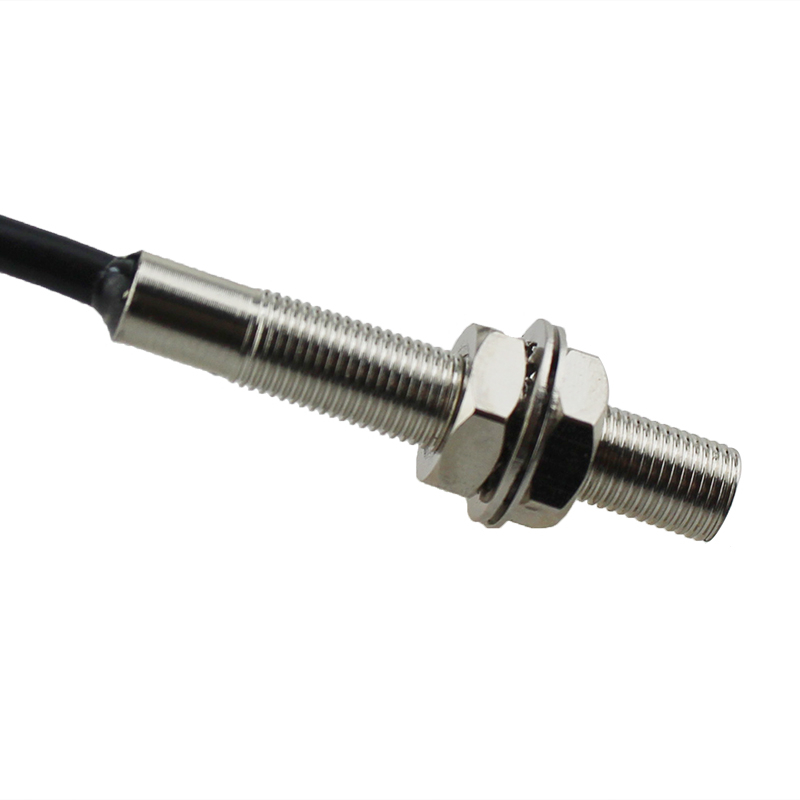

LM05-3001PA 1mm Detection Distance PNP NO Output Inductive Proximity Switch

Main Features

compact volume
high precision repeated location
diversified exterior structures
good performance of anti-interference
many output forms

high on-off frequency
wide voltage range
dust proof, vibtation proof, water proof and oil proof
with short-circuit protection and inverted connecting protection
long service life

Technical Specifications

Structural category				Connector type
Overall dimensions
Outward Appearance code				LM5
DETECTION DISTANCE				1mm
Flush	10-30 VDC	PNP	NO	LM5-3001PA
Output current				200mA
Output voltage drop DC/AC				DC≤3V AC≤10V
Consumption current				DC≤15mA AC≤10mA
Standard detected object				661(A3 iron)
Repeated precision				0.01
DC/AC Response frequency				500Hz
Working environment temperature				–25℃~70℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67

Insulation resistance	50MΩ
Shell material	Metal
Protection grade	IEC standard IP67
Altemative model at home and abroad
