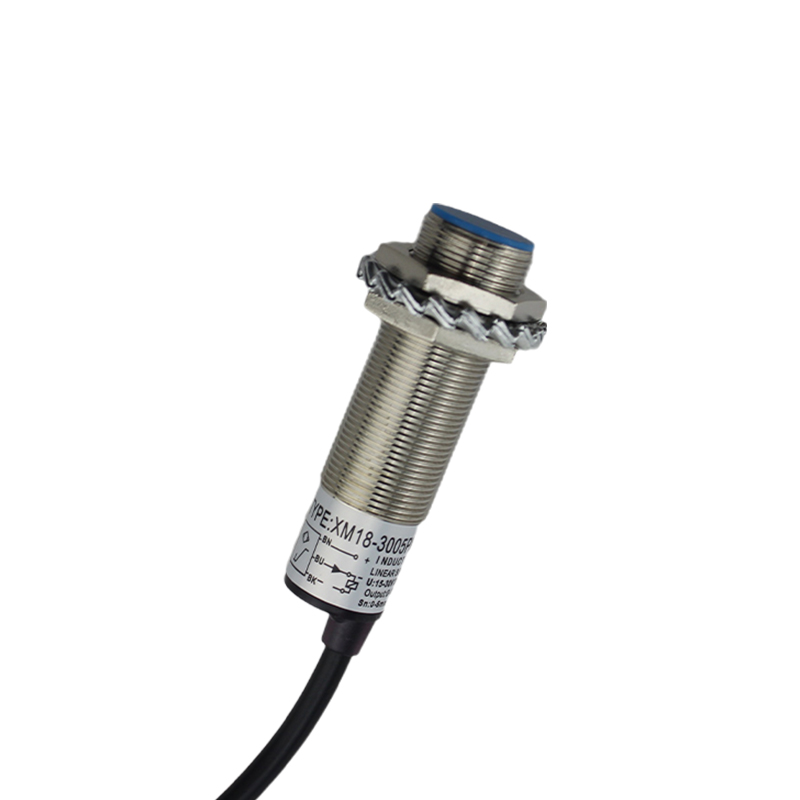

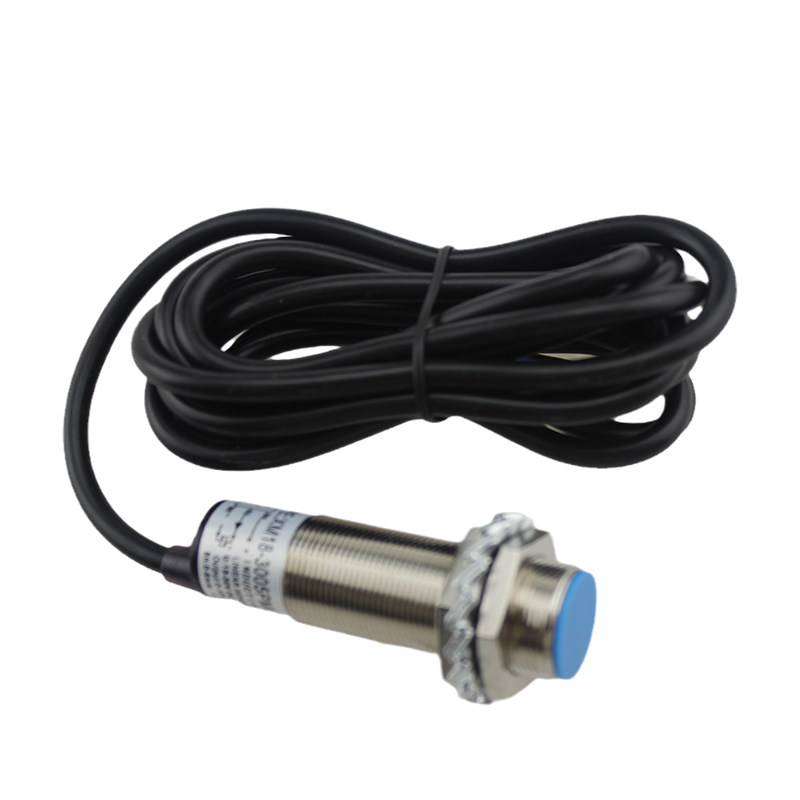

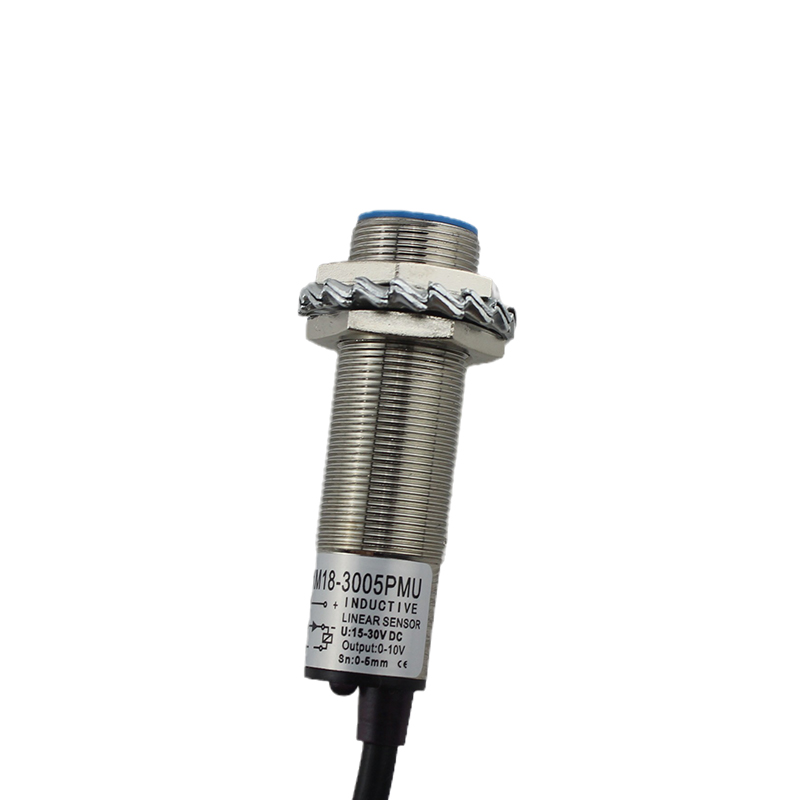

XM18-3005PMU
YUMO
work principle
Inductive proximity switch with analog quantity output has the similar work principle with general inductive proximity switch. The energy of oscillator systemdecreases when a metal object approaches the inductive side. The energy decrease degree indic ates the distance between the metal object and thesensor. The energy consumption is transformed into measuring sign inan additional device and magnified through linear treatment. Provide astandard analog
signal at output terminal(0···5V or 4-20mA···)
| code | XM18 | ||
| Detectable object | Metal | ||
| Detection distance | Fulsh type:5mm | Non-Flush:8mm | |
| Model avaliable | Current type | XM18-3005PMI | XM18-3008PMI |
| Voltage type | XM18-3005PMU | XM18-3008PMU | |
| Voltage range | 15~30VDC | ||
| Consumption | at the time of detection | ≤200mA...<4mA | |
| at the time of non-detection | ≤20mA | ||
| Loading resistance | Current type | 0~300Ω | |
| Voltage type | ≥2.2KΩ | ||
| Output | Current type | 4-20mA | |
| Voltage type | 0-5V/0-10Vz | ||
| Voltage fluctuation | ≤5% | ||
| Output signal | PNP Simulation | ||
| Linear deviation | ±5% | ||
| Ambient temperature | -10℃~+70℃ | ||
| Shell material | Plastic Metal | ||
| Protection grade | IP54 | ||
