LM18-2008A 8mm Detection Controllable Silicon Non Flush Inductive Proximity Switch

Product Description

Model No.	LM18-2008A
Working voltage	90-250VAC
Output form	SCR
Output state	NO
Shell Material	Metal
Protection grade	IP67
Detection distance	8mm
Detection type	Non-flush



 Overall dimensions:  (unit:mm)





Structural category				Cylinder type
Outward Appearance code				LM18
DETECTION DISTANCE				5mm
Flush	DC10-30VDC              AC90-250VAC	NPN	NO	LM18-3005NA
			NC	LM18-3005NB
			NO+NC	LM18-3005NC
		PNP	NO	LM18-3005PA
			NC	LM18-3005PB
			NO+NC	LM18-3005PC
		two wiresystem	NO	LM18-3005LA
			NC	LM18-3005LB
		SCR Control-lablesilicon	NO	LM18-2005A
			NC	LM18-2005B
			NO+NC	LM18-2005C
DETECTION DISTANCE				8mm
Non-Flush	DC10-30VDC          AC90-250VAC	NPN	NO	LM18-3008NA
			NC	LM18-3008NB
			NO+NC	LM18-3008NC
		PNP	NO	LM18-3008PA
			NC	LM18-3008PB
			NO+NC	LM18-3008PC
		two wiresystem	NO	LM18-3008LA
			NC	LM18-3008LB
		SCR Control-lablesilicon	NO	LM18-2008A
			NC	LM18-2008B
			NO+NC	LM18-2008C
Controloutput		DC		200mA
		Relay		300mA
Output voltage drop DC/AC				DC<3V, AC<10V
Consumption current				DC<15mA, AC<10mA
Standard detected object				18×18×1(A3iron)
Repeated precision				0.02
DC/AC				200Hz/25Hz
Working environment temperature				-25℃~+75℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67

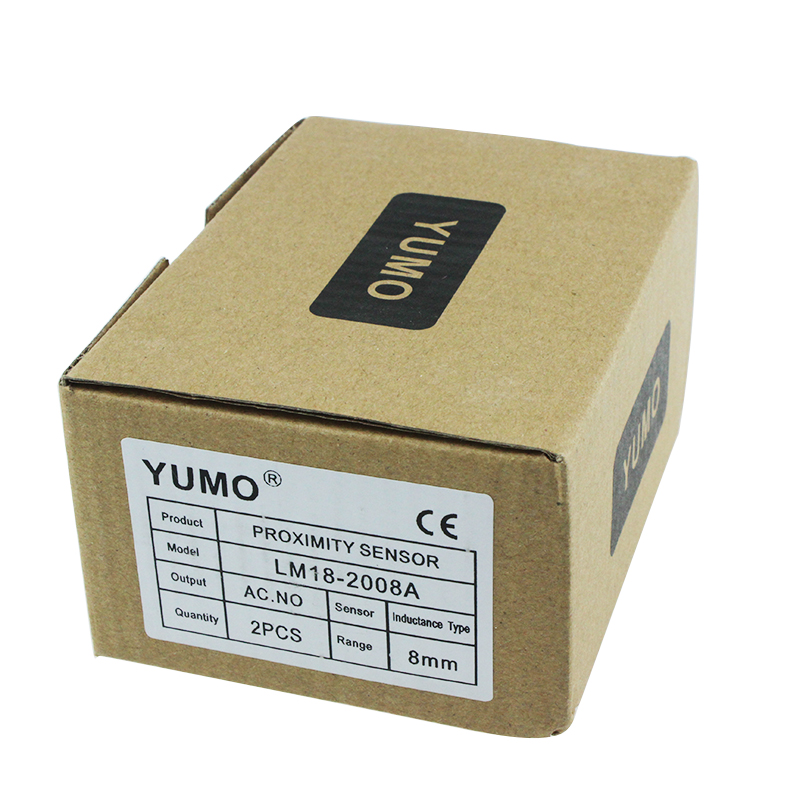

Product Pictures
