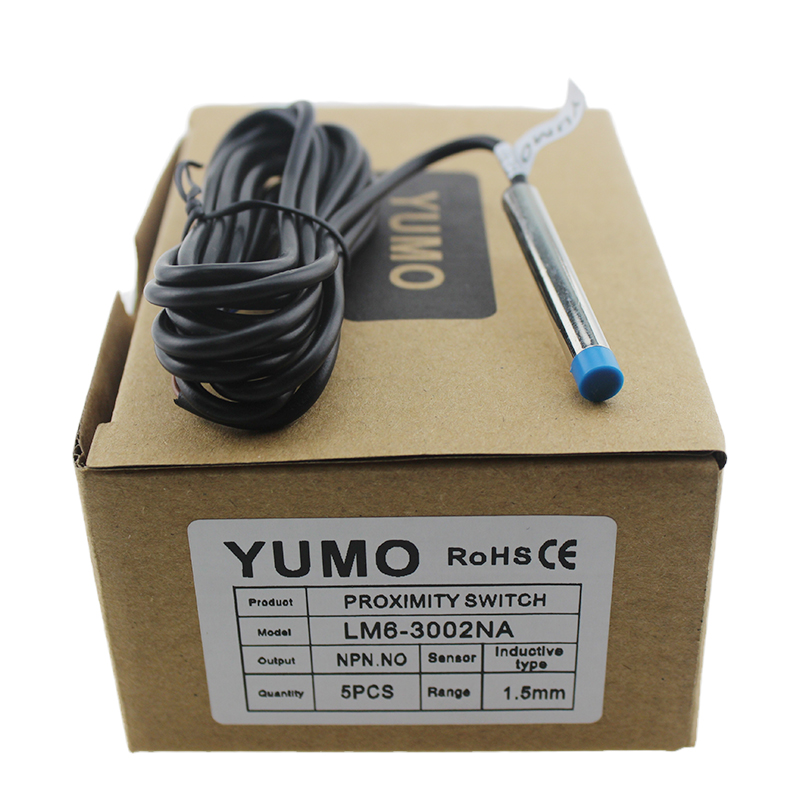

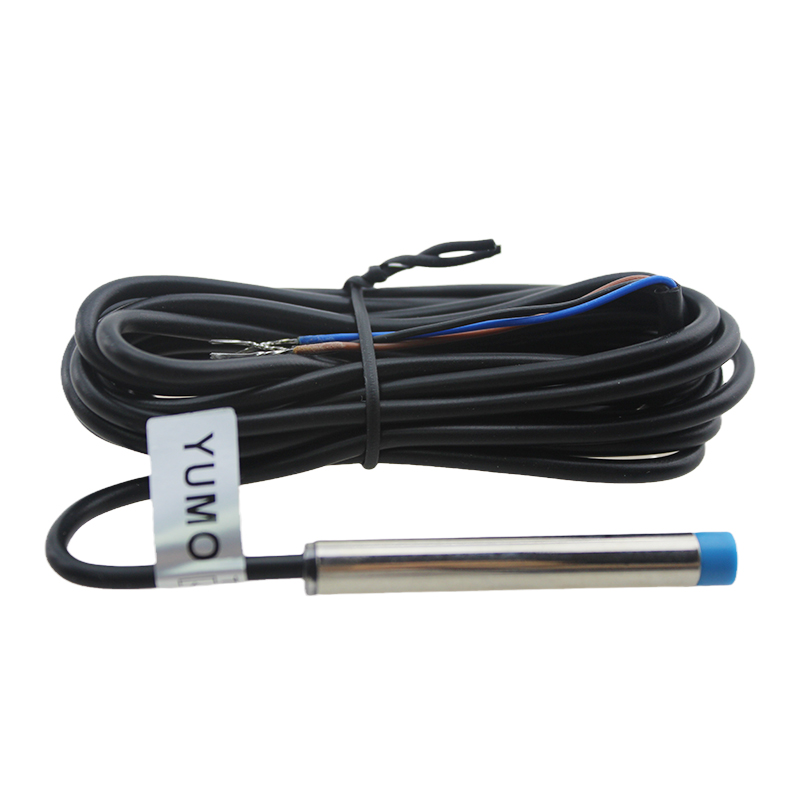

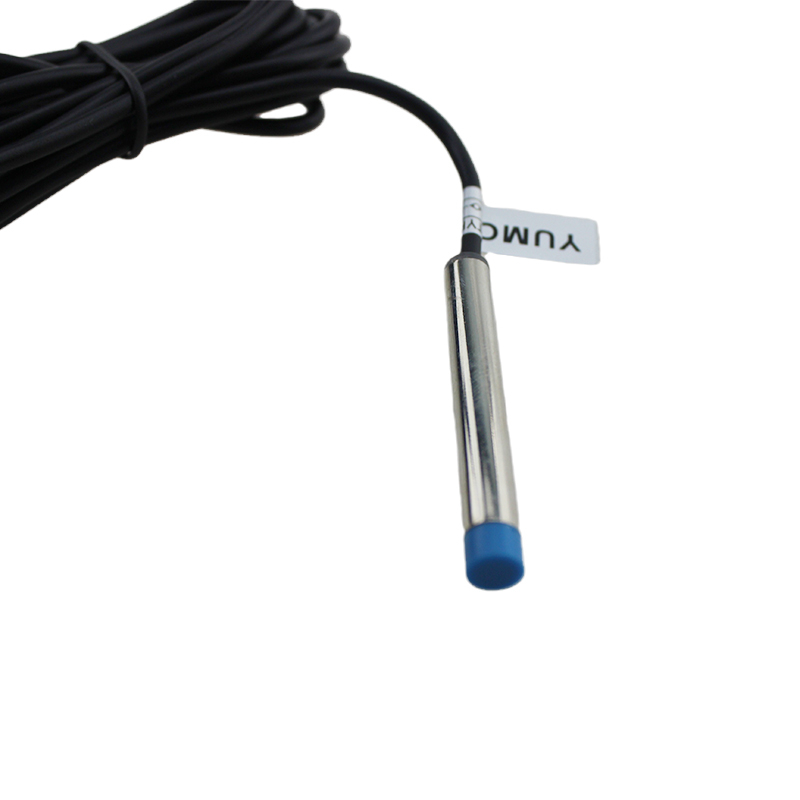

YUMO LM6-3002NA NPN NO Inductive Proximity Switch Sensor Proximity Alarm Sensor


compact volume
high precision repeated location
diversified exterior structures
good performance of anti-interference
many output forms
  • LM06-3002NA
  • YUMO
Availability:

                YUMO LM6-3002NA NPN NO Inductive Proximity Switch Sensor Proximity Alarm Sensor

Main Features

  • compact volume

  • high precision repeated location

  • diversified exterior structures

  • good performance of anti-interference

  • many output forms

  • high on-off frequency

  • wide voltage range

  • dust proof, vibtation proof, water proof and oil proof

  • with short-circuit protection and inverted connecting protection

  • long service life

 Technical Specifications

Structural category Connector type
Overall dimensions LM5
Outward Appearance code LM6
DETECTION DISTANCE 1.5mm
Flush

10-30 VDC

NPN NO LM6-3002NA
Output current 200mA
Output voltage drop DC/AC DC≤3V  AC≤10V
Consumption current DC≤15mA AC≤10mA
Standard detected object 6*6*1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz
Working environment temperature –25℃~70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Insulation resistance 50MΩ
Shell material Metal
Protection grade IEC standard IP67
Altemative model at home and abroad
