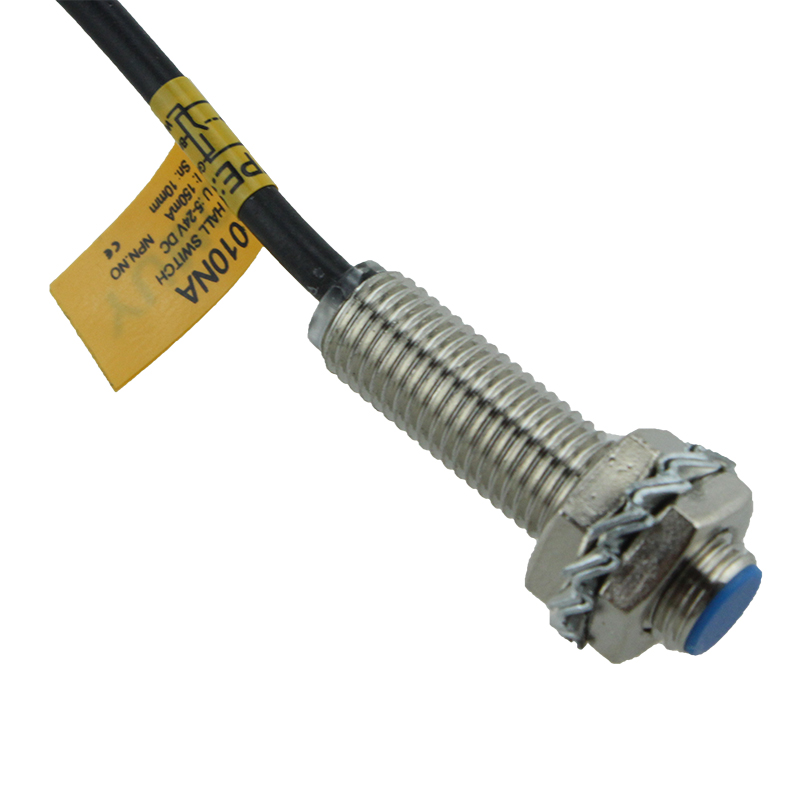

SM8-31010NA10MM NPN NO Position Magnetic Proximity Hall Effect Sensor

SM series Hall sensor is a kind of magnct-sensitve scnsor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is a digital voltage signal.
Availability:

Brief introduction:

  SM series Hall sensor is a kind of magnct-sensitve scnsor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is a digital voltage signal.

Features:
  • Wide mains voltage range

  • High frequency

  • Long service life, compact volume, and convenient installation

  • Directly connect to transistor and logic circuit pore like, TTL.MOS



Model and parameters:
Outward appearance code SM8
Overall dimensions YUMO sensor catalouge-22
Detection distance 10mm
Mains voltage 5-24VDC
Detectable object Permanent magnet
Output low level voltage 200mV
Output high level voltage 0.1μA
Mains current 8mA
ON-OFF frequency 320KHz
Working point magnetic density 22mT
Shell material Metal
Ambient temperature -25℃~+70℃
Protection structure IP67
NPN NO SM8-31010NA
NPN NC -
PNP NO SM8-31010PA
PNP NC -
