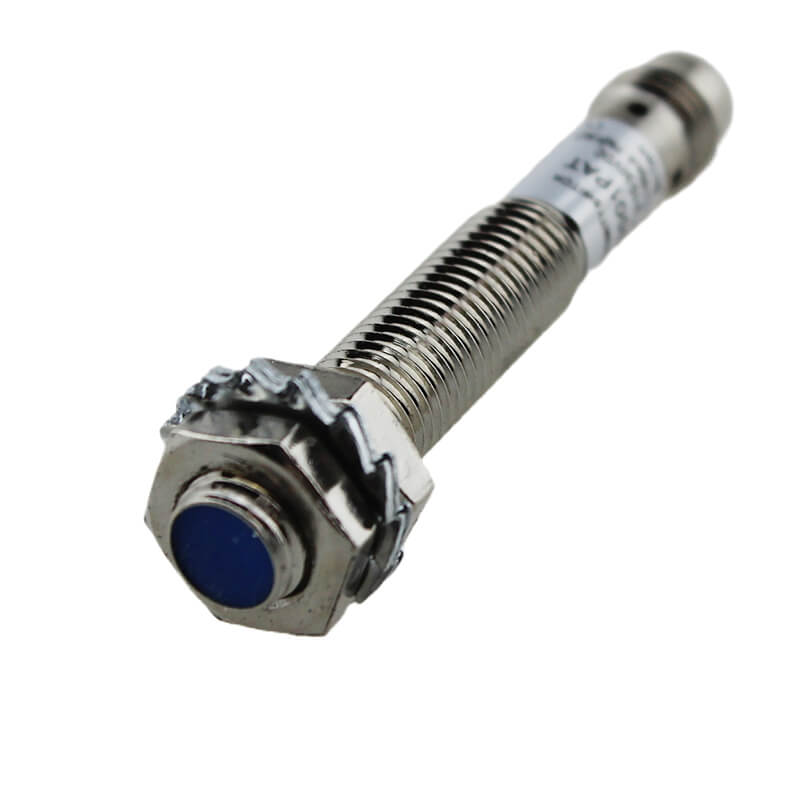

YUMO LM8-3001PAT DC6-36V 1mm Flush PNP NO Proximity Alarm Proximity Detector


compact volume
high precision repeated location
diversified exterior structures
good performance of anti-interference
many output forms
  • LM08-3001PAT
  • YUMO
Availability:


Insulation resistance 50MΩ
Shell material Metal
Protection grade IEC standard IP67
Altemative model at home and abroad


               YUMO LM8-3001PAT DC6-36V 1mm Flush PNP NO Proximity Alarm Proximity Detector

Main Features

  • compact volume

  • high precision repeated location

  • diversified exterior structures

  • good performance of anti-interference

  • many output forms

  • high on-off frequency

  • wide voltage range

  • dust proof, vibtation proof, water proof and oil proof

  • with short-circuit protection and inverted connecting protection

  • long service life

 Technical Specifications

Structural category Connector type
Overall dimensions 11
Outward Appearance code LM8
DETECTION DISTANCE 1mm
Flush

10-30 VDC

NPN NO LM8-3001PAT
Output current 200mA
Output voltage drop DC/AC DC≤3V  AC≤10V
Consumption current DC≤15mA AC≤10mA
Standard detected object 6*6*1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz
Working environment temperature –25℃~70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
INDUCTIVE PROXIMITY SWITCH
Outward appearance code LM8
Appearance
Dimension
Flush Detection distance 1mm

NPN NO 3001NA
DC NC 3001NB
6 NO+NC
PNP NO 3001PA
36 NC 3001PB
V NO+NC

two wire system NO 3001LA

NC 3001LB
AC SRC Control label silicon  NO 2001A
90 NC 2001B
~250 NO+NC
V Relay   output
Non-flush Detection   distance 1.5mm

NPN NO 3002NA

NC 3002NB
DC NO+NC
6 PNP NO 3002PA
NC 3002PB
36 NO+NC
V two wire system NO 3002LA

NC 3002LB
AC SRC Control label silicon  NO 2002A
90 NC 2002B
~250 NO+NC
V Relay   output
Control   output DC 150mA
SCR/Relay
Output voltage dropDC/AC DC<3V   AC<10V
Consumption current DC<15mA  AC<10mA
Standard detected object 8×8×1(A3 iron)
Repeated precision 0.01
DC/AC Response frequency 500Hz/25Hz
Working environment temperature –25℃~75℃
Insulation resistance ≥50MΩ
Shell material Metal
Protection grade IEC standard IP67
Altemative model at home and abroad E2E-X1R5□□
