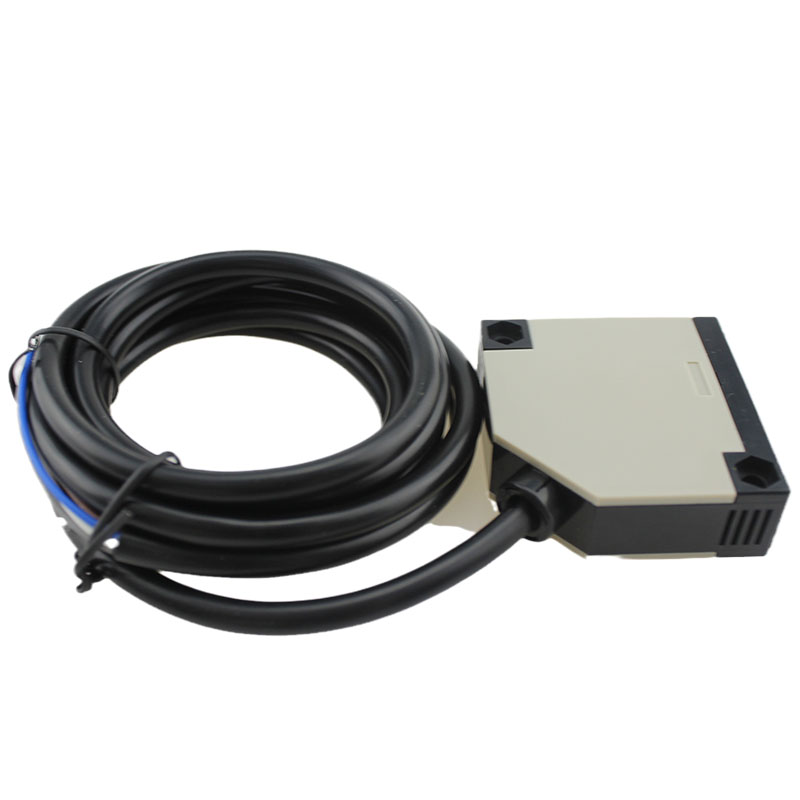

G50-3A30JC
YUMO
China
sensor
10-30 VDC
CE
Inductive detection
Diffuse type
Diffuse reflection type photoelectric switch integrates the transmitter and the reciver.Light reflected by the photoelectric switch is rflected back to the receiver by the detected object.
| Structural category | Photoelectric switch | |||
| Outward appearance code | G50 | |||
| Outward appearance illustration |  | |||
| Diffuse type | Detection distance | 30cm 50cm | ||
10- 30 VDC | NPN | NO | G50 -3A 30NA | |
| NC | G50 -3A 30NB | |||
| NO+NC | G50 -3A 30NC | |||
| PNP | NO | G50 -3A 30PA | ||
90~250 VAC | NC | G50 -3A 30PB | ||
| NO+NC | G50 -3A 30PC | |||
| SCR Controllable Silicon | NO | - | ||
| NC | - | |||
| Relay output | G50 -3A 30JC | |||
| Retrore-flictive | Detection distance | 4m | ||
10- 30 VDC | NPN | NO | G50-3B4NA | |
| NC | G50-3B4NB | |||
| NO+NC | G50-3B4NC | |||
| PNP | NO | G50-3B4PA | ||
90~250 VAC | NC | G50-3B4PB | ||
| NO+NC | G50-3B4PC | |||
| SCR Controllable Silicon | NO | - | ||
| NC | - | |||
| Relay output | G50-2B4JC | |||
| Tough beam | Detection distance | 5m | ||
10- 30 VDC | NPN | NO | G50 -3C 5NA | |
| NC | G50 -3C 5NB | |||
| NO+NC | G50 -3C 5NC | |||
| PNP | NO | G50 -3C 5PA | ||
90~250 VAC | NC | G50 -3C 5PB | ||
| NO+NC | G50 -3C 5PC | |||
| SCR Controllable Silicon | NO | G50 -3C 5LA | ||
| NC | - | |||
| Relay output | G50 -3C 5JC | |||
| DC/SCR/Control output | DC:200mA, AC:300mA , relay: 2A | |||
| DC/AC Consumption current | DC<15mA , AC:<10mA | |||
| DC/AC Response time | DC<2mS , AC<20mS | |||
| Directional angle | 3°-10° | |||
| Directed object | Transparent or opaque body | |||
| Working environment temperature | -25 °C ~ + 55 °C ` | |||
| Intensity of illumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||
| Shell material | Plastic | |||
| Protection grade | IP54 | |||
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
