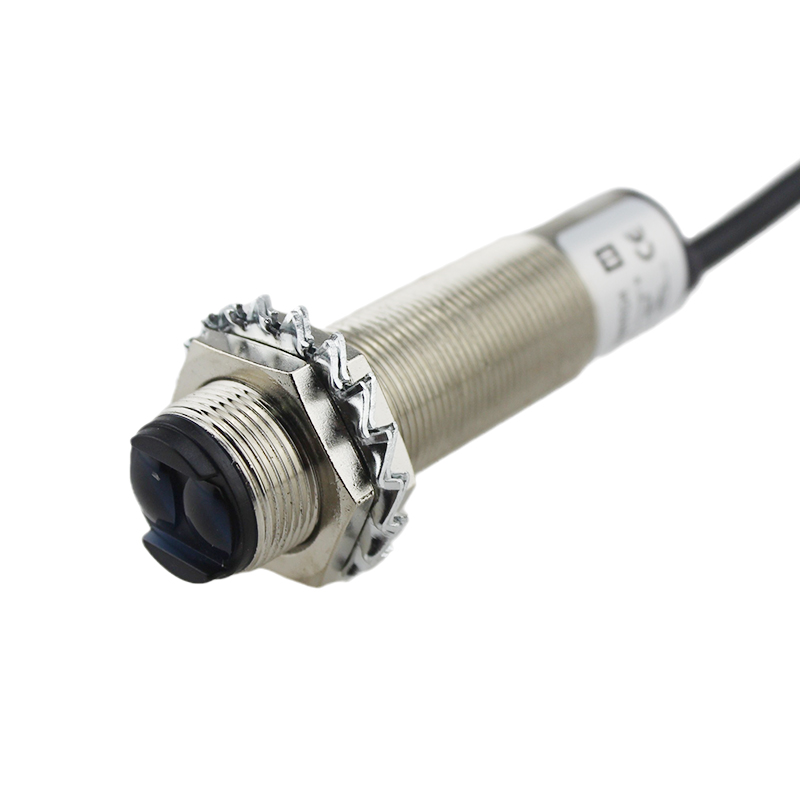

YUMO Sensor Retroreflective Photoelectric Beam Photocell Sensor G18-3A1NA/PA, China proximiy sensor, Photoelectric Switch Sensor, INDUCTIVE SENSOR, photoelectric sensor, reflective photoelectric switch Manufacturers, Suppliers, Price, Wholesale, Buy, China, Cheap, Company

You are here: Home » Sensor » Photoelectric Sensor » YUMO Sensor Retroreflective Photoelectric Beam Photocell Sensor G18-3A1NA/PA

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Products Center

Contact Us

Tel: +86-577-62791815
Fax: +86-577-62791825
Skype: benjaminying
E-mail:sale@yingselectric.com

Add: ROOM 302,NO.256 LIUYANG ROAD, ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA

Related Product News

content is empty!

Product Description

Model:

G 18 3 A 40 P A
1 2 3 4 5 6 7 8
No.	Composition	Code and definition
1	Basic form	G: infrared ray photoelectric switch
2	Outward appearance code	18,50,76
3	Working voltage	2.90-250VAC 3:10-30VDC 4:12-240VDC/24-240VAC 5:Special voltage
4	Detection way	A: diffused reflection type(scattered reflection type)
		B: feedbace reflection type mirror(mirror reflection type)
		C: penetration type(correlation type) D: marking detection type
		G: optical fiber type
5	Detection distance	05: 5cm 10: 10cm 30: 30cm 101: 10m
6	Output form	N: NPN transistor output P:PNP transistor output J: Relay contact output L:AC two-wire output S: with two outputs: NPN and PNP
7	Output state	A: Normally open(light entering ON) B: Normally close(light sheltering ON)
7	Output state	C: Normally open+ normally close
8	Subsidiary	T1: front delay T2: rear delay Y:
8	Subsidiary	T: with aviation connector I: special requirement

Technical Parameter

OVERALL DIMENSIONS
D i f f u s e T y p e		Detection distance		10cm-10cm
	10- 10 VDC	NPN	NO	G18-3A10NA
			NC	G18-3A10NB
			NO+NC	G18-3A10NC
		PNP	NO	G18-3A10PA
	90～ 250 VAC		NC	G18-3A10PB
			NO+NC	G18-3A10PC
		SCR ControHable silicon	NO	G18-2A10LA
			NC	G18-2A10LB
		Relay output
R e t r o r e f l i c t i v e		Detection distance		2m
	10- 10 VDC	NPN	NO	G18-3B2NA
			NC	G18-3B2NB
			NO+NC	G18-3B2NC
		PNP	NO	G18-3B2PA
	90～ 250 VAC		NC	G18-3B2PB
			NO+NC	G18-3B2PC
		SCR ControHable silicon	NO	G18-2B2LA
			NC	G18-2B2LB
		Relay output
T r o u g h b e a m		Detection distance		5m
	10- 10 VDC	NPN	NO	G18-3C5NA
			NC	G18-3C5NB
			NO+NC	G18-3C5NC
		PNP	NO	G18-3C5PA
	90～ 250 VAC		NC	G18-3C5PB
			NO+NC	G18-3C5PC
		SCR ControHable silicon	NO	G18-2C5LA
			NC	G18-2C5LB
		Relay output
DC/SCR／Control output				DC:200mA、AC：100mA
DC/AC Consumption current				DC<15mA、AC<10mA
DC/AC Response time				Dc<2ms、AC<2mA
Directional angle				3。-10。
Detected object				transparent or opaque body
WoJrking envlrOnment temDerature				25℃～+55℃
Intensity ofillumination ofworking environment				10000LX Sunlight underlOOOOLX 1000LX incandescentlamp under 1000LX
Shell materia				Plastic
Protection grade				IP54
