TZ-93BPG02
YUMO
China
CE

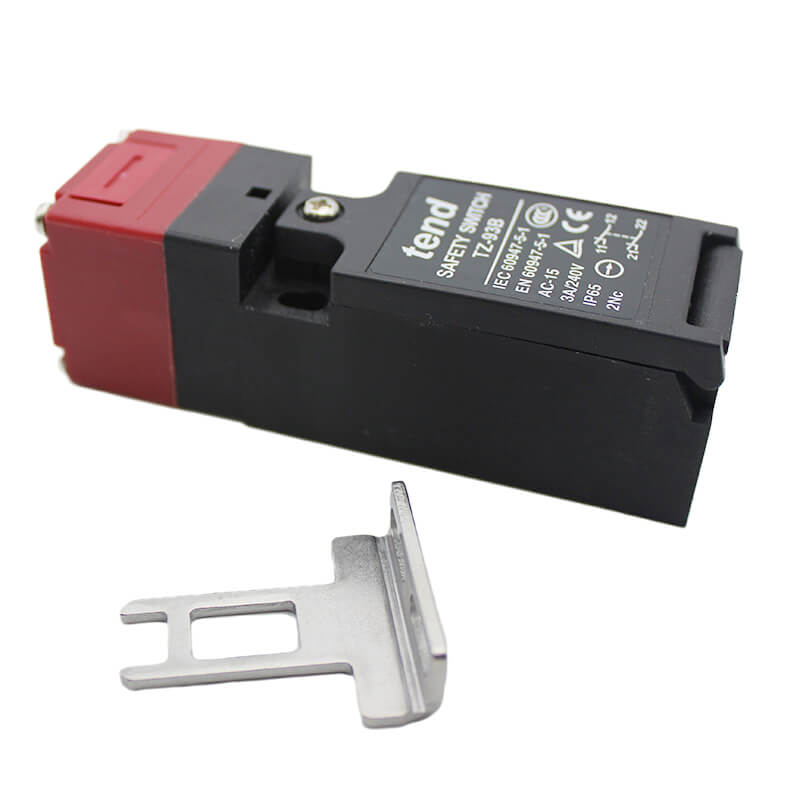

1.Product Introduction of the Vertical Mounting Type Limit Switch Door Safety Switch
TZ-93BPG02
Taiwan Tend Double Pole Safety Key Interlock Switch limit switch
with Lock vertical installation type
2.Product Parameter（Specification）of the 1000PPR Hollow Shaft Incremental Rotary Encoder
| Operating speed | 0.1m-0.5m/s |
| Contact resistance | 25mΩ or less |
| Applied edge resistance | Above 100MΩ (under 500VDC) |
| Insulation voltage | 400V |
| Withstand voltage | AC2500V/Umip 4KV |
| vibration | Maloperation durability:10-50Hz, 0.65mm amplitude |
| Shock | Mechanical durability :1.000m / s 2 ~ above (above 100G) |
| Maloperation durability:300m / s ~ or more (about 30G or more) | |
| Use week temperature | -30 ° C- + 70 * C |
| humidity | 95% RH |
| Service life | Machinery: 1 million times or more |
| Electrical: more than 150,000 times | |
| waterproof level | IP65 (EN60947-5-1) |
| Short circuit protection | Fuse 10A |
3. Production Details of the Vertical Mounting Type Limit Switch Door Safety Switch
For before-sales and during-sales, customers will be responded within 1 hour;
for after-sales, 12 hours.
Q 2. What is your terms of payment? A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.
Q 3. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost andthe courier cost.
Q4.Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
