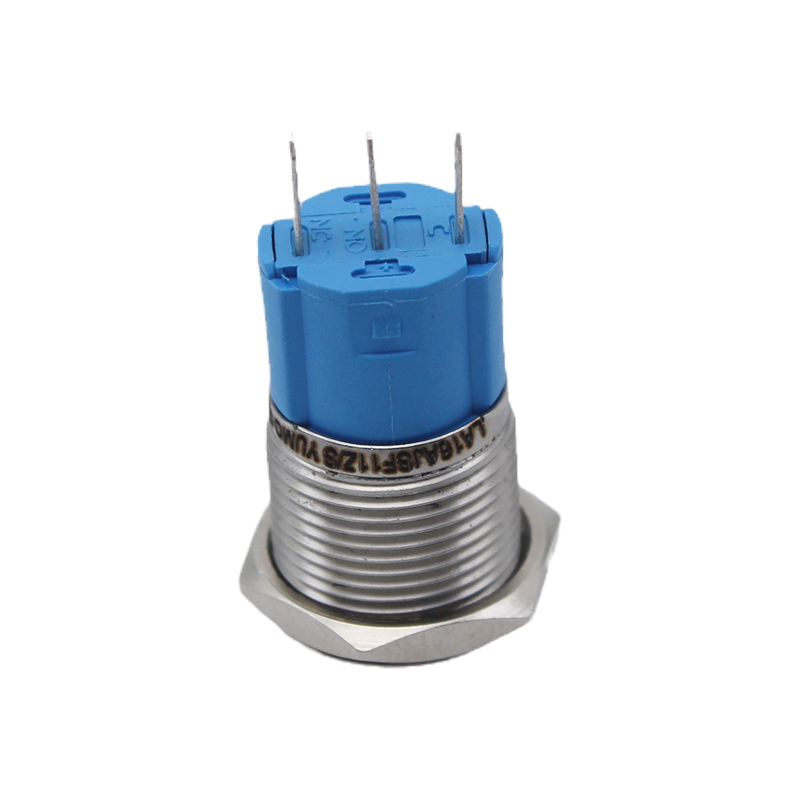

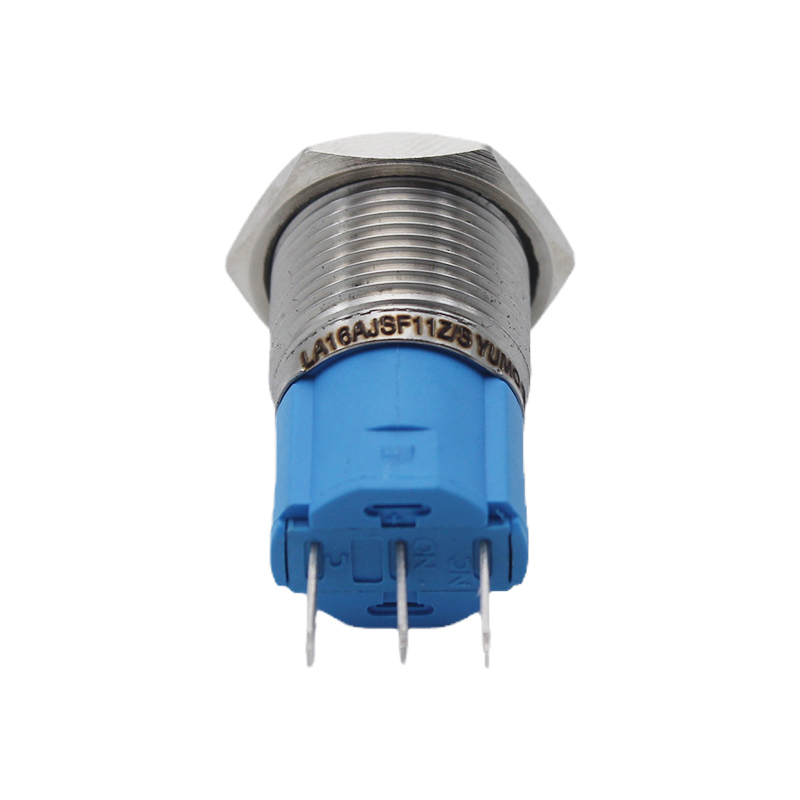

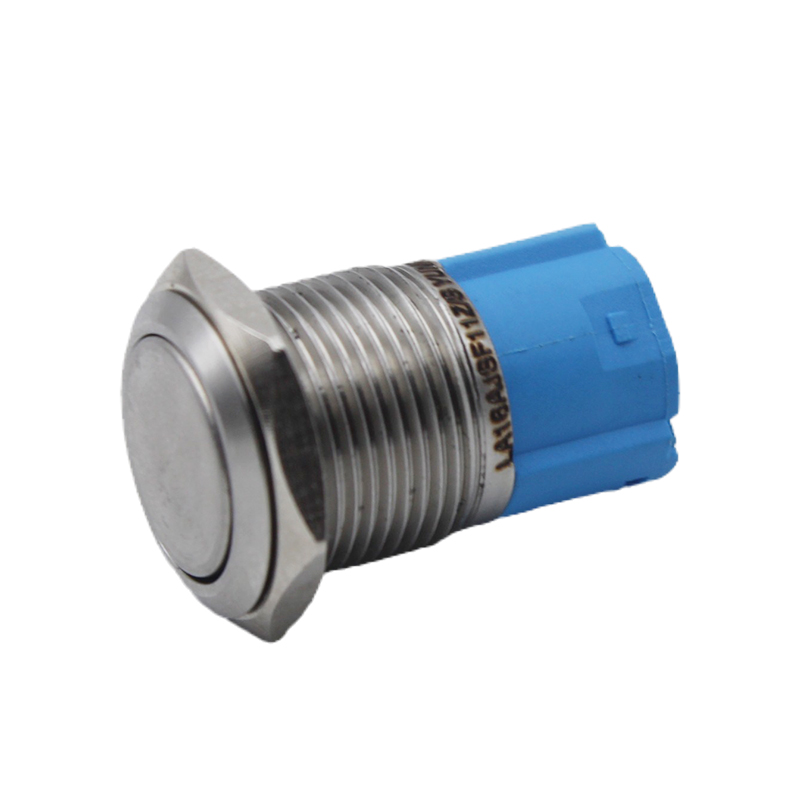

Product Description

Features:

16mm diameter
Switch Rating:3A/250VDC
Contact Configuration:1NO 1NC/2NO 2NC
Operation Type:Momentary/Alternate
The Front Shape: Flat Round
The Crust Material:Stanless Steel/Brass(Nickel Plated )
Ring lluminated
IP Degree:IP40/67

Dimemsions:

LA16JSF11-E

Technical Specifications

Specification		LA16AJSF11ZS
The Front Shape		Flat Round
Terminal Type		Pin Terminal(1.8x0.4mm)
Switching		NO.4
Max.Switch Rating		lth:3A Ui:250VAC
Contact Resistance		≤50mΩ
Insulating Resistance		≥1000MΩ
Dielectic Strengh		2000VAC
Operating Temp		-20℃~+55℃
Mechanical life		500,000cycles
Electrical life		50, 000cycles
Panel Thickness		1~10mm
Tortque		5~ 14Nm
Operation Pressure		2.5~4N
Operation Distance		About 2.8mm
IP Degree		IP40/IP67
Material	Contrct	Silver Alloy
	Button	Stanless Steel
	Body	Stanless Stee/Brass(Nickel Plated)
	Base	PBT
LED Specl	Type	Dot lluminated(LED)
	Rated voltage	3V/6V/12V/24V/36V/110V/220V
	Life	40000 hours

waretproof push button illuminated push button waterproof button metal push button Switch
